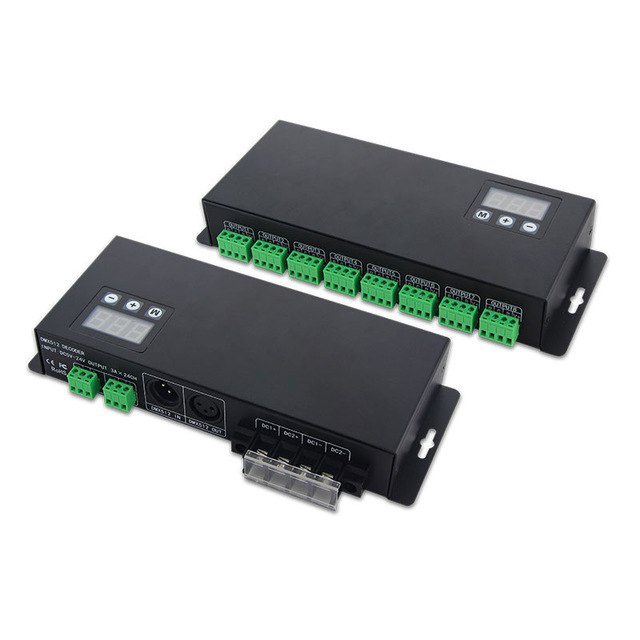

24CH Multi-Channel DMX512 Decoder for LED Lighting Show Project
Categories :
DMX controllerSKU :
1920186
100% original guarantee
Return within 30days
Worldwide Fast delivery
Summary:
24CH RGB DMX decoding driver works to convert universal DMX512/1990 digital signal to PWM signal, which is controlled by DMX512 console, with 256 levels grey scale output per channel. Adopting unique programming technology, creating exclamatory, perfect color fade & smooth effect, simultaneously let LED color more affluent.
Specifications:
Input voltage | DC12V~DC24V |
Max load current | 3A/CH*24 |
Max output power | 860W(12V), 1720W(24V) |
Input signal | DMX512/1990 |
Output DMX Channel | 24Ch CV PWM |
Output scale level | 256 levels |
Working temperature | -30℃～65℃ |

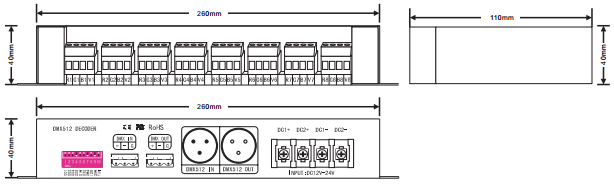

Product size | L260*W110*H40mm |
Details:

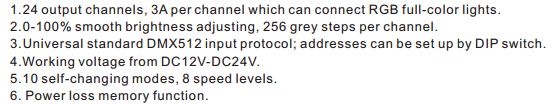

Basic Features:

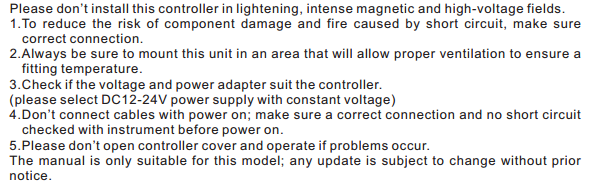

Safety Warnings:
Interface:
Conjunction Diagram:

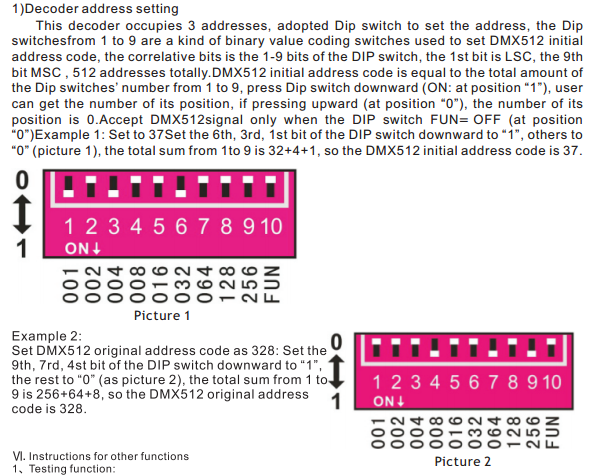

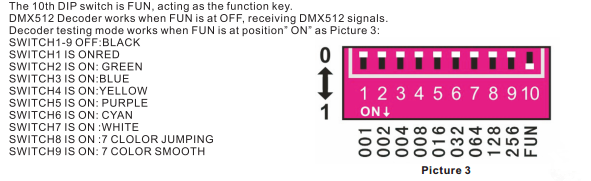

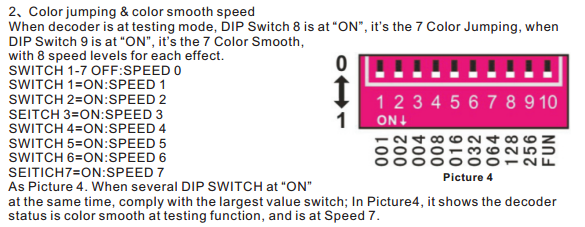

Operating instruction:

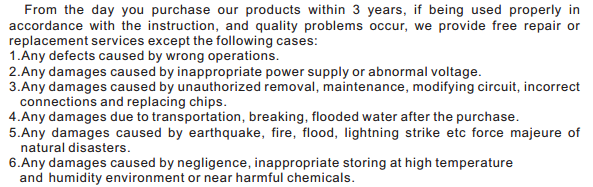

After-sales:
Kindly reminder:
No Specifications
