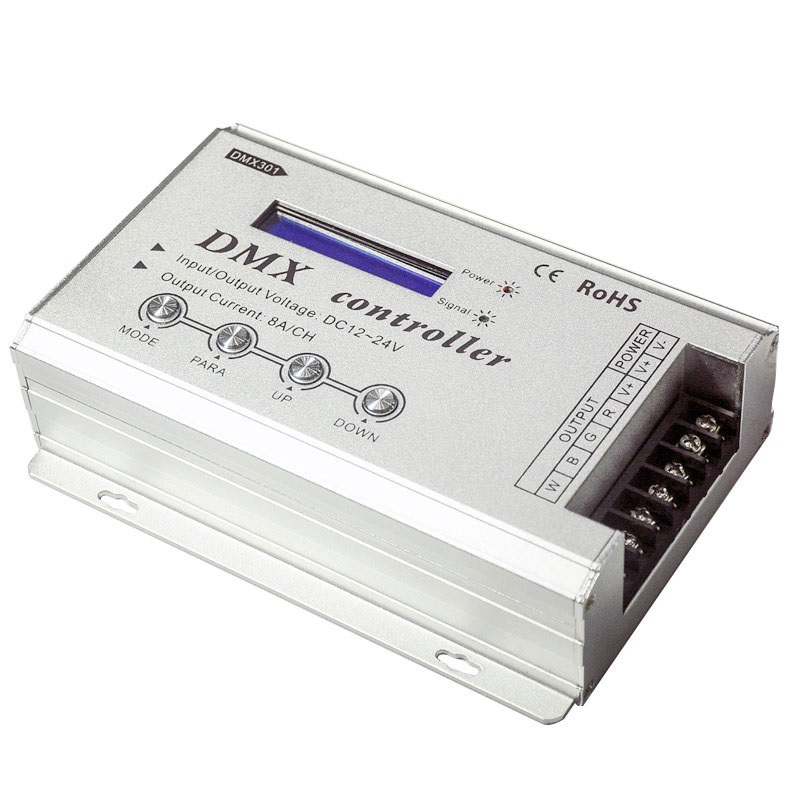

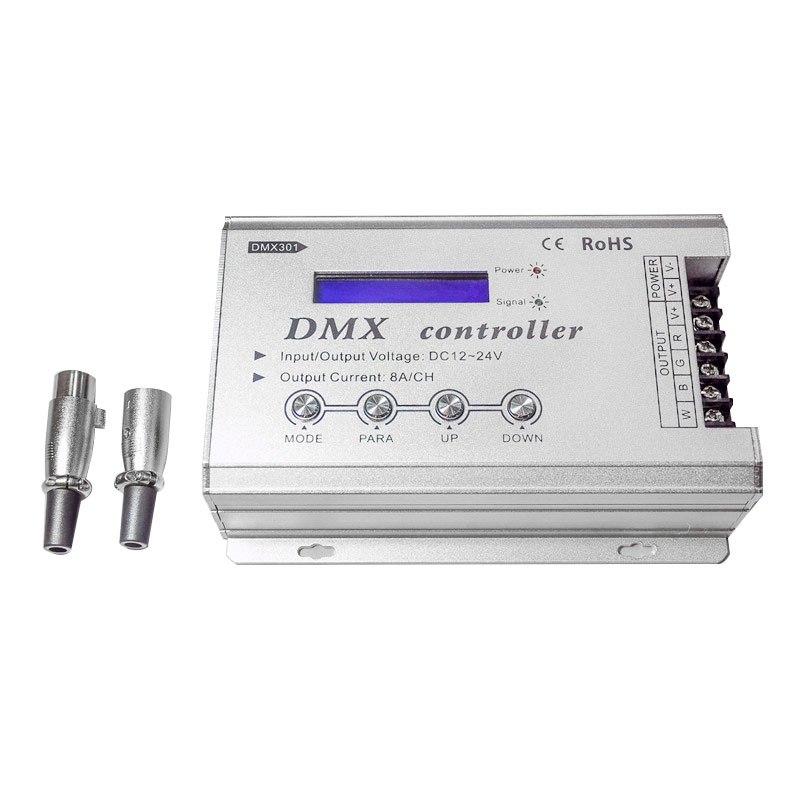

DC12-24V 8A/Channel Low Voltage LCD Display DMX Controller
Categories :
DMX controllerSKU :
1920188
100% original guarantee
Return within 30days
Worldwide Fast delivery
Summary:
Low-voltage DMX controller with LCD display is a kind of controller with LCD digital display interface, used for control the RGB color change of 4 line 3 channels(common anode) LED lamps and brightness change of one channel, up to 34kinds of change programs to choose, at the same time can accept DMX-512 international standard digital control. Controller can be stand-alone operation, automatically online, accept standard DMX512 console control signal etc. method to work. According to the customer's actual demand, can achieve jumpy changing, gradual changing, stroboscopic such change effect.
Specifications:
Supply voltage | DC12-24V |
Output | 4 channels |
Standby power consumption | <3.96<<<W |
Output current | <8A/each channel |
Max output power | 5V:<160W, 12V:<384W, 24V:<768w<768w<768w<768w |
Connection mode | common anode |
External dimension | L203 * W134 * H50 mm |
Package size | L255 * W155 * H60 mm |
Net weight & Gross weight | 0.59kg &0.75kg |

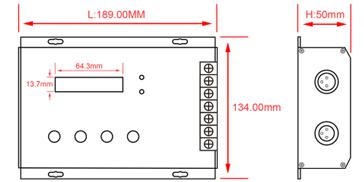

External Dimension:

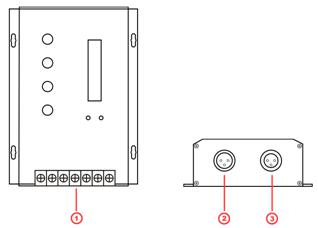

Interface instruction:
①fence type terminal ②XLR male port(input) ③XLR female port(input)

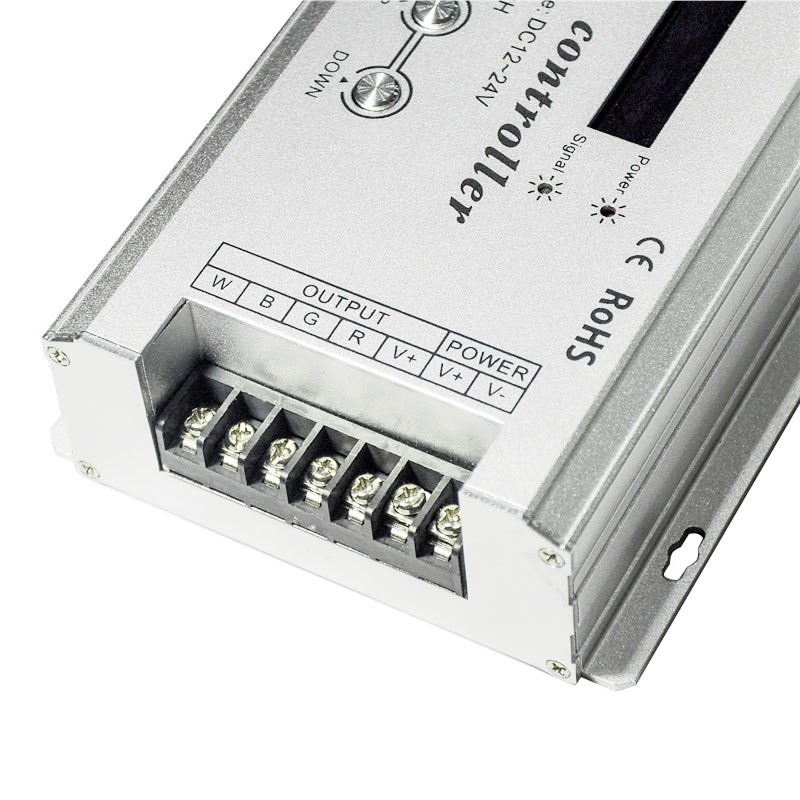

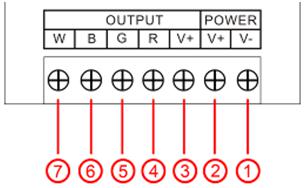

Fence type terminal with cover
①.Power supply negative pole
②.Power supply positive pole
③.Load output common positive pole
④.Load red output pole
⑤.Load green output pole
⑥.Load blue output pole

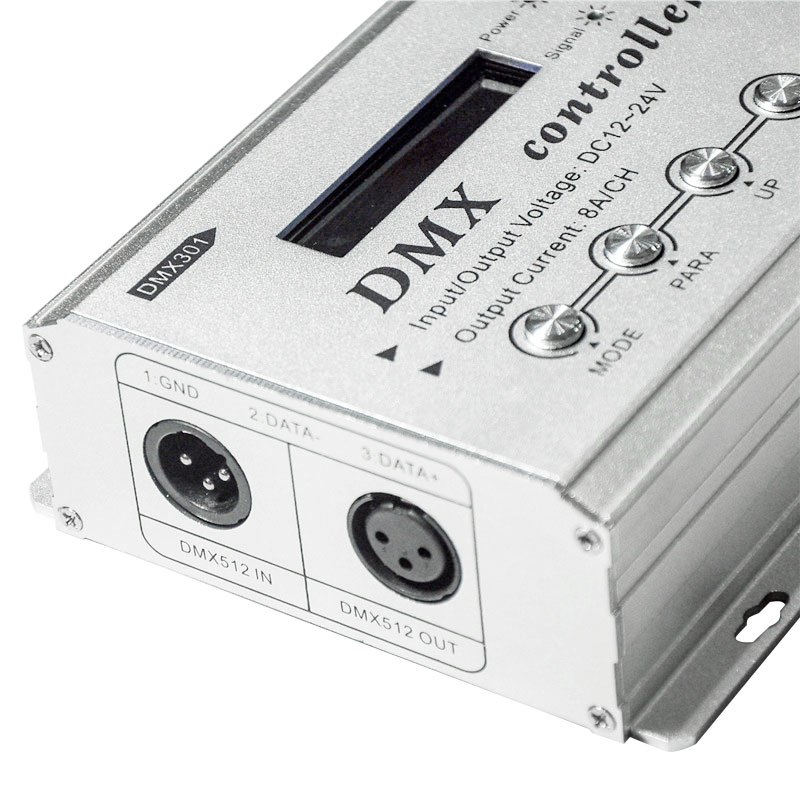

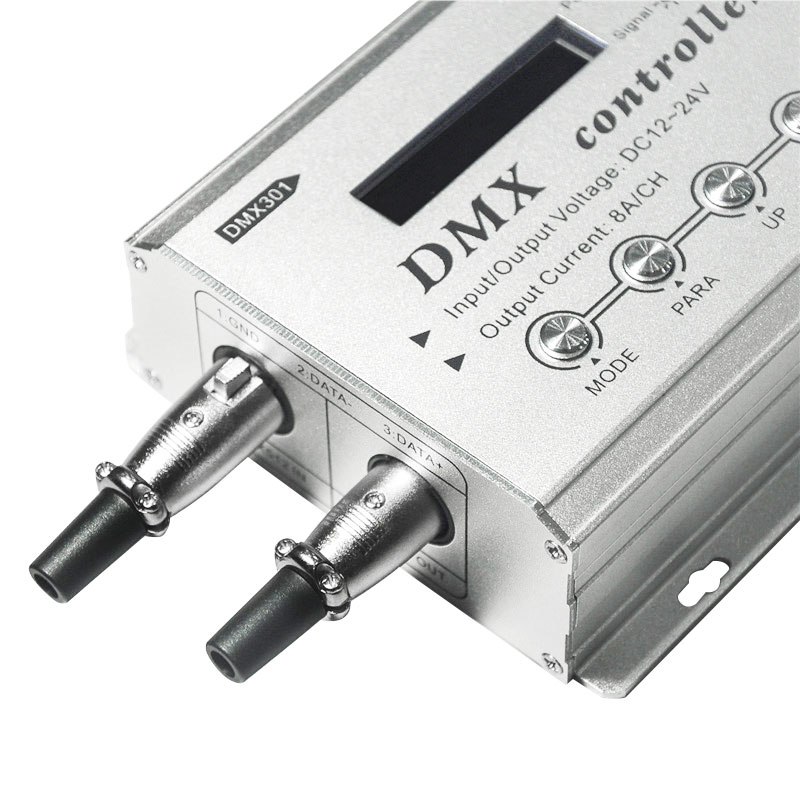

DMX XLR interface
Typical Application:

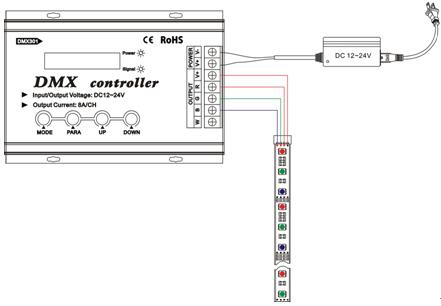

Typical application 1---do not have DMX function:

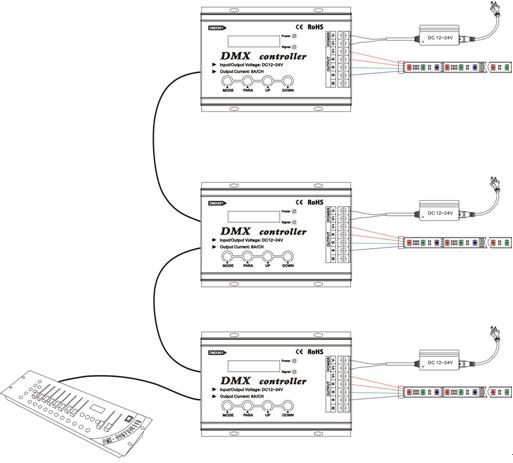

Typical application 2---with DMX function
