DC5V-36V DMX512 Wireless Transceiver Controller for LED Strip Light
Categories :
DMX controllerSKU :
1920187Summary:
DMX512 wireless transceiver, it is a powerful DMX512 wireless transceiver, which transmits the standard DMX512 protocol in the form of wireless transmission, replacing the long-time used cable transmission, no time delay in the process of data transmission, real-time and reliable, using 2.4G global open ISM frequency. It can be one emitter and one receiver, or several receivers (support point to point, point to multipoint), one emitter configurate several receivers, as long as the receiver and emitter set the same frequency. It is widely adapts the DMX512 controller manufactured by various suppliers. Total of 126 channels, it can be used in the same place individually of 126 groups of wireless network and none mutual interference.
Specifications:
Input voltage | DC5V-DC36V |
Transmission signal | DMX512 |
Operating frequency | 2.4GHZ ISM 126 scale frequencey |
Transmitting power | 20dBm |
Receive sensitivity | -96dBm |
Distance | 350m (depends on the weather and environment conditions) |
Working temperature | -20℃~55℃ |
Product size | L176*W46*H30mm |
Details:

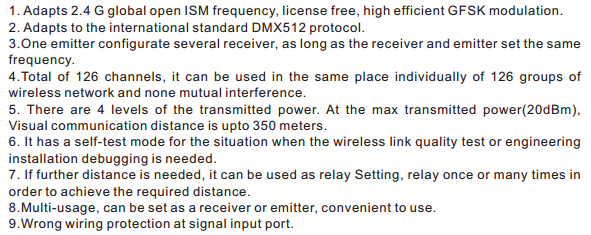

Basic Features:

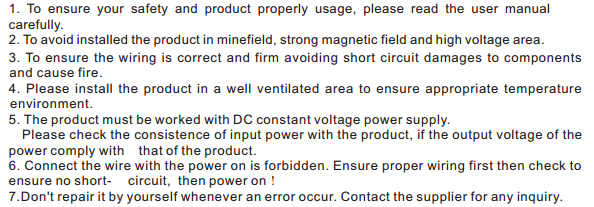

Safety Warnings:

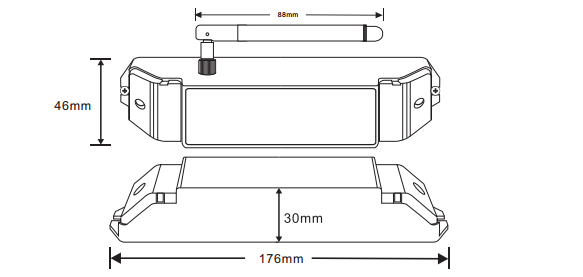

Dimension:

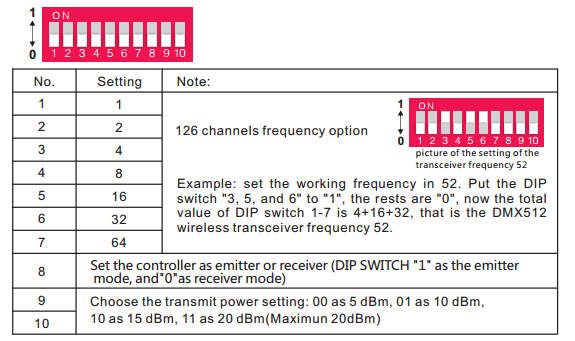

Operating instruction:

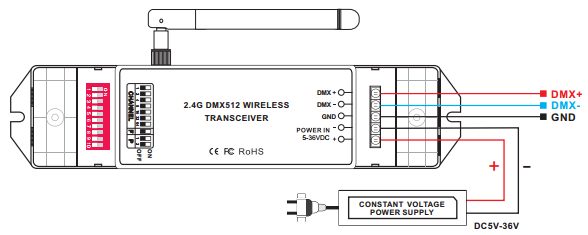

Conjunction Diagram:
System diagram:

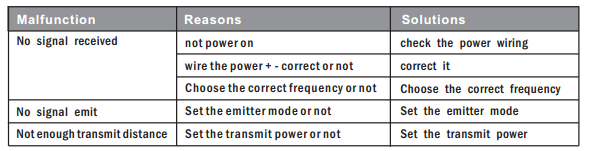

Exception handles:
After sales:

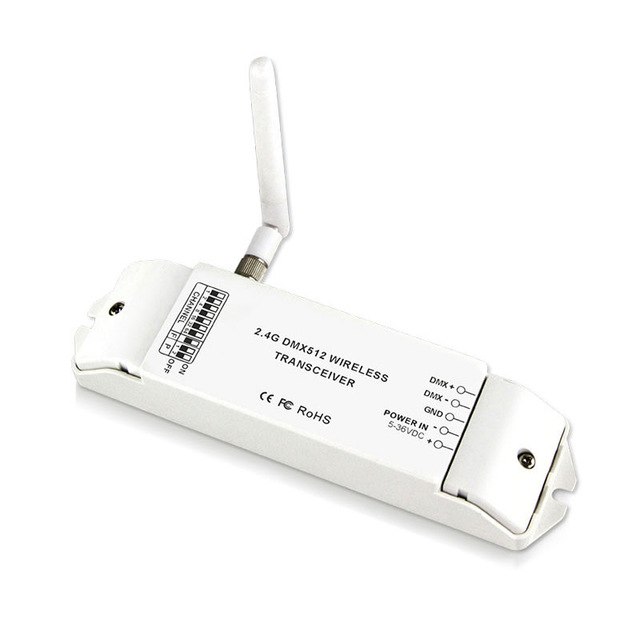

Photo for Product:
