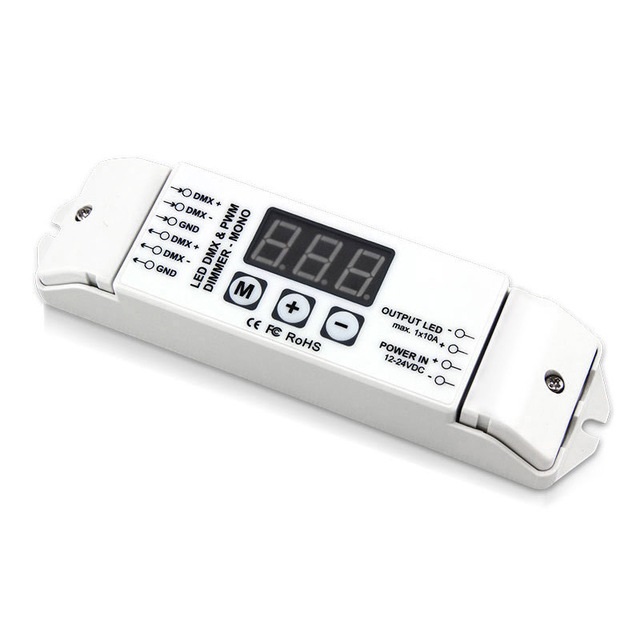

DC12V-DC24V 10A/CH*1 LED Strip Light Controller DMX512 Decoder
Categories :
DMX controllerSKU :
1920192
100% original guarantee
Return within 30days
Worldwide Fast delivery
Summary:
DMX512 constant voltage decoder which is developed only for constant voltage LED lamps. It adopted advanced micro-computer control technology to transfer standard DMX512/1990 signal to PWM signal, one channel output, max 10A output each channel, 4096 grey scales. It can be used as DMX512 master or as DMX decoder to connect computerized digital output consol with analog silicon case and controls LED lamps of architecture and lighting.
Specifications:
Input voltage | DC12V~DC24V |
Output current | 10A/CH*1 |
Max output power | 120W(12V), 240W(24V) |
Input signal | DMX512/1990 |
Output signal | Constant voltage PWM |
DMX512 socket | Terminal block |
Grey scale | 4096 levelsx1 |

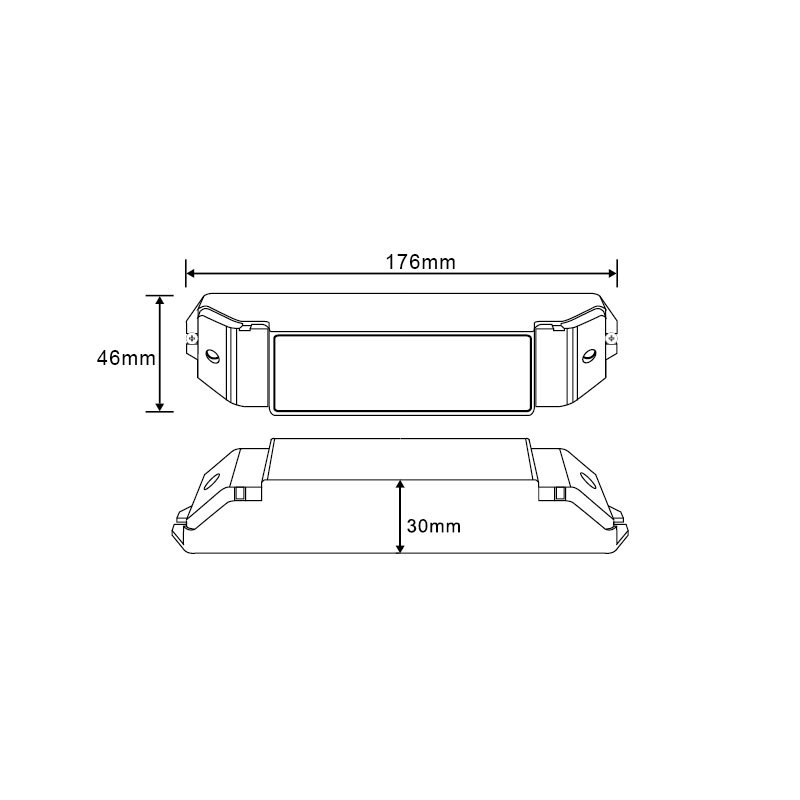

Product size | L176*W46*H30mm |
Details:

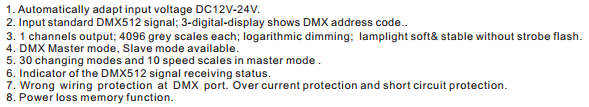

Basic Features:

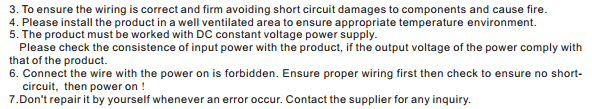

Safety Warnings:

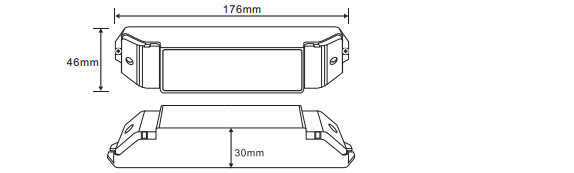

Dimension:

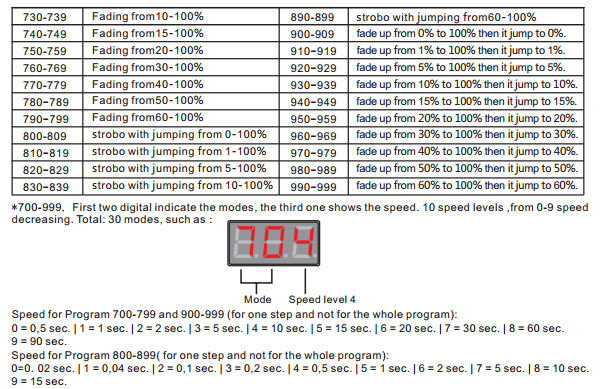

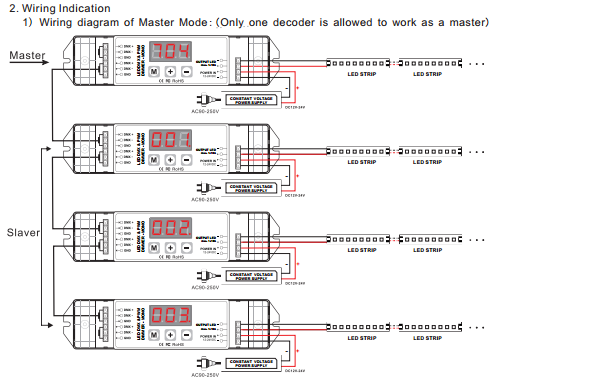

Operating instruction:

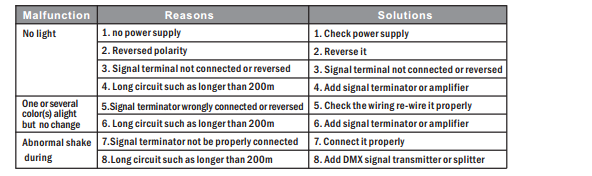

Exception handles:

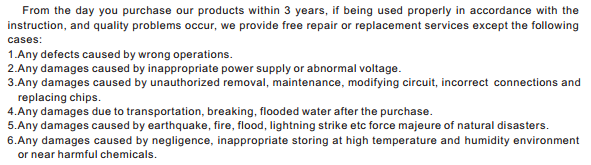

After-sales:
