AC100-240V 3*2A High Voltage DMX Controller w/LCD Display
Categories :
DMX controllerSKU :
1920190
100% original guarantee
Return within 30days
Worldwide Fast delivery
Summary:
High-voltage DMX controller with LCD display is a kind of controller with LCD digital display interface, used for control the RGB color change of 4 line 3 channels(common anode) LED lamps, up to 34kinds of change programs to choose, at the same time can accept DMX-512 international standard digital control. Controller can be stand-alone operation, automatically online, accept standard DMX512 console control signal etc. method to work. According to the customer's actual demand, can achieve jumpy changing, gradual changing, stroboscopic such change effect.
Specifications:
Supply voltage | AC100-240V(50Hz/60Hz) |
Dimming frequency | 800Hz |
Output connect way | common anode 4 line 3 channels |
Standby power consumption | <3.96<W |
Output current | 3*2A |
Max output power | 660W (input voltage 110V), 1320W (input voltage 220V) |
External dimension | L203 * W134 * H50 mm |
Package size | L310 * W170 * H60 mm |
Net weight & Gross weight | 0.77kg &1.22kg |
External Dimension:

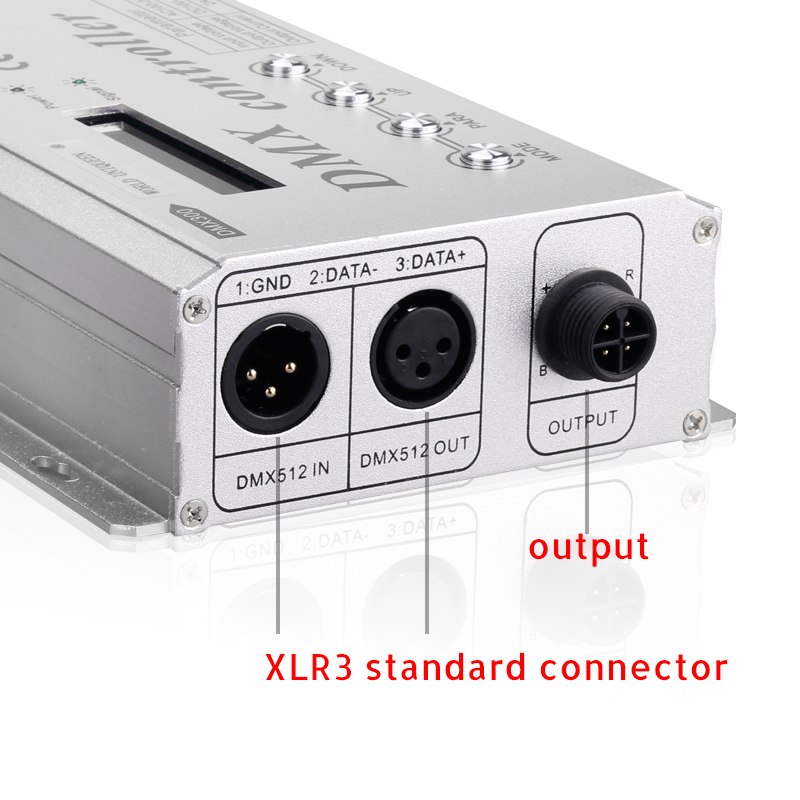

Interface instruction:
Typical Applications:
Typical application 1---do not have DMX function:
Typical application 2---with DMX function:
