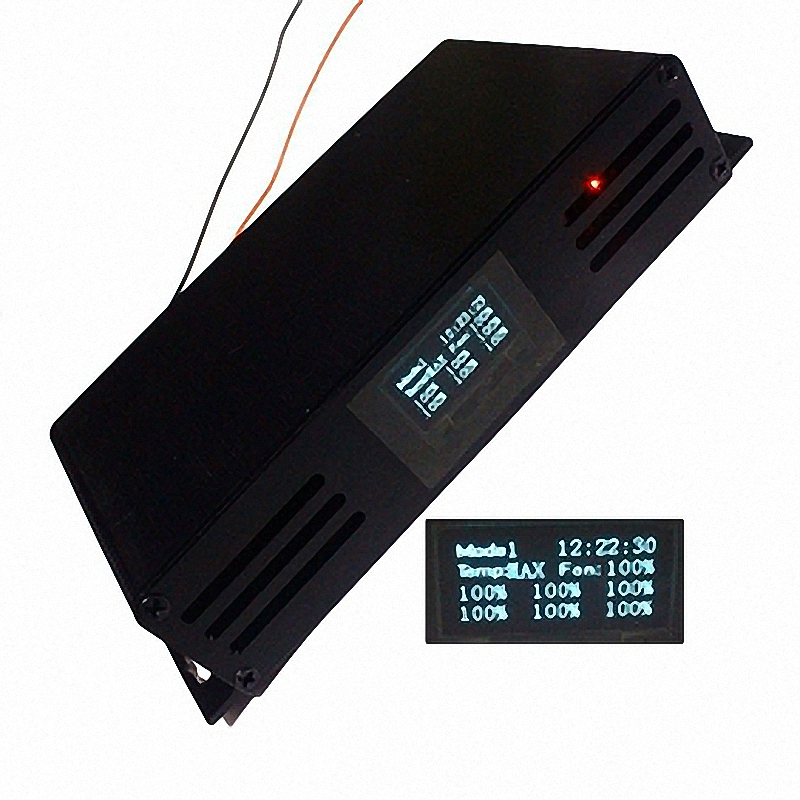

DIMFree-W8A 8 Channel LED Sunrise/Sunset Programmable Time Dimmer Controller WiFi Smart Phone Control
Categories :
DIMFree Programmable ControllerSKU :
1942693
100% original guarantee
Return within 30days
Worldwide Fast delivery
Description:
All in one DIMFree-W8A 8 channel output with (8 PWM independent signal + 6 or 8 Channel CCdriver + Temperature Sensor module + OLED)
Type A：
Dimmer+1-6Ch 700mA CC
Driver (For 6 Channels LED use only)
Type B：
Dimmer+1-2 Ch 1200MA + 3-6 Ch 700MA CC Drivers
Type C：
Dimmer+1-8 Ch 700MA CC Drivers (For 8 Channels use)
Type D：
Dimmer+1-2 Ch 1200MA + 3-8 Ch 700MA CC Drivers (For 8 Channels use)
The module includes(All assembled):
l 1 Wifi Dimmer module with 8 channels PWM signal output
l 6 or 8 channels constant current power module.
l 1 Fan Power module (Multi fans in parallel is supported 12V, 24Watt at max)
l 1 OLED display
l 1 Temperature Sensor module(Cable length: 15cm)

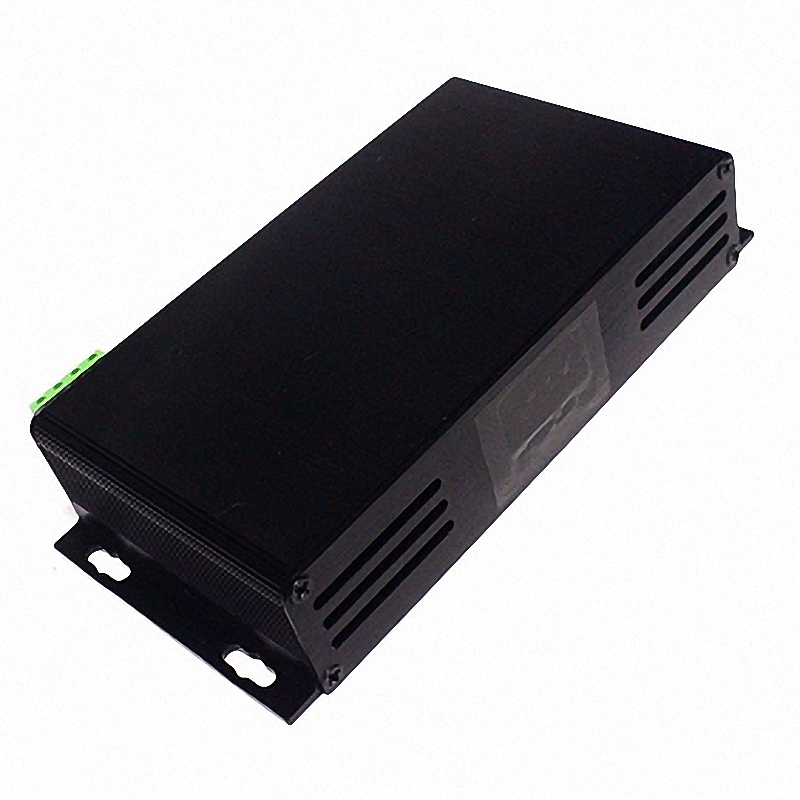

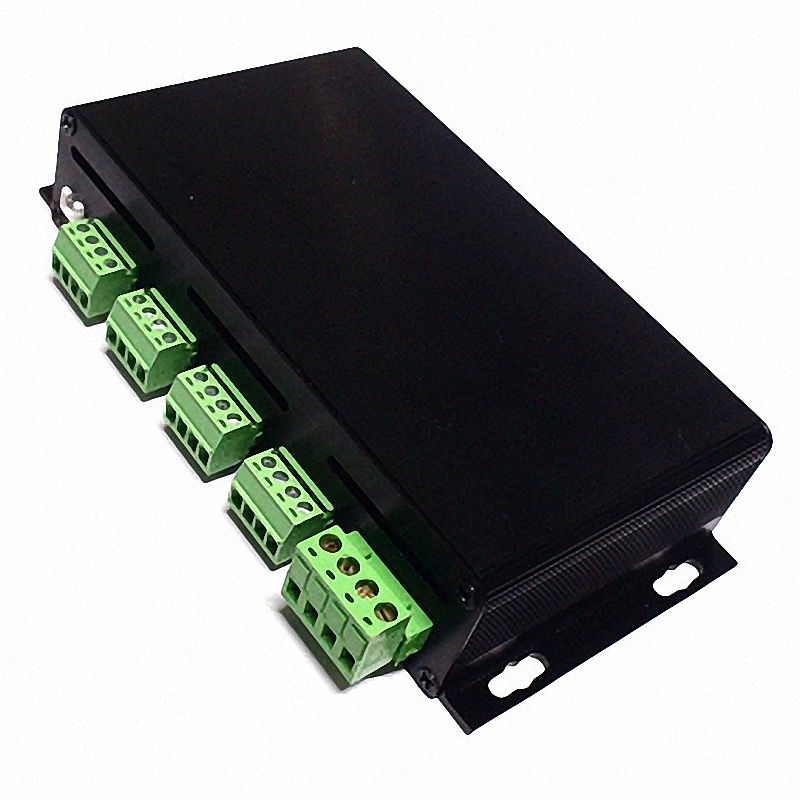

l 1 decent black aluminum enclosure

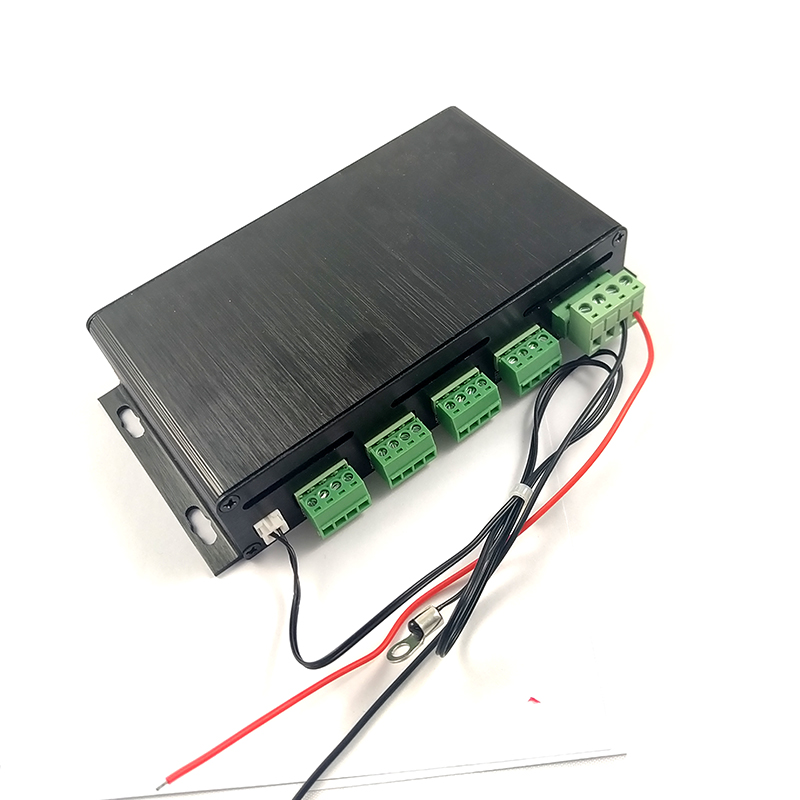

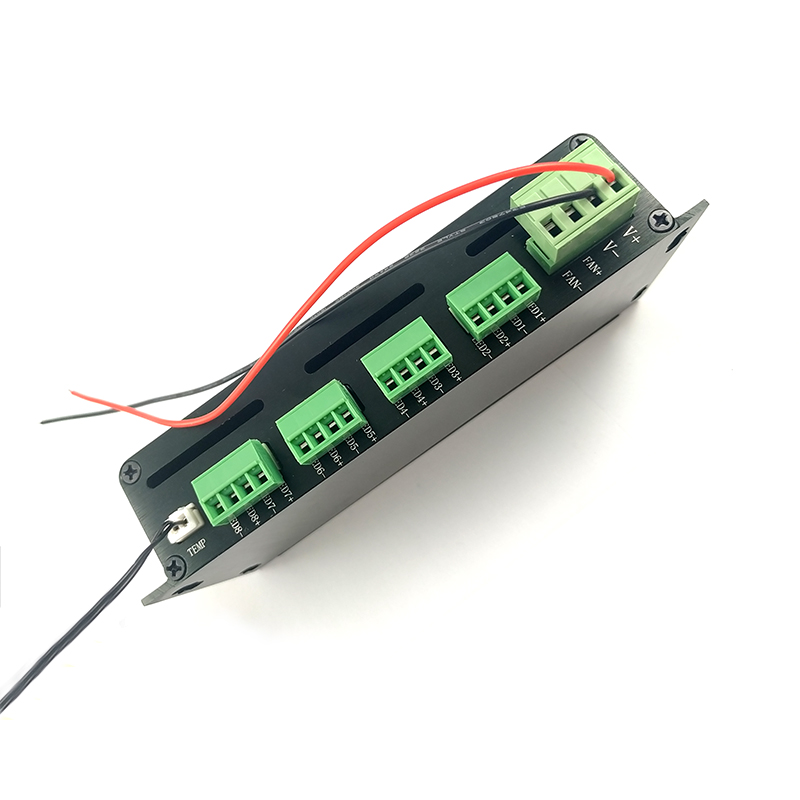

l All terminals for power, LED, Fan, Temp sensor easy connection.
Features:
l User Friendly Set up/Control App for PC, iOS as well as android smartphone, Multi device controllable.
l 1 channel power input terminal, 8 channels PWM output. No necessary soldering. All wires can be connected by terminal screws.

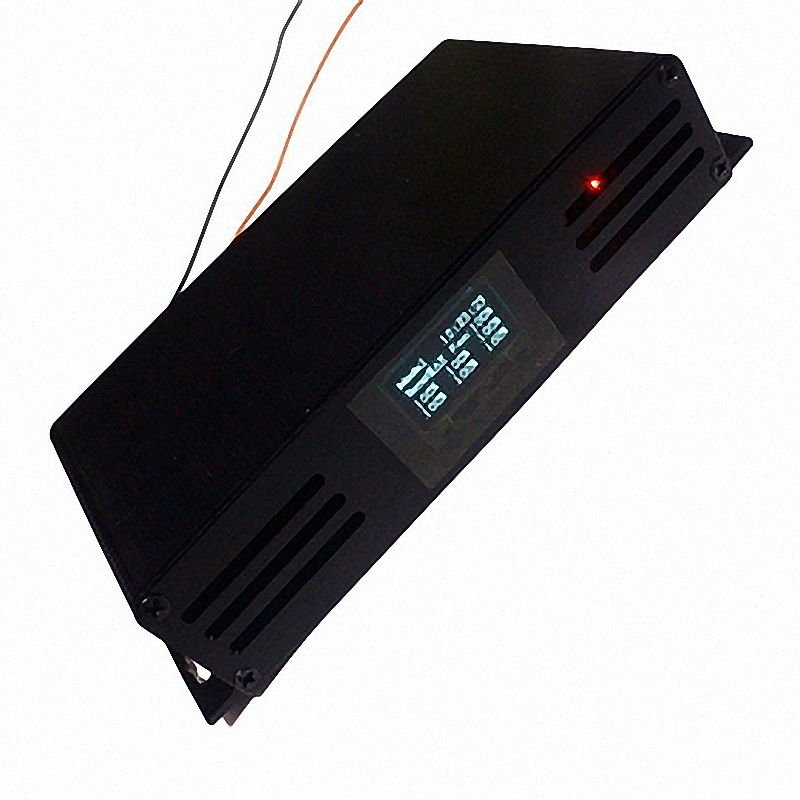

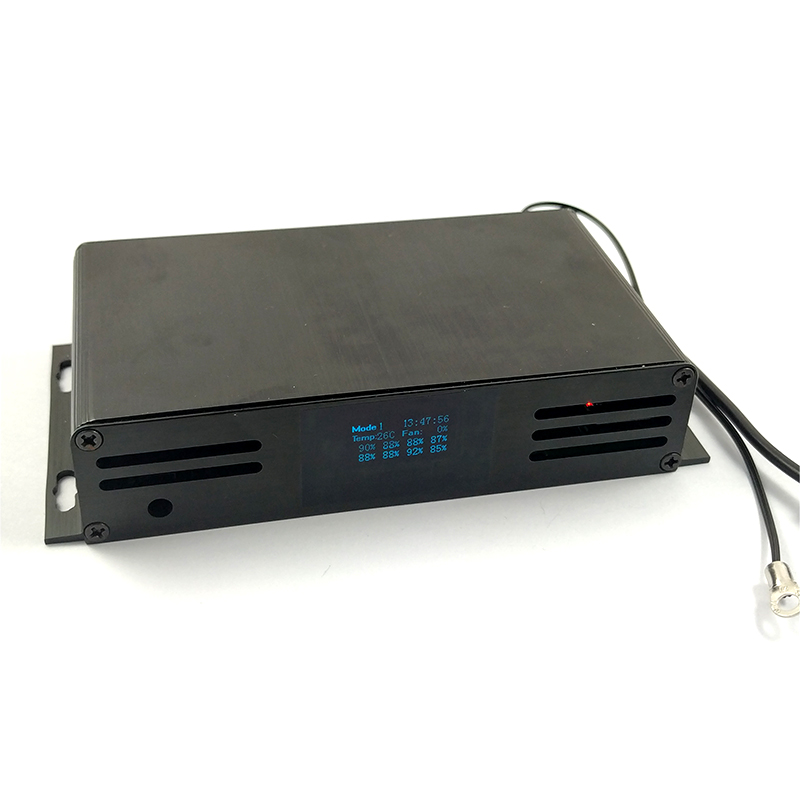

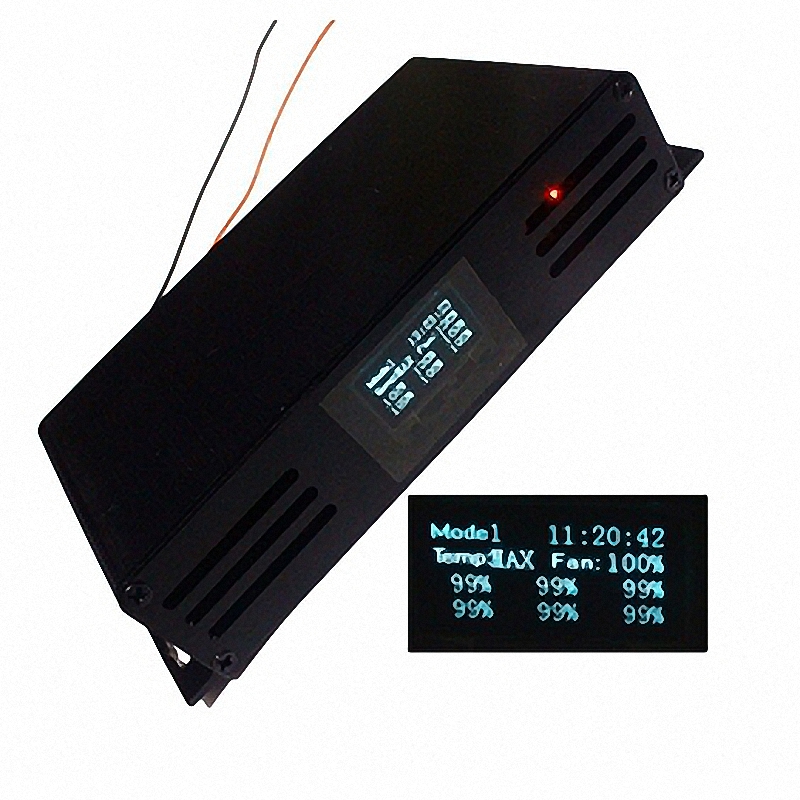

l Module with OLED display to show working status elegantly.
l Build in with High precision time chip, High performance processing chip and self-restoring fuse to make sure stable working.
l All input and output added isolation protection according to the industrial design, suitable for DIY beginner as well as Tech pro.
Parameters:
l Working voltage:15-36V
l Fan connection: 10 12Watt at max, Multi fans can be connect in parallel
l Dimming Frequency: up to 1280Hz
l Dimension: 100*49*8.3mm
l Temperature sensor cable length: 15cm
Downloads:
DIMFree Selection Table 10-31-2019 Android Single Controller APP - W8 Android Group Controller APP - W8GC Windows Setting Up APP W8 IPA APP for IOSPlease download iphone app from the following link:
iOS APP for single Dimmer control: https://itunes.apple.com/cn/app/w8/id1309412395?mt=8
iOS APP for Group Dimmers control: https://itunes.apple.com/cn/app/w8gc/id1386536073?mt=8
W8 Windows App Download:
W8 android App Download :
For initial start the language is Chinese. Currently it can not detect your system language. But you can switch to English by the following steps.
Now you will see the English interface
| Optional Type | Type A or Type B or Type C or Type D |
You may also like

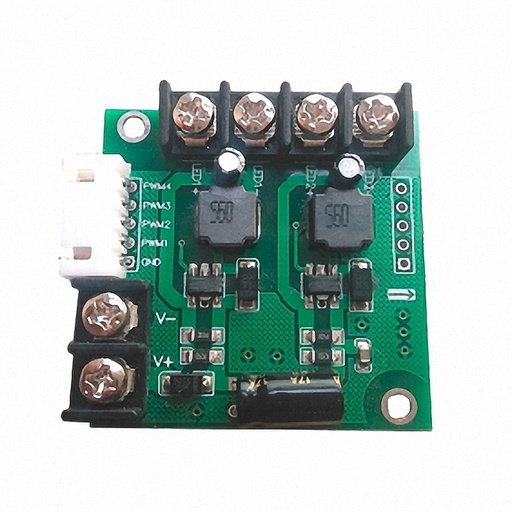

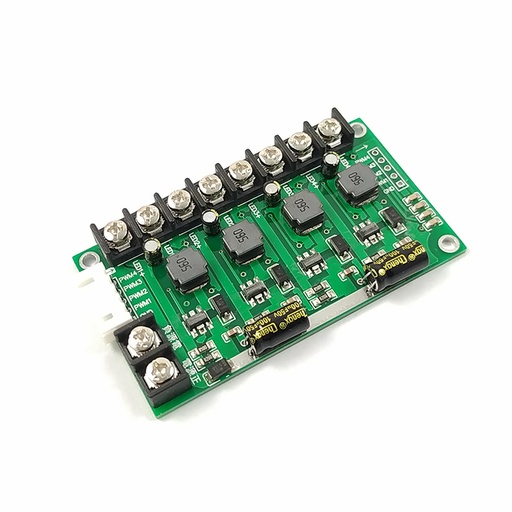

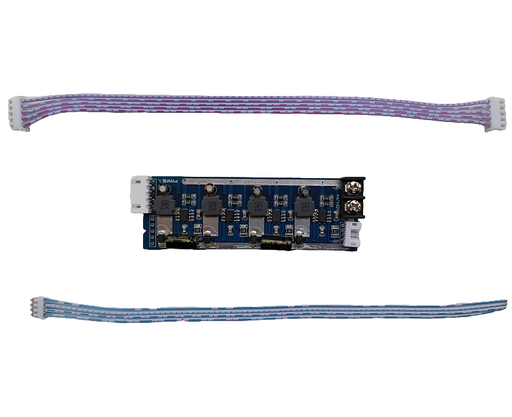

D4I Four Channel 700/1200mA Constant Current Driver for DIMFree
