DIMFree-W8I 8 Channel LED Sunrise/Sunset Programmable Time Dimmer Controller WiFi Android Control

https://www.satistronics.com/web/image/product.template/2246/image_1920?unique=fb4d6cf
(0 review)

90.78 90.78 USD 90.78

¥ 660.00

Not Available For Sale


    This combination does not exist.


    SKU :
    1930431
    Share :
    100% original guarantee
    Return within 30days
    Worldwide Fast delivery

    Description:

    DIMFree-W78I use W8 App. 8 channel output with 8 PWM independent signal.

    Please download iphone app from here:

    iOS APP for single Dimmer control: https://itunes.apple.com/cn/app/w8/id1309412395?mt=8

    iOS APP for Group Dimmers control: https://itunes.apple.com/cn/app/w8gc/id1386536073?mt=8



    For initial start the language is Chinese. Currently it can not detect your system language. But you can switch to English by the following steps.

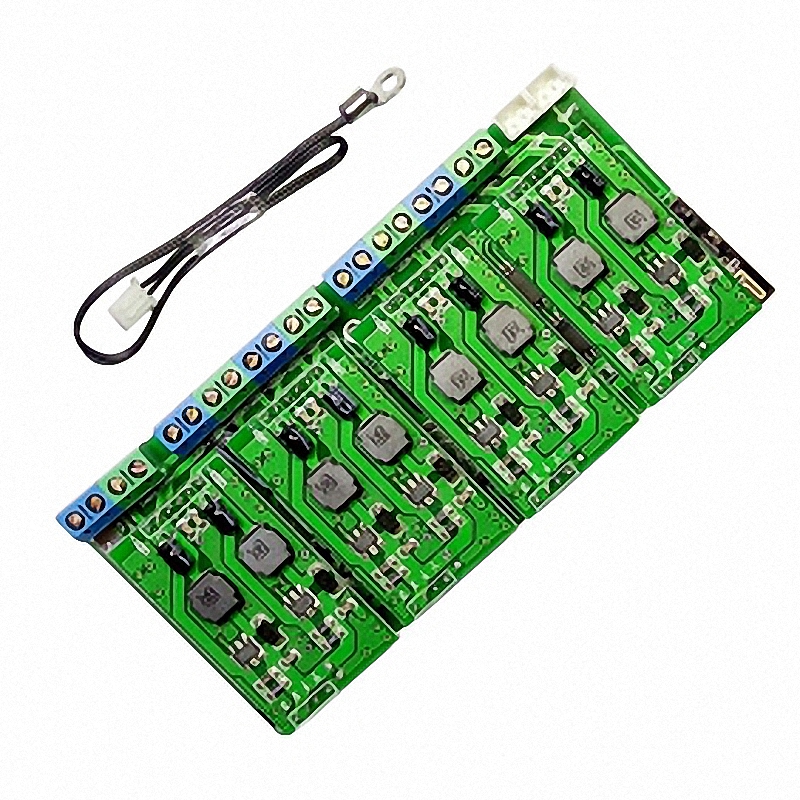

    The module includes:

    l  1 Wifi Dimmer module with 8 channels PWM signal output

    l 8 Channels constant current power module(1-8 Ch 700mA or 1-2CH 1200mA, 3-8CH 700mA).

    l  1 Fan Power module (Multi fans in parallel is supported 12V, 18Watt at max)

    l  2 Temperature Sensor module(Cable length: 15cm and 50cm each)

    l  All terminals for power, LED, Fan, Temp sensor easy connection.

    Features:

    l  User Friendly Set up/Control App for PC, iOS as well as android smartphone

    l  1 channel power input terminal, 8 channels Light source Terminal. No necessary soldering. All wires can be connected by terminal screws.

    l  Build in with High precision time chip, High performance processing chip and self-restoring fuse to make sure stable working.

    l  All input and output added isolation protection according to the industrial design, suitable for DIY beginner as well as Tech pro.

    Parameters:

    l  Working voltage:15-36V

    l  Fan connection: 12V 18Watt at max, Multi fans can be connect in parallel

    l  Dimming Frequency: up to 1280Hz

    l  Dimension: 127*57*18mm

    l  Temperature sensor cable length: 15cm and 50cm each

    DIMFree LED Controller Selection Table(PDF Download):



    No Specifications
