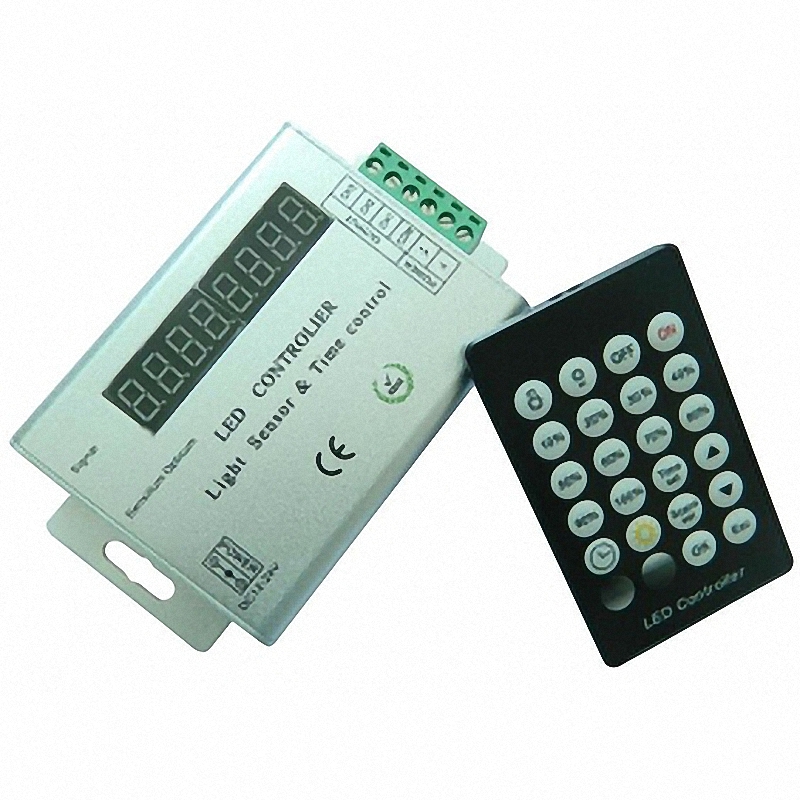

DC12V-24V Light sensor and time programmable led controller

Product Description:

The controller is adopted 8 digital tube to show the modes of time and work. It adopts PWM dimmer electric.It matches the precise clock clip which can control the brightness and darkness of the light according to the time .When present time is same as the predicted time , the light will change as previous brightness. You can set 5 scenes during the 24 hours one day. By optional sensor, the controller can autocatalytically adjust the brightness fo the light according to the brightness and darkness of the environment optical line.The controller can be used for the normal one.The controller works through the infrared remote controller, and operate easily.

Technical Parameters:

• Supply voltage:DC12~24V
• Output:3 circuit
• Output current:4A/ch
• Controller size:L122xW71×H25mm
• package size:L135×W80×H55mm
• Net weight:180g
• Gross weight:210g
• Static consumption:<0.24W
• Output power:12V≤144W;24V≤288W
• PWM signal class:256 level
• PWM signal frequency:325HZ
• Remote Control distance:>10M
• Time deviation:<5 seconds per month

External dimension:

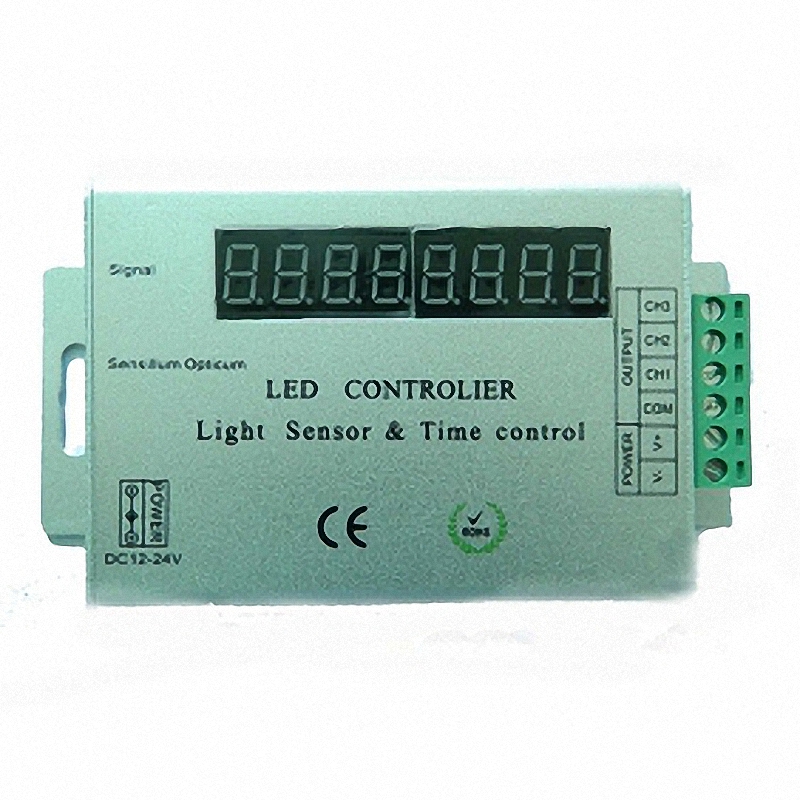

Controller size:

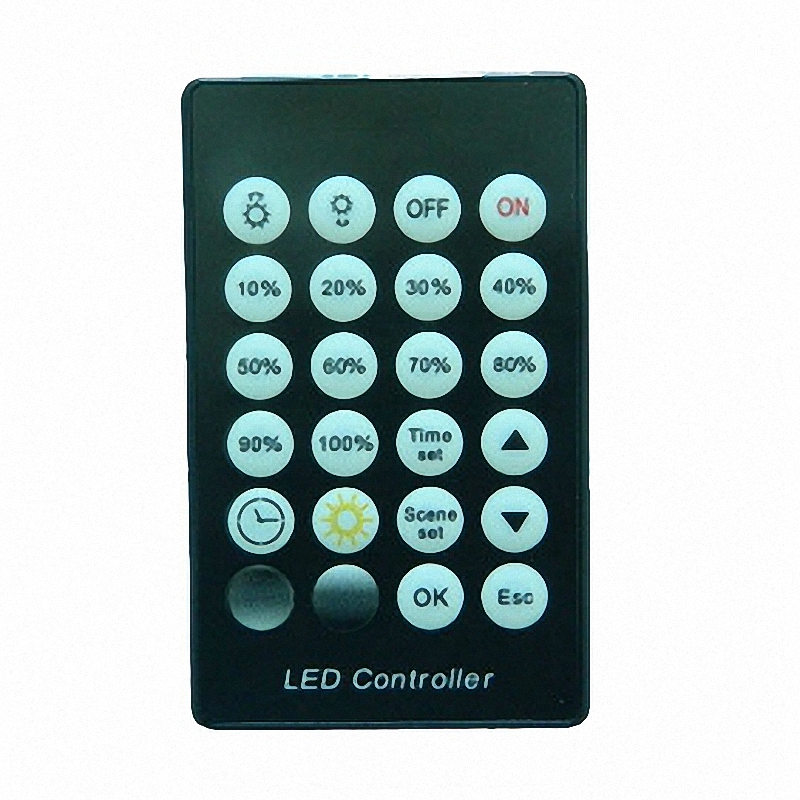

Remote size

Connection description:

Power input interface(port 1):

Adopt the 5.5x2.1mm DC connector seat

Power input interface (port2):

 Adopt the connector seat  with screw.

Infrared receiver interface and light sensor socket:

   Adopt built-in infrared receiver, external light sensor

 Load output interface:

 Remote function:
