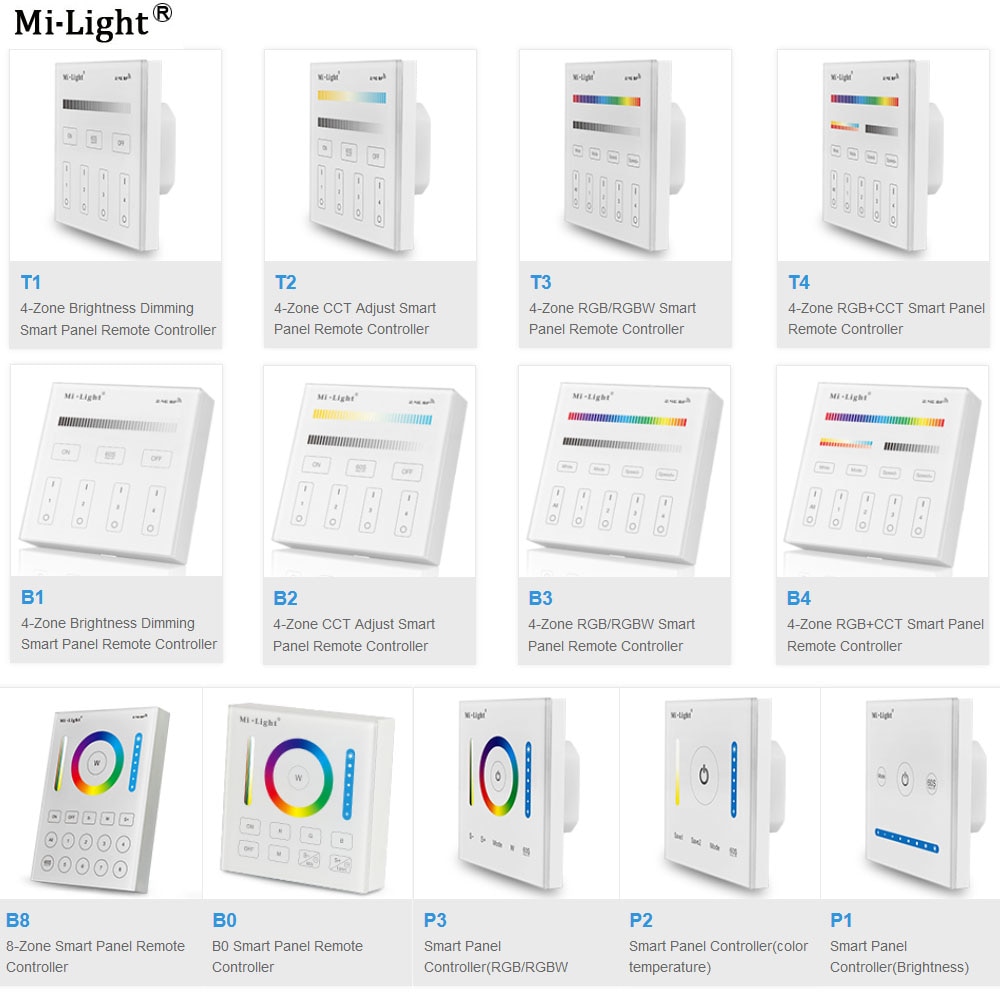

Milight T1/T2/T3/T4/B0/B1/B2/B3/B4/B8 LED Smart Panel Remote Strip Light Controller
Categories :
Mi-Light SeriesSKU :
1920369
100% original guarantee
Return within 30days
Worldwide Fast delivery
Product Name: B0 Smart Panel Remote Controller
Model No.: B0
Working Temperature: -20 -60℃
Voltage: 3V(2*AAA Battery)
Transmission Frequency: 2400-2483.5MHz
Modulation Method: GFSK
Transmitting Power: 6dBm
Standby Power: 20uA
Control Distance: 30m
Size: 86*20*86mm
NW:0.185KG
Product Name: 8-Zone Smart Panel Remote Controller
Model No.: B8
Working Temperature: -20 -60℃
Voltage: 3V(2*AAA Battery) / DC3.3V
Transmission Frequency: 2400-2483.5MHz
Modulation Method: GFSK
Transmitting Power: 6dBm
Control Distance: 30m
Standby Power: 30A
Panel Size: 106*146*20mm
Note: DC3.3V power only work on milight B8 smart panel controller
please don't use for the other products .
Technical Parameters:
Product Name: B1 4-zone Brightness Dimmer/B2 4-zone CCT/B3 4-zone RGB/RGBW/B4 4-zone RGB+CCT
Remote Controller
Model No: B1 B2 B3 B4
Working Temperature: -20 -60°
Voltage: 3V(2*AAA Battery) Not included
Transmission Frequency: 2400-2483.5MHz
Modulation Method: GFSK
Transmitting Power: 6dBm
Control Distance: 30m
Standby Power: 20uA
Panel Size: 86*86mm
Product Name: T1 4-zone Brightness Dimmer/T2 4-zone CCT/T3 4-zone RGB/RGBW/T4 4-zone RGB+CCT
Panel Remote Controller
Model No: T1 T2 T3 T4
Voltage: 3V(2*AAA Battery) Not included
Working Temperature: -20 -60°
Voltage: AC180~240V
Transmission Frequency: 2400-2483.5MHz
Modulation Method: GFSK
Transmitting Power: 6dBm
Control Distance: 30m
Panel Size: 86*86mm
Parameters
Model No:P1/P2/P3
DIM:Brightness Dimming Touch Panel Controller
CCT:Color Temperature Panel Controller
RGBW:RGB RGBW RGB+CCT Panel Controller
Working Temperature:-20-60C
Working Voltage:DC12-24V
Total Output Max:15A
Panel Size:L86*W86mm
Output Max:5A/Channel
Output Connection:Common anode
Weight:177g
Attention:
1.Please check the input voltage of the constant voltage power supply is in accordance with the controller,and please check the connection of both the cathode and anode.
2.The working voltage is DC12-24V,the controller will be broken if the vlotage is higher than 12-24V.
3.When installation,pls handle with care to avoid the broken of the glass panel.
|
| Part Number | P1 or P2 or P3 or B0 or B1 or B2 or B3 or B4 or B8 or T1 or T2 or T3 or T4 |
