Milight Smart Panel Led Controller Color Temperature CCT Dimming RGBW RGB CCT LED Touch Switch

https://www.qskj.cc/web/image/product.template/3638/image_1920?unique=a4fad64
(0 review)

$ 18.09 18.09 USD $ 18.09

¥ 132.00

Not Available For Sale

  • Part Number

This combination does not exist.

Contact Us
Categories :
Mi-Light Series
SKU :
1920351
Share :
Terms and Conditions :
100% original guarantee
Return within 30days
Worldwide Fast delivery

Parameters

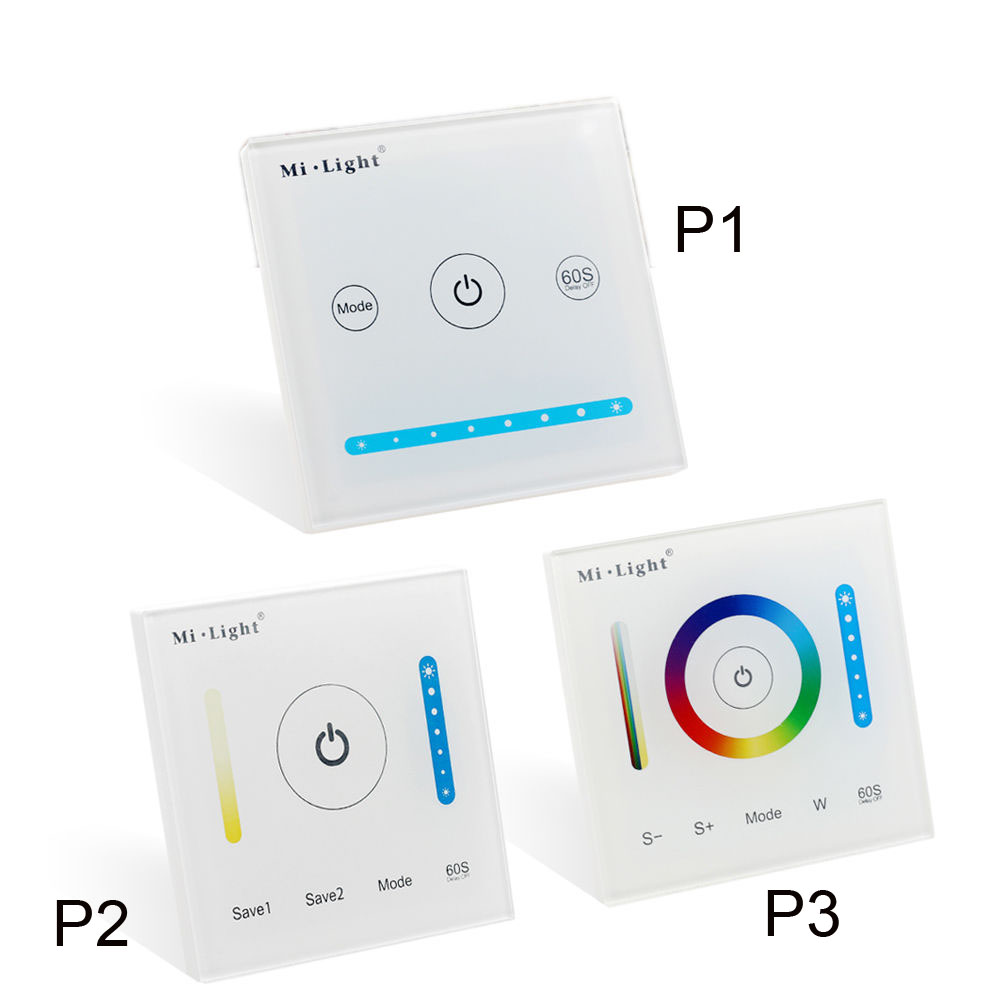

  • Model No:P1/P2/P3

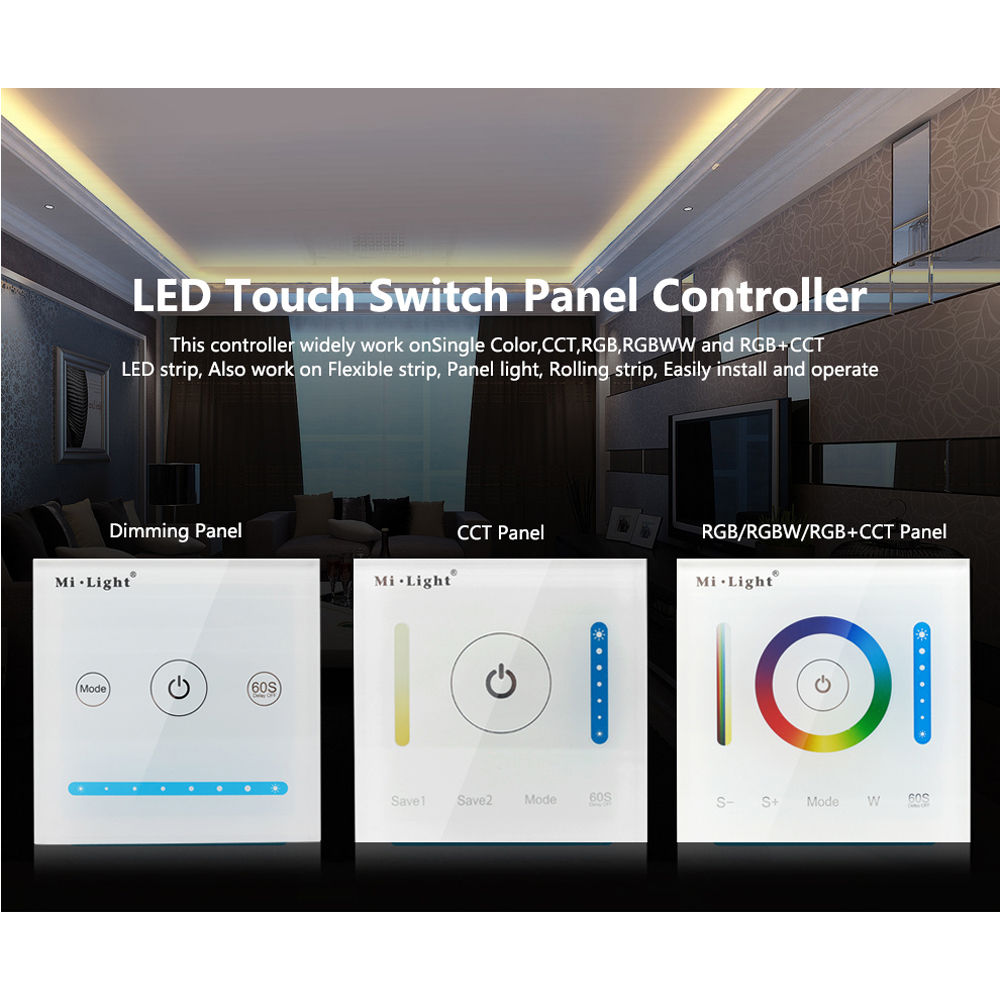

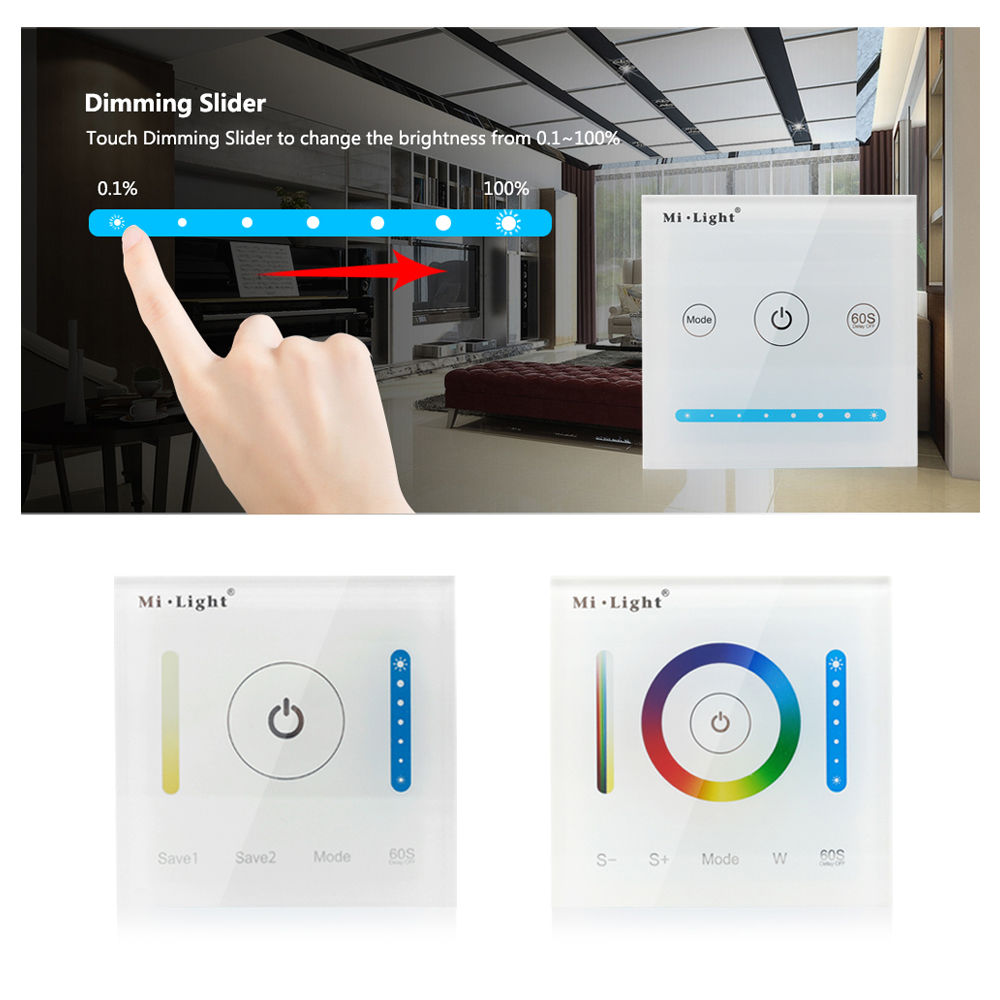

  • DIM:Brightness Dimming Touch Panel Controller

  • CCT:Color Temperature Panel Controller

  • RGBW:RGB RGBW RGB+CCT Panel Controller

  • Working Temperature:-20-60C

  • Working Voltage:DC12-24V

  • Total Output Max:15A

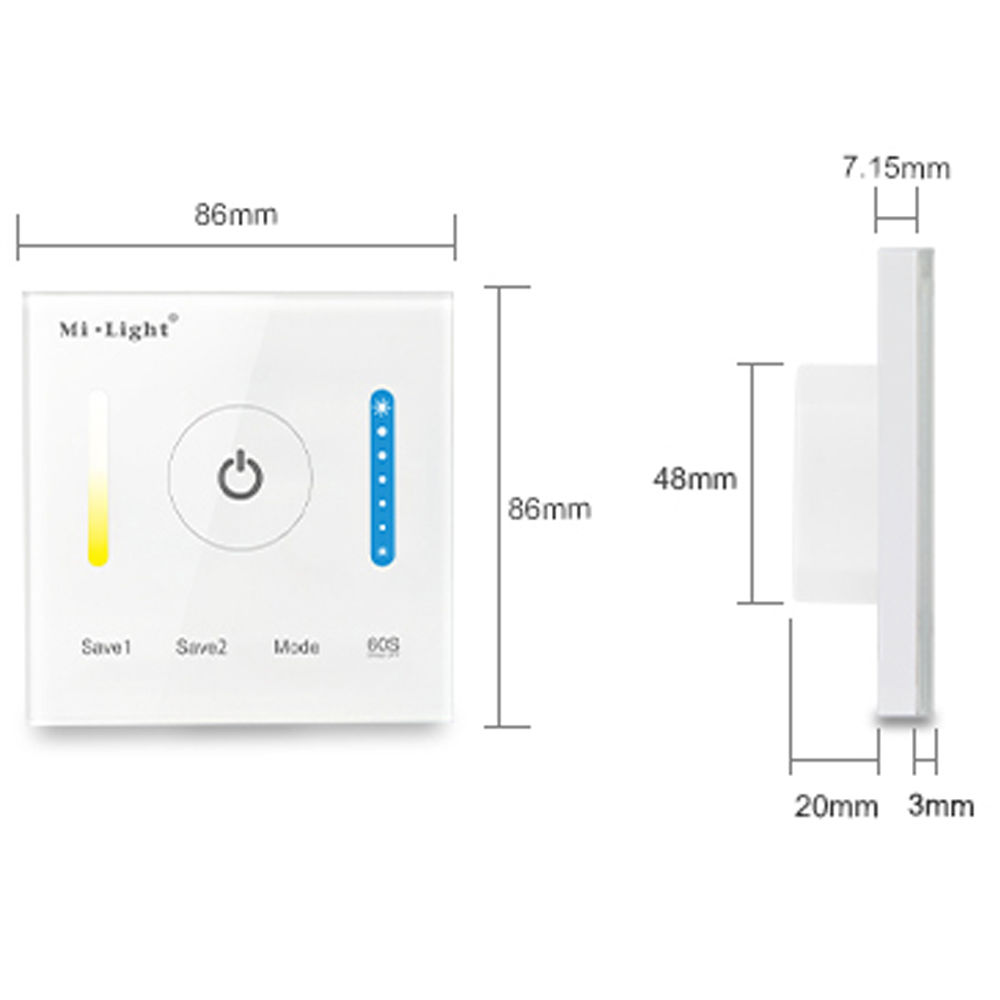

  • Panel Size:L86*W86mm

  • Output Max:5A/Channel

  • Output Connection:Common anode

  • Weight:177g

Attention:

  • Please check the input voltage of the constant voltage power supply is in accordance with the controller,and please check the connection of both the cathode and anode.

  • The working voltage is DC12-24V,the controller will be broken if the vlotage is higher than 12-24V.

  • When installation,pls handle with care to avoid the broken of the glass panel.

19we125267

1951215264

11481511345

Part Number P1 or P2 or P3
