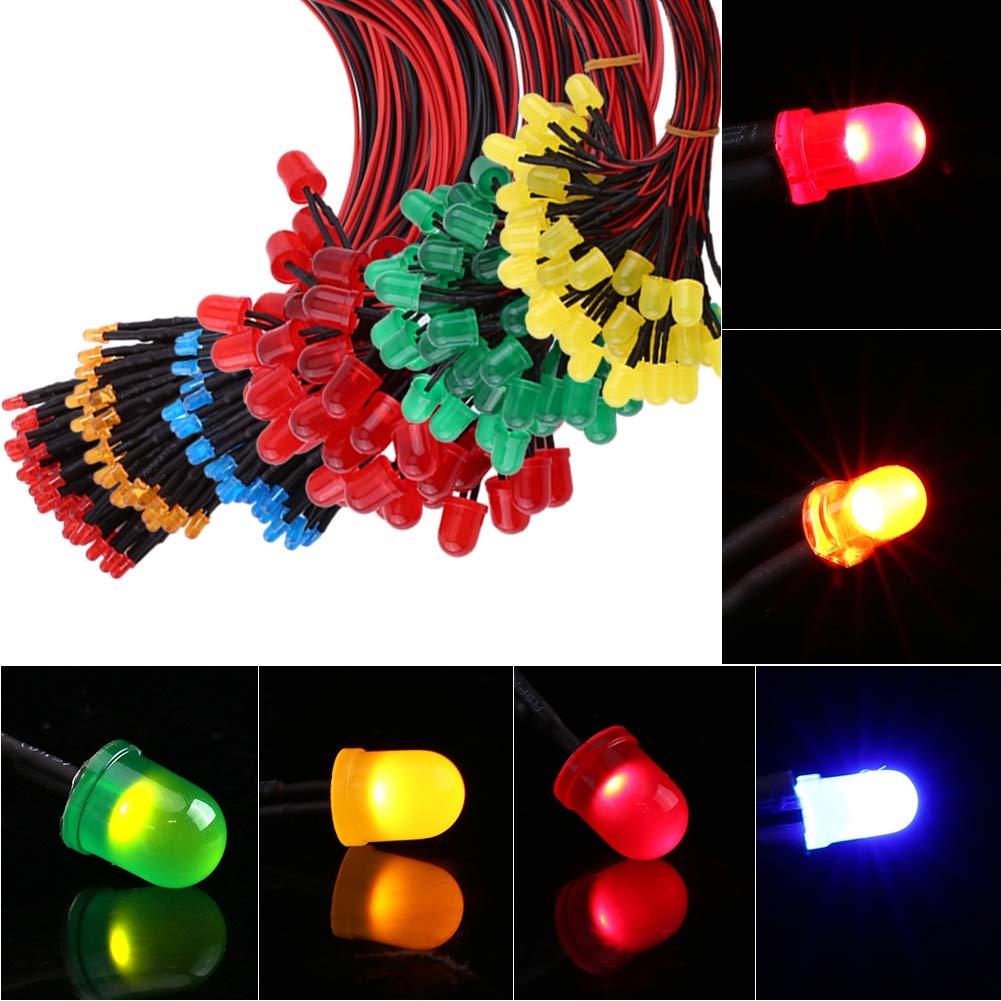

5mm F5 Pre-Wired LED Colored Lens Diffused lot(10 pcs)
Categories :
Pre-Wired LED LampsSKU :
1930078
100% original guarantee
Return within 30days
Worldwide Fast delivery
Specification:
Light Color: Red/Green/Blue/Yellow/White/Warm White/Orange
Lens Type: Colored Diffused
Voltage: 3-6V/12V/24V
Lead Length: Approx. 20cm
Lens Size: Approx. 5mm
Brightness: Color Various(See table below)
Wave Length: Color Various(See table below)
Viewing Angle: 120 degree
Parameters of all 5mm Round series:
5mm LEDs | Forward voltage | Dominant wavelength | Luminous Intensity | Viewing angle | |||||
Part number | Emitting Color | (V) IF=20mA | IF=20mA | (mcd) IF=20mA | |||||
TYP | MAX | MIN | MAX | TYP | MAX | (degree) | |||
| LED-5MMR | Red | 1.8 | 2.3 | 620 | 640 | 4000 | 5000 | 120 | |
| LED-5MMY | Yellow | 1.8 | 2.3 | 585 | 595 | 4000 | 5000 | 120 | |
| LED-5MMO | Orange | 1.8 | 2.3 | 620 | 630 | 4000 | 5000 | 120 | |
| LED-5MMB | Blue | 3.2 | 3.4 | 465 | 470 | 3000 | 5000 | 120 | |
| LED-5MMG | Green | 3.2 | 3.4 | 520 | 530 | 16000 | 18000 | 120 | |
| LED-5MMW | White | 3.2 | 3.4 | X=0.31 | Y=0.32 | 16000 | 20000 | 120 | |
| LED-5MMWW | Warm White | 3.2 | 3.4 | --- | --- | 13000 | 15000 | 120 | |
| LED-5MMP | Pink | 3.2 | 3.4 | X=0.35 | Y=0.37 | 3000 | 5000 | 120 | |
| LED-5MMUV | UV(Purple) | 3.2 | 3.4 | 400 | 410 | 1000 | 1500 | 120 | |
| Emitting Color | White or Red or Green or Blue or Yellow or Orange |
| Input Voltage | DC12V or DC24V or 3-6V |
