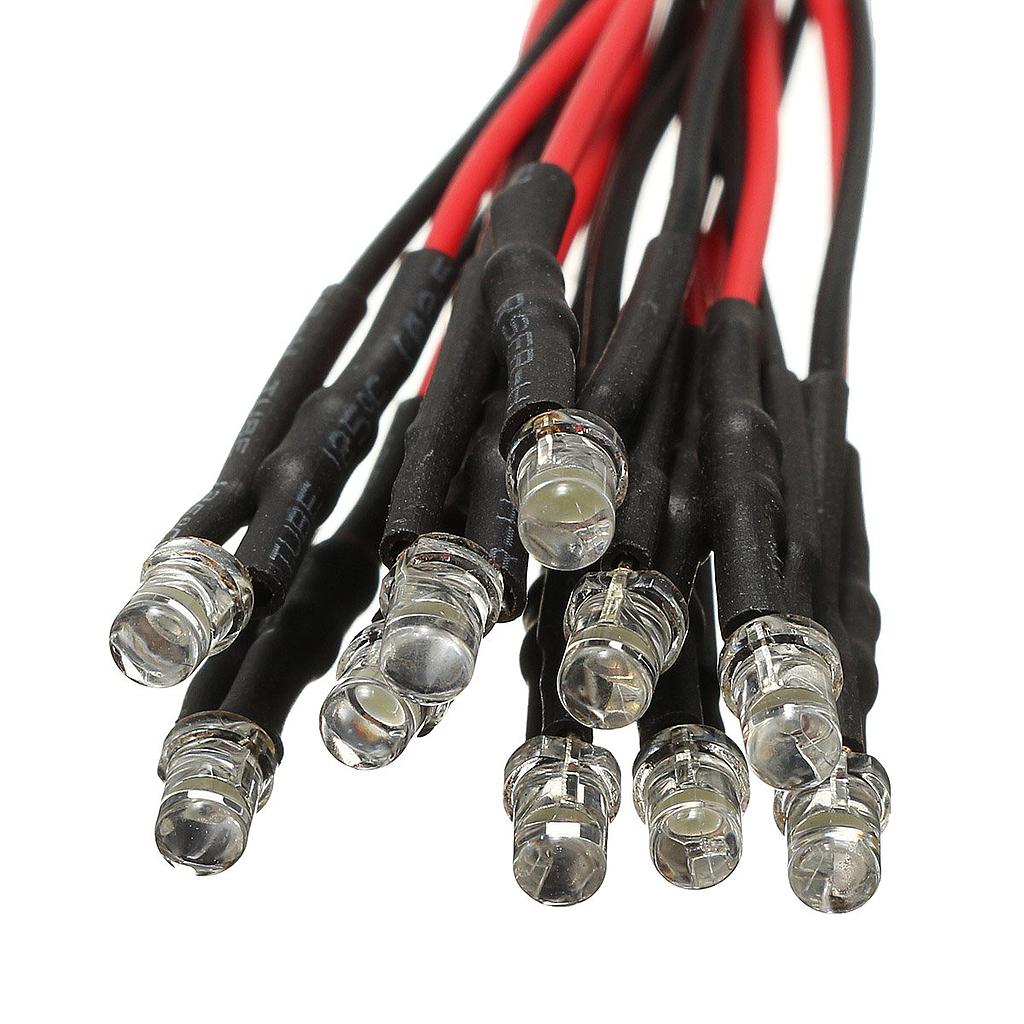

3mm F3 Pre-Wired LED 12V Water Clear Lens Flashing LED Diodes lot(10 pcs)
Categories :
Pre-Wired LED LampsSKU :
1930001
100% original guarantee
Return within 30days
Worldwide Fast delivery
Specification:

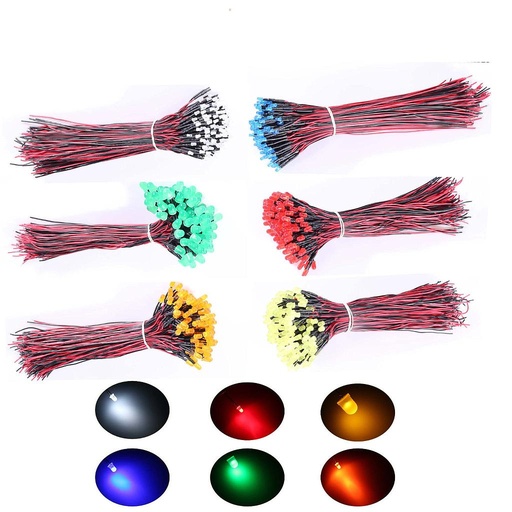

Light Color: Red/Green/Blue/Yellow/White/Warm White/Orange/RGBFast Flash/ RGB Slow Flash for choice
Lens Type: Water Clear
Voltage: 12V
Lead Length: Approx. 20cm/ 7.87"
Lens Size: Approx. 3mm/ 0.12"
Brightness: Color Various(See table below)
Wave Length: Color Various(See table below)
Viewing Angle: 120 degree
3mm Round LEDs (Diffused) | Forward voltage | Dominant wavelength | Luminous Intensity | Viewing angle | |||||
Part number | Emitting Color | (V) IF=20mA | IF=20mA | (mcd) IF=20mA | |||||
TYP | MAX | MIN | MAX | TYP | MAX | (degree) | |||
| LED-WR3MMR | Red | 1.8 | 2.3 | 620 | 640 | 2000 | 3000 | 20-30 | |
| LED-WR3MMY | Yellow | 1.8 | 2.3 | 585 | 595 | 2000 | 3000 | 20-30 | |
| LED-WR3MMYG | Yellow-green | 1.8 | 2.3 | 565 | 575 | 2000 | 3000 | 20-30 | |
| LED-WR3MMB | Blue | 3.2 | 3.4 | 465 | 475 | 3000 | 5000 | 20-30 | |
| LED-WR3MMG | Green | 3.2 | 3.4 | 520 | 530 | 8000 | 9000 | 20-30 | |
| LED-WR3MMW | White | 3.2 | 3.4 | / | / | 8000 | 9000 | 20-30 | |
| Emitting Color | White or Red or Green or Blue or Red/Blue or Red/Green or Orange or Pink or Purple or RGB Slow Flash or RGB Fast Flash |
