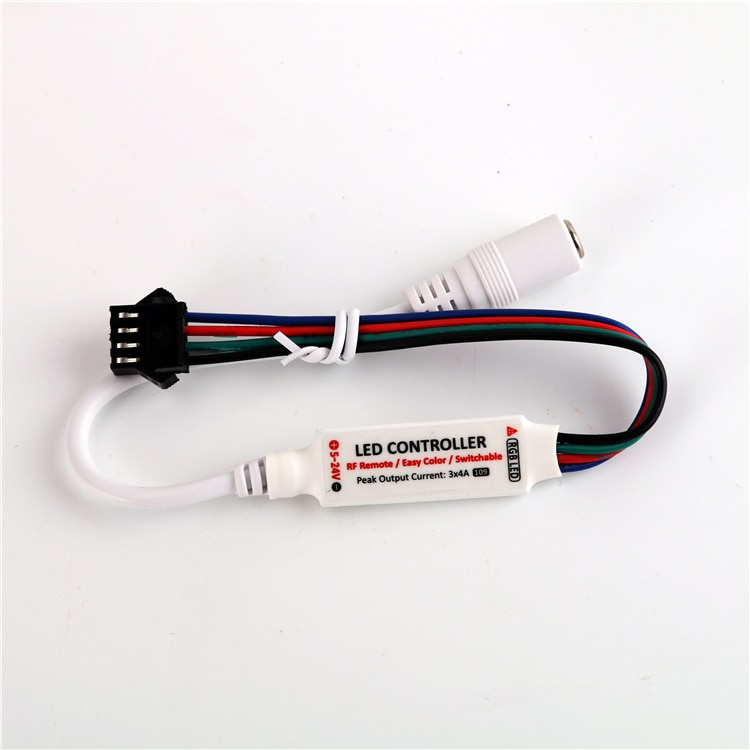

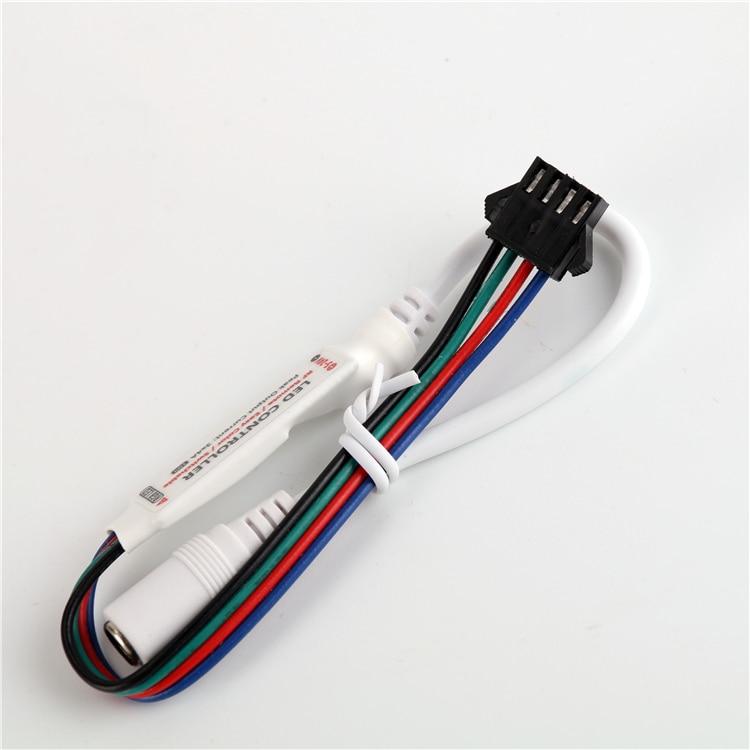

5-24V 4A*3CH RF Wireless RGB Mini Controller DC Female with Remote for LED Strip Light

Overview:

• This product is the accessory product for the LED Strip light RGB controller, used to control a variety of LED lighting as the light source brightness. With manual adjustment knob of remoter to adjust the lighting brightness, wiring convenient, simple and intuitive.

Specification:

• Working Voltage: 5-24V

• Power: 144W-12V, 288W-24V

• Current: 2A*3 CH

• Power Plug: 5.5mm DC Female

• Dynamic mode: 19 modes

• Static color: 20 colors

• 10 class brightness variation

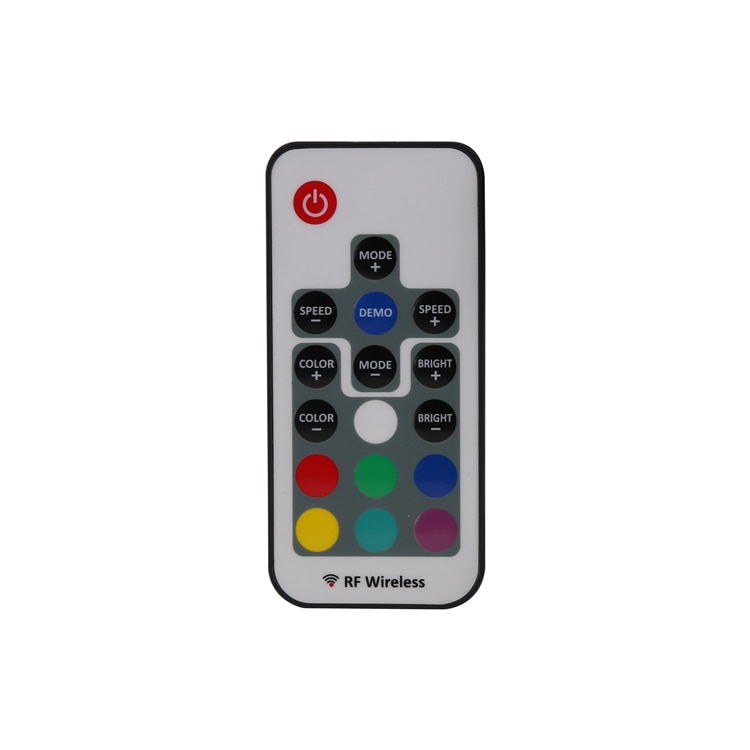

• Working with Remote

Installing:

1. Power supply:

• This unit accepts DC5V to 24V power supply. The DC jack’s inner pole (or red cable) is positive and sleeve (or black cable) is negative. Also please make sure the power supply voltage is same as the LED load.

2. LED output:

• This unit support common anode connection LED products. The mark “+” indicates the common connection node. The peak output current is 4 amperes and maximum constant current is 2 amperes per channel. Please reduce load if main unit is overheating.

Application:

• The input voltage of this controller should be follow the specifications, other high voltage would most probably destroy it

• Connect the mini controller and LED fittings as per the instruction

• Don’t peel off the label on the controller in case any indication information will be missed

• The standard warranty is 1year. Our company won’t be responsible for any damage of the Controller due to any wrong operation.

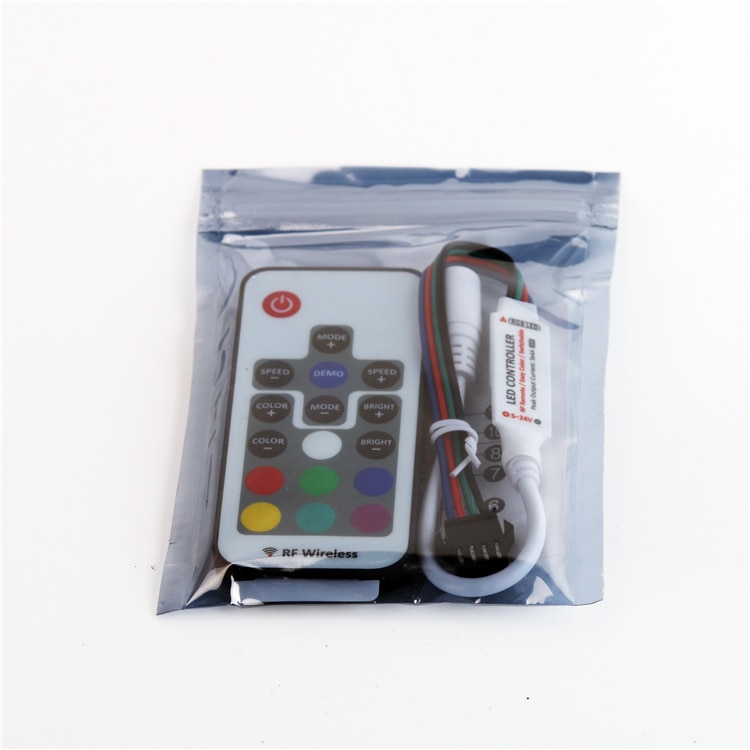

Package included:

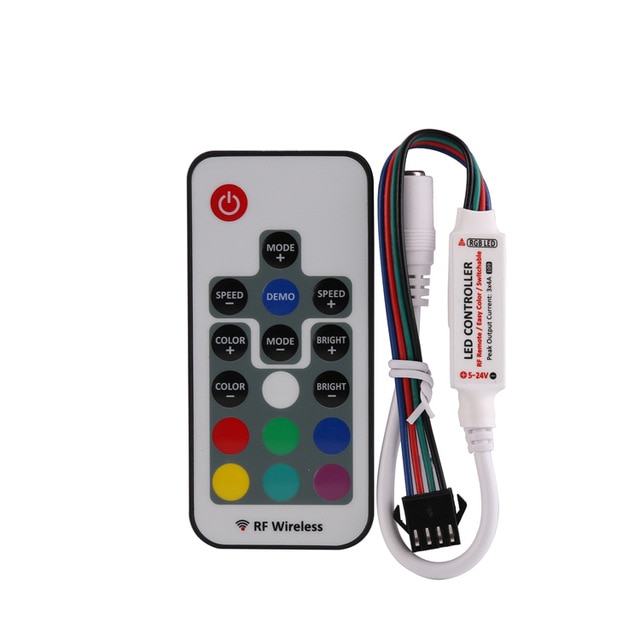

• 1 x Mini RGB led controller with RF remote control
