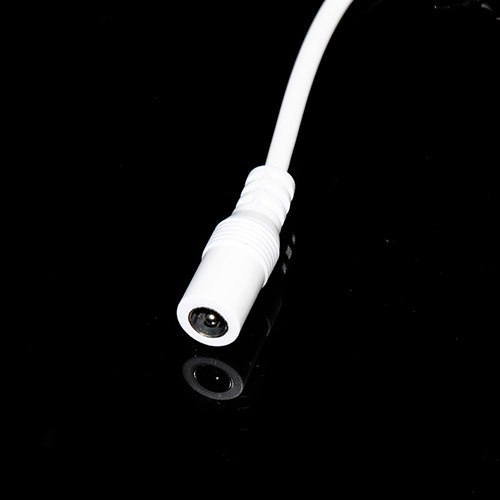

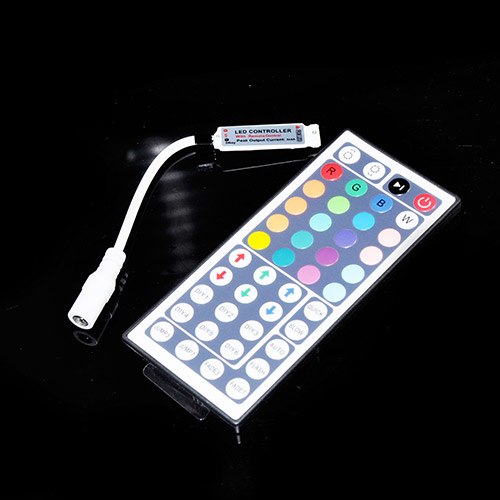

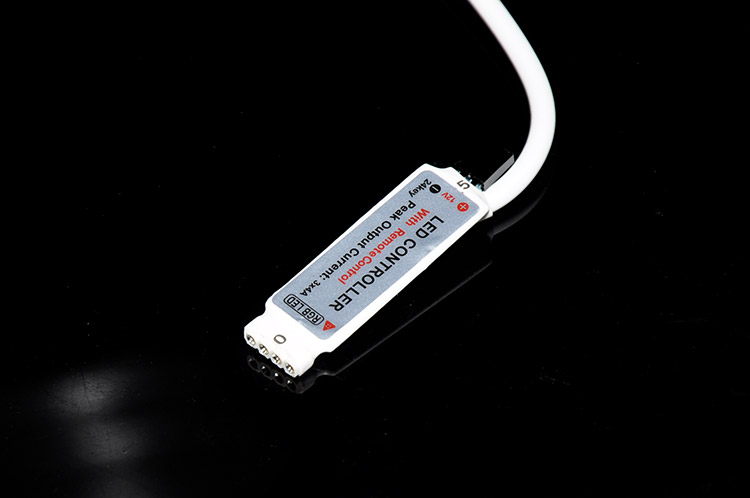

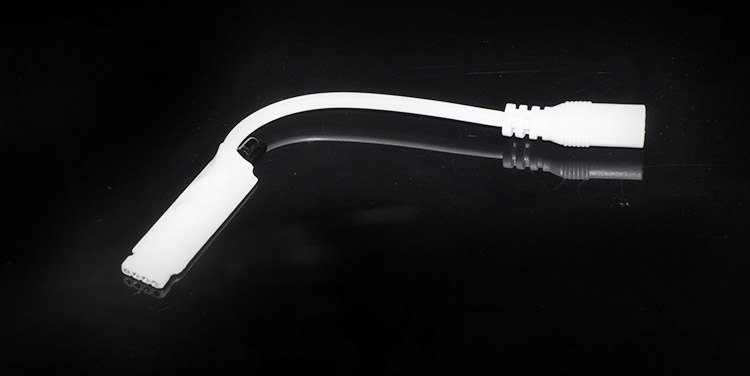

DC12V Mini LED RGB Controller DC Socket with 44 Keys IR Remote
Categories :
Mini LED ControllerSKU :
1920316
100% original guarantee
Return within 30days
Worldwide Fast delivery
I.specifications:
- Working temperature: -20 to 60 degree
- Supply voltage: DC12V
- Product size: L62*W35*H23mm

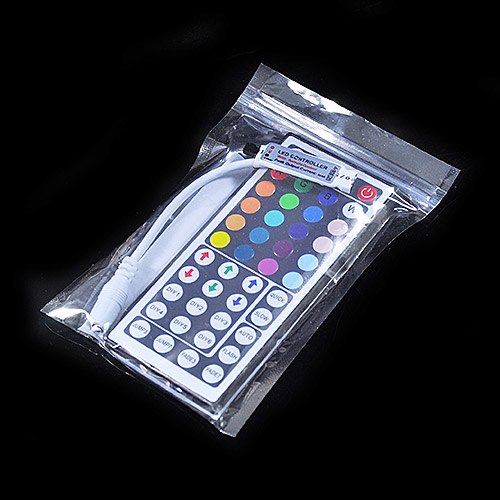

- Package size: L130*W60*H35mm
- Net weight: 60g
- Gross weight: 90g
- Output: Three CMOS drain-open output
- Connecting mode: common anode
- Max load current: 2A each colo
II.Control method:
Adopt IR remoter to control the led controller, which has 24 buttons, the function of each button as the table below:
Brightness rise | Brightness fall | Pause/Run | ON/OFF |
Static red | Static green | Static blue | Static white |
Static orange | Static light green | Static dark blue | Static mike white |
Static dark yellow | Static cyan | Static lyons blue | Static white pink |
Static yellow | Static light blue | Static purple | Static green-white |
Static light yellow | Static sky blue | Static brown | Static blue white |
Increase red | Increase green | Increase blue | Speed up |
Decrease red | Decrease green | Decrease blue | Speed down |
DIY key1 | DIY key2 | DIY key3 | Automatic change |
DIY key4 | DIY key5 | DIY key6 | Flash ON and OFF |
3 color jumpy change | 7 color jumpy change | 3 color fade change | 7 color fade change |
About DIY key, when it’s pressed first time, will enter the DIY color mode, you can adjust the color per the 6 keys at above to increase or decrease the R/G/B color by yourself freely( if other key is pressed this time, will jump out from DIY color mode). And you can save the color which you have adjusted by pressing the DIY key one again. When next time this key is pressed, it will show the color you saved last time.
There are 6 DIY keys, so you can save 6 color you like. They are all independent, have no effect each other. For example: if you press DIY key 1 first, and the npress DIY key2, DIY key1 will be invalid, until DIY key2 is pressed onece again, current color will be saved.
III. Warning:
- supply voltage of this product is DC12V, never connect to DC24V or AC220V
- never connect two wires directly in case of short circuit.
- Lead wire should be connected correctly according to colors that connecting diagram offers.
- Warranty of this product is one year, but exclude that artificial situation of damaged or overload working.
