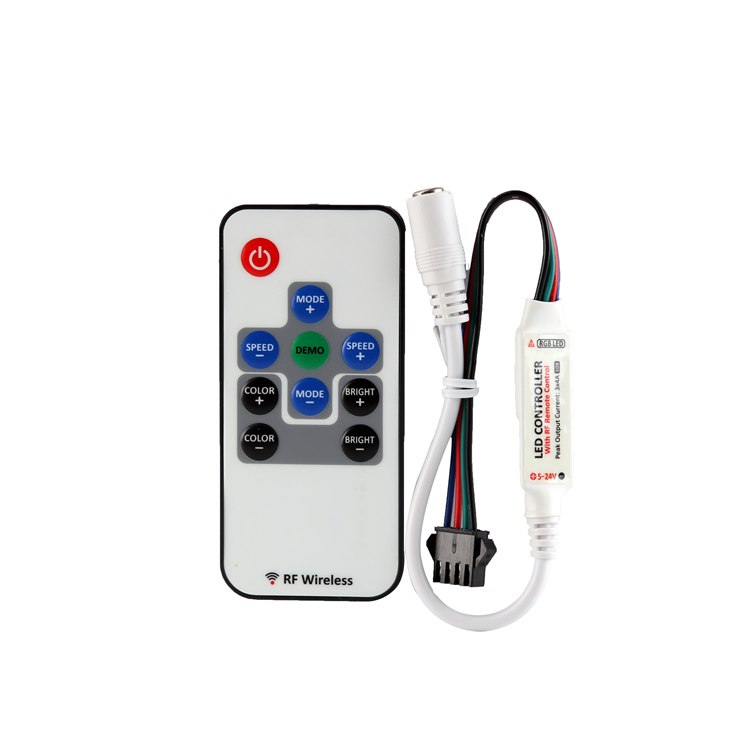

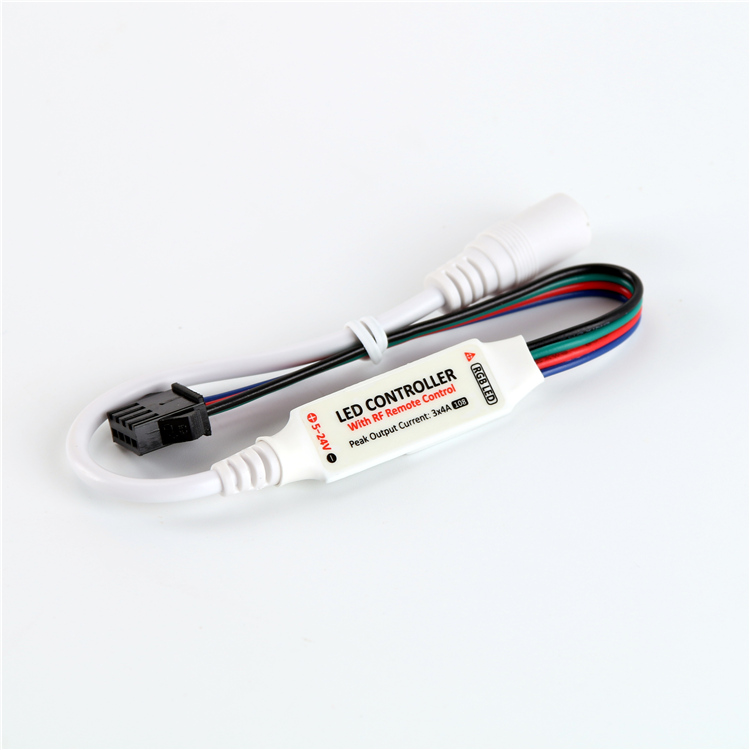

Mini Shape DC5V DC12/24V RGB LED Strip Light Mini RF Wireless LED Controller

Feature:

• Auto Save Function

• Brightness Adjustable

• 1 To 1 Remote Paired

• Speed Adjustable

• Demo Mode

• 256-Grade PWM

• Ultra Slim Design

• 20 Static Colors

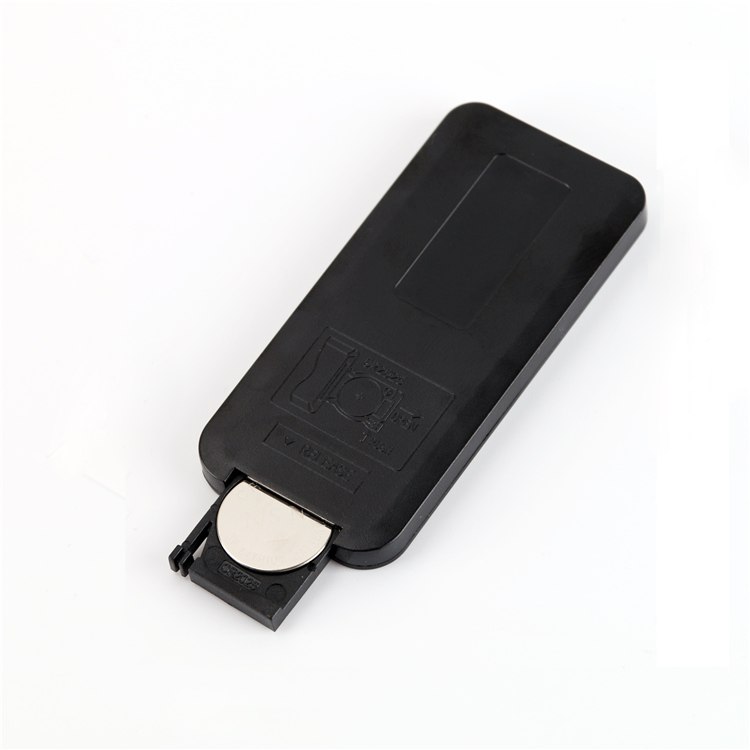

• Card Type Remote

• 19 Dynamic Modes

Specification:

• Dynamic Mode: 19 modes

• Static Color: 20 colors

• PWM Grade: 256levels

• Brightness Grade: 5 levels

• Speed Grade: 10levels

• Demo Mode: yes

• Working Voltagea: DC5~24V

• Output Current: 3-way, peak 4A per channel

• Remote Frequency: 433.92MHz

• Remote distance: >15M at Open area

Package include:

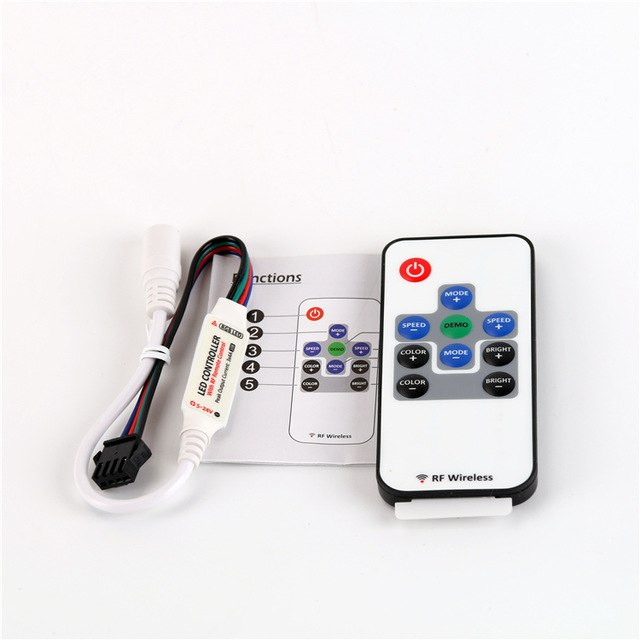

• 1 * RGB LED Strip Light Mini RF Wireless Controller

Installing:

1. Power supply:

• This unit accepts DC5V to 24V power supply. The inner pole polarity is positive and sleeve is negative. Please select proper power supply according to the LED application.

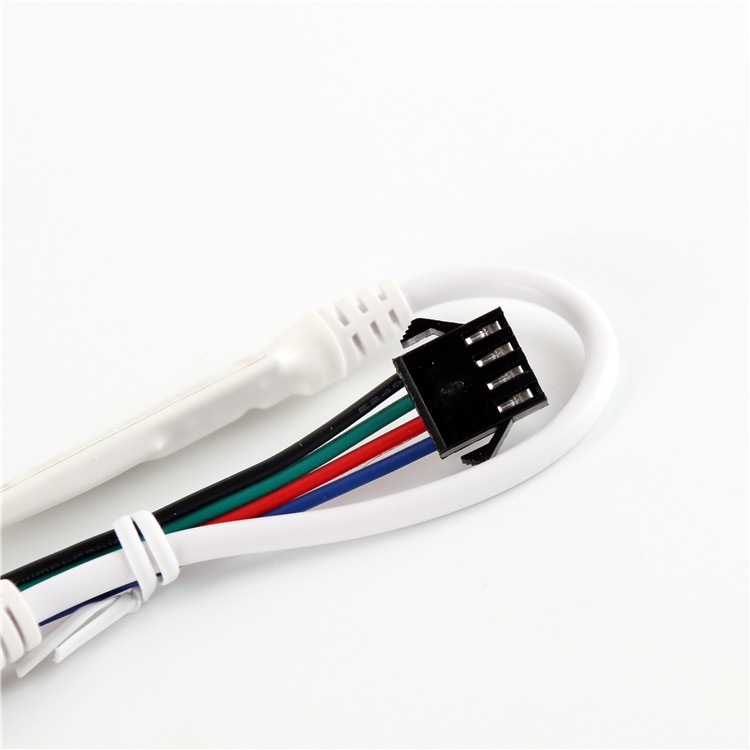

2. LED Output:

• This unit support common anode connection LED products.

• The Mark ”+” indicates the common connection node. The peak output current is 4A per channel, please reduce load if main unit is overheating.

Caution: DO NOT short circuit the LED output, this may lead to permanent damage!
