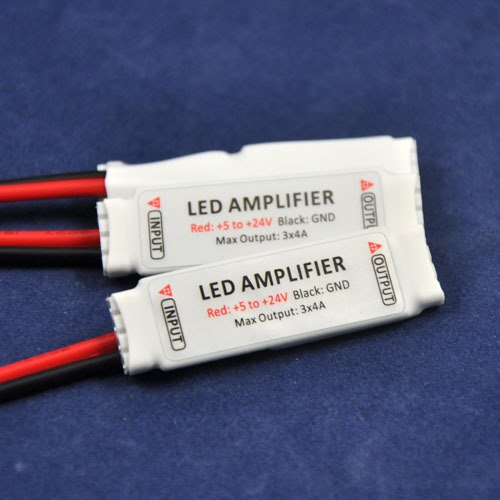

LED Amplifier RF Remote RGB Controller for LED Strip Light
Categories :
Mini LED ControllerSKU :
1920323Feature:
Ultra slim desigb
Simple installation
High efficiency, low heat
Wide working voltage
Up to 3*4A peak current
Own embedded control IC Chip
Wrong wiring protection
Infinite cascading ability
Specifications:
Voltage:DC5-24V
Current:4A *3CH
Power Dissipation:<0.5W
Work Temperature:-20~+60degree
Power output: 12V-144 W,24V-288W
Power connector: double lines

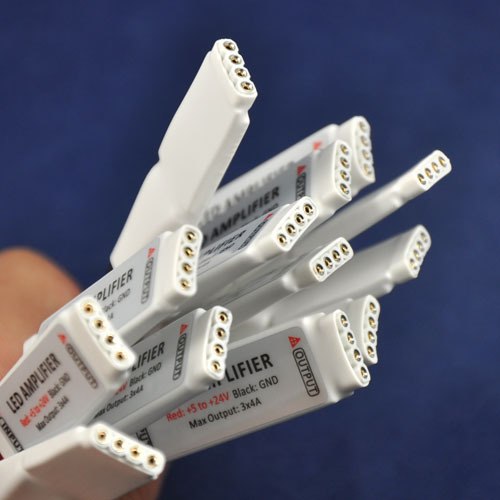

LED Connector: 4-pin
Supper Mini, safe,easy to operate.
Can be used for SMD 3528 Led strip light, SMD 5050 Led strip light
Application:
The input voltage of this controller should be follow the specifications, other high voltage would most probably destroy it
The 4wires coming out of the controller can’t be incorrectly interconnected or short circuit could occur
Connect the wires of the controller and LED fittings as per the instruction
Don’t peel off the label on the controller in case any indication information will be missed
The standard warranty is one yeas Our company won’t be responsible for any damage of the Controller due to any wrong operation.
Package include:
1* R103-WS 4pin mini rgb led amplifier
