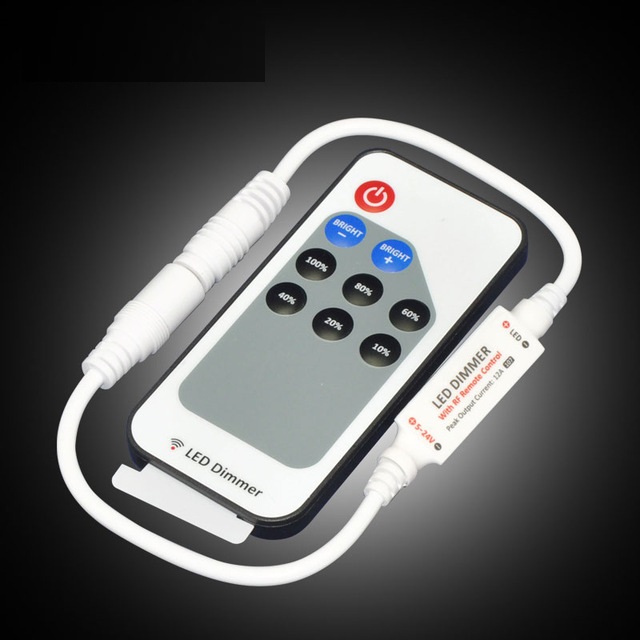

Wireless LED Dimmer Controller with RF Remote for Single Color Strip Lights
Categories :
Mini LED ControllerSKU :
1920281Overview:
RF Controller adopts the advanced micro-control unit; it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, and glass curtain wall light and so on; It has many advantages such as low price, easy connection and simplicity to use. According to the actual need of customers, it can carry out jumpy changing, gradual changing, strobe flash and other effects of change.
Specifications:
Working Voltage: 5-24V
Power: 144W-12V, 288W-24V
Current: 5A*1 CH
Power Plug: DC Female
Feature: 7 dynamic models, 10 class brightness variation, Working with Remote
Application:
The input voltage of this controller should be follow the specifications, other high voltage would most probably destroy it
The 4 wires coming out of the controller can’t be incorrectly interconnected or short circuit could occur.
Connect the wires of the controller and LED fittings as per the instruction
Don’t peel off the label on the controller in case any indication information will be missed
The standard warranty is 2 years. Our company won’t be responsible for any damage of the Controller due to any wrong operation.
Package included:
1 X Mini RF with Remote Single Color LED Controller
