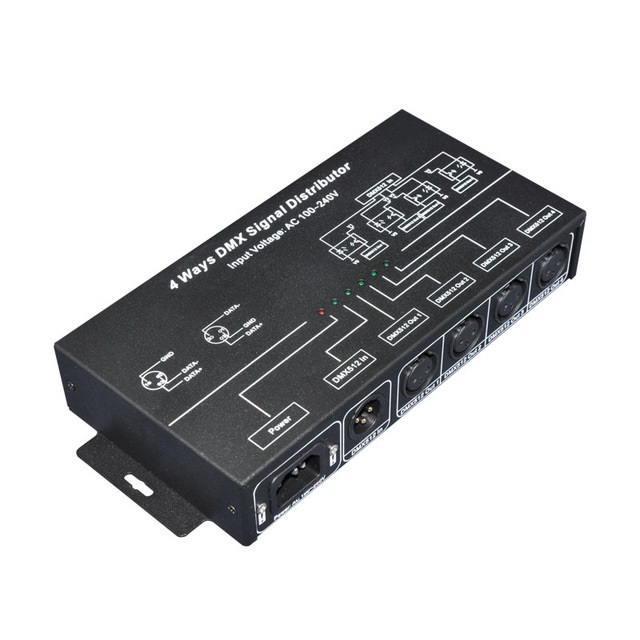

AC100-240V(50Hz/60Hz) 4CH LED DMX512 Signal Distributor Controller
Categories :
DMX controllerSKU :
1920244
100% original guarantee
Return within 30days
Worldwide Fast delivery
Summary:
DMX124 signal distributor is one of DMX signal distributor series, is specially used for amplifying DMX512 digital lighting control signal and 4 channels allocation output. The input/output interface adopts high voltage isolation technology, applied to amplify DMX512 signal transmission in the short distance, as well as the using occasion where output/input interfaces need to be complete electrical isolation. Due to the independent isolation between input/output interface, it can avoid burning precision digital light console by the problem of the controlling circuit, decoder, computer light, silicon box and so on, to ensure the safe operation of digital lighting control, and also ensure DMX signal can normal transfer to all kinds of lighting equipment, so as to improve reliability for the whole digital lighting control system.
Specifications:
Supply voltage | AC100～240V(50~60HZ) |
Input signal | 1 channel DMX512 signal |
Output signal | 4channel DMX512 signal output, output port can be connected to the most 32pcs equipment |
Isolation voltage between input/output interface | >1000V |
Rated power | 4W |
External dimension | 241*109.5*37.5mm |
Package size | 270*170*68mm |
Carton size | L430*W375*H320mm |
Cascade number | the most can cascade 16pcs signal amplifier |
Net weight & Gross weight | 700g &1100g |
External Dimension:
Interface Specification:
Signal light specification:
Typical application:
