DC5V-24V 480W SPI Signal LED DMX-SPI Decoder for LED Lighting
Categories :
DMX controllerSKU :
1920209
100% original guarantee
Return within 30days
Worldwide Fast delivery
Summary:

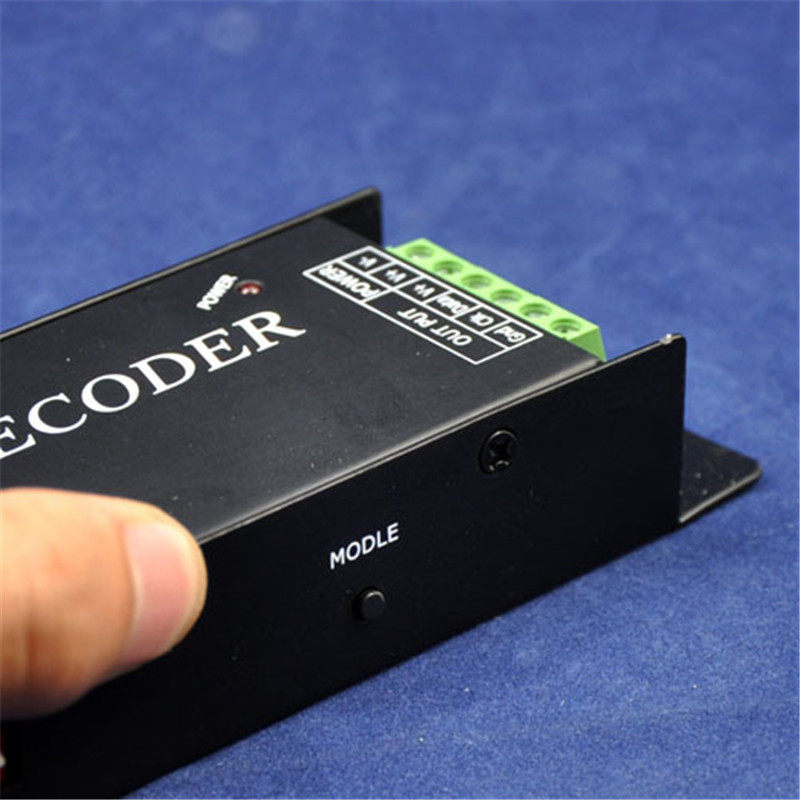

The DMX-SPI decoder adopts the advanced micro control unit, it receives standard DMX-512 digital control signal that is widely used in the international and transformes it into SPI signal to drive LED, it supports 10 kinds of different model of lights, at the same time the port of DMX signal has lightning protection measures; you could connect the DMX decoder with DMX digital console to achieve dimming or various changes in procedures. Not connected with DMX console, you can choose select the built-in 35 kinds of default patterns through the modle button, the default points is 1024.
Specifications:
Supply voltage | DC5V-24V |
Dimming frequency | 800Hz |
Connection mode | common anode |
Output | SPI signal (DATA, CLK) |
Max output power | 480W |
External dimension | 175*53*27mm |
Package size | 180*58*55mm |
Carton size | L496*W272*H308mm |
Net weight & Gross weight | 256.2g &292.6kg |
Support Chip | LPD6803, TM1803, TM1809, TM1812, UCS1903, WS2811, WS2801, TLS3001, TLS3008, P9813 |

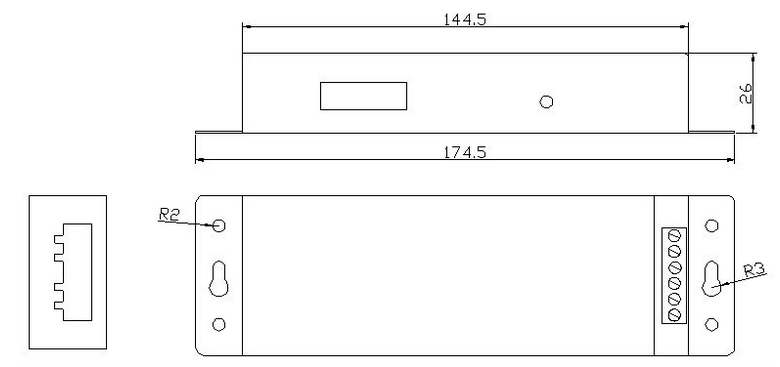

External dimension:

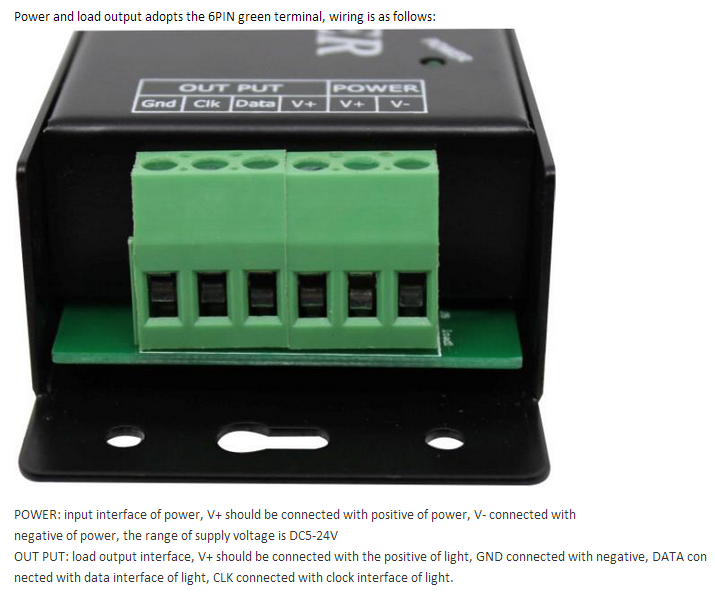

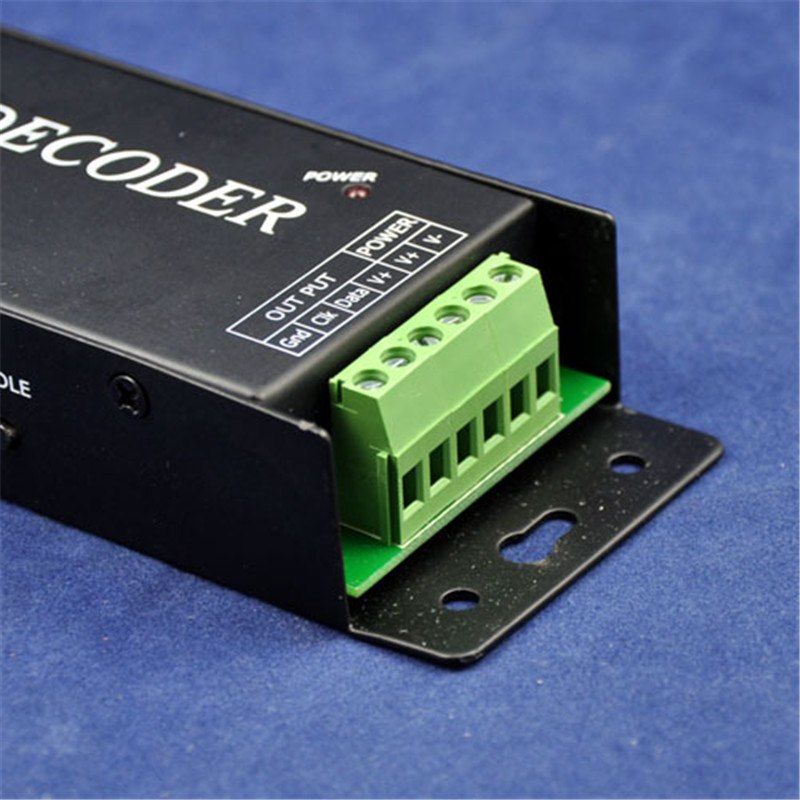

Interface specifications:

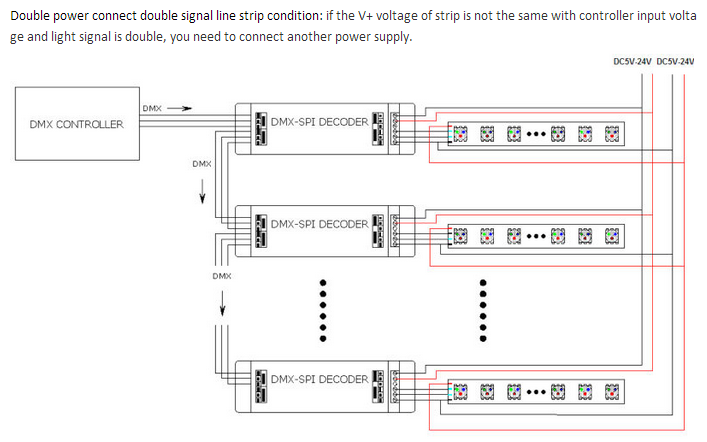

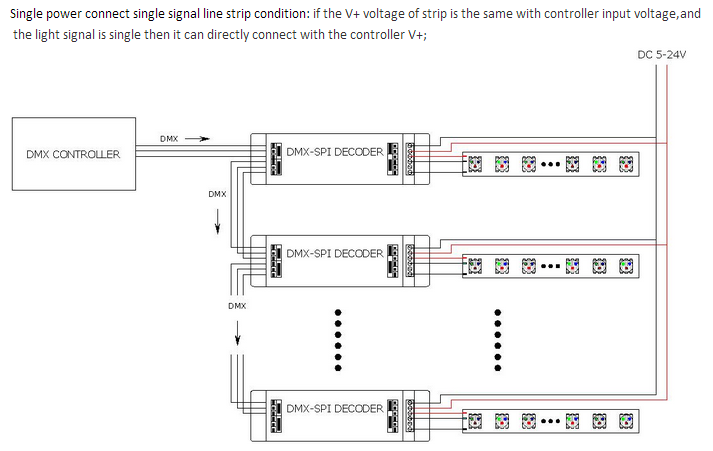

Typical Application:
