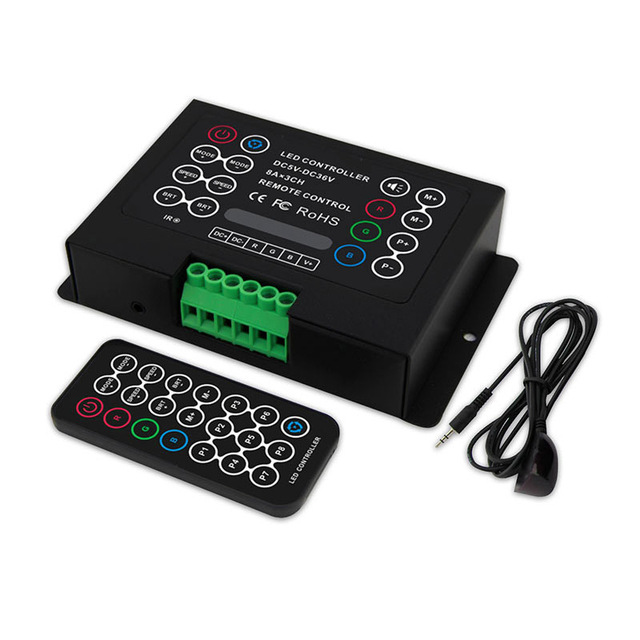

8A Constant Voltage 21 Key RGB IR Remote Controller for LED RGB Lights
Categories :
IR ControllerSKU :
1820061
100% original guarantee
Return within 30days
Worldwide Fast delivery
Summary:
Multifunctional LED RGB controller is an upgraded DIY LED controller, it added customize programming function, you can program your favorite color change modes within a few seconds. It can control color changes of LED lights with 4-pin 3-channels (common anode). It has 12 kinds of built-in modes, 6 kinds of customize modes, which can be changed to any of the color skipping, color smooth and color flicker, making your LED light changes more rich and colorful.
Specifications:
Max voltage & current: | DC12-24V, 8A/CH*3 |
Power | 290W(12V), 580W(24V) |
Changing mode | 12 built-in modes, 6 customize modes |
Scale levels | 4096 steps per RGB |
Staic dimming | Mixing up 4096 colors |
Remote Control Distance | 10m without obstacles |
Control type | Common anode |
Product size | L142*W73*H30mm |
Weight | 350g |
Details:
Basic Features:

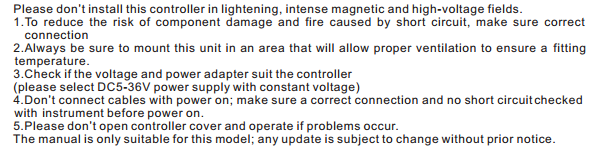

Safety Warnings:

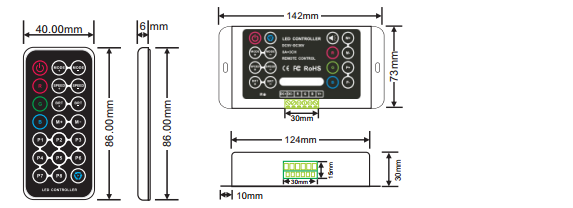

Dimension:

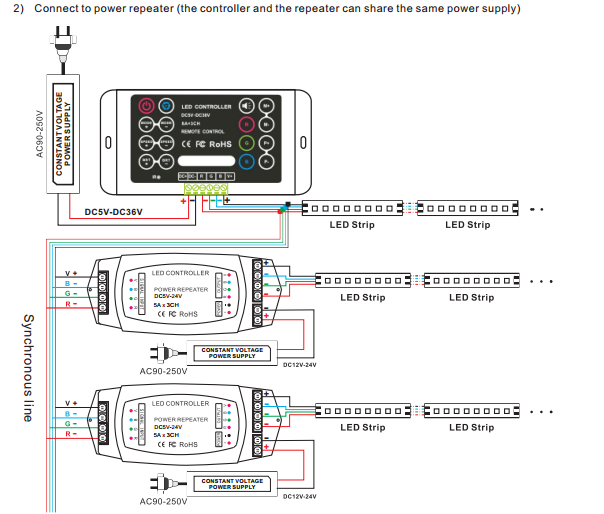

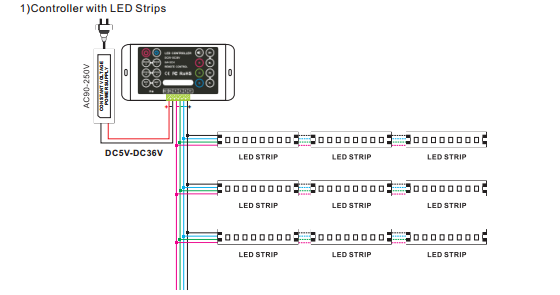

Conjunction Diagram:

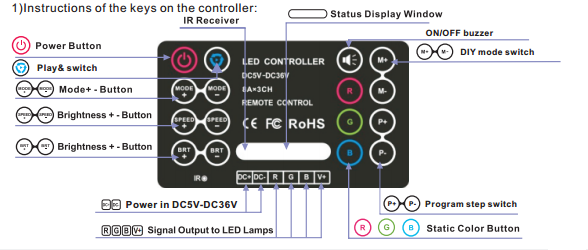

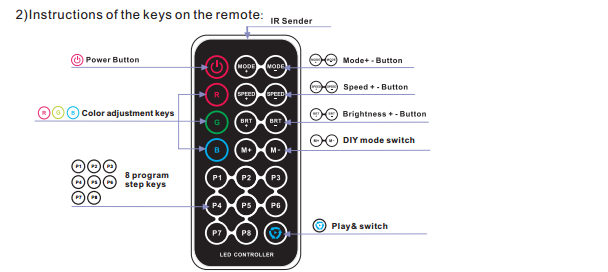

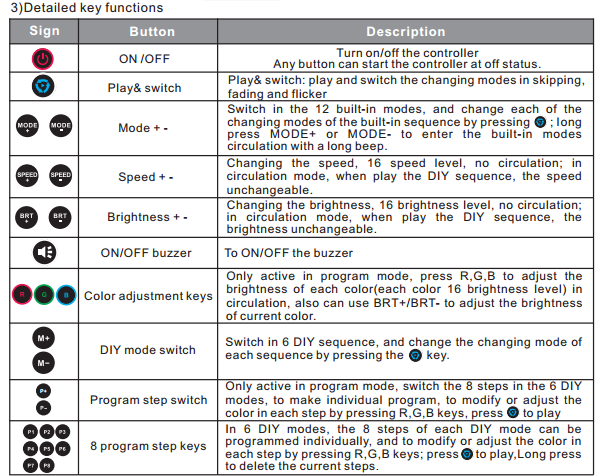

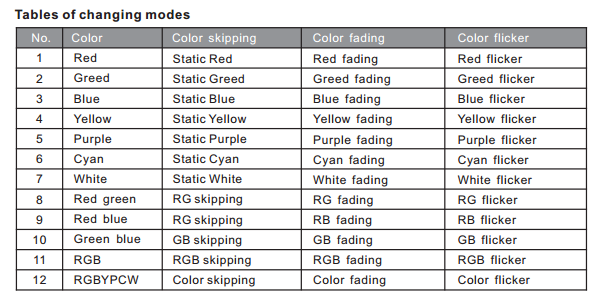

Operating instruction:

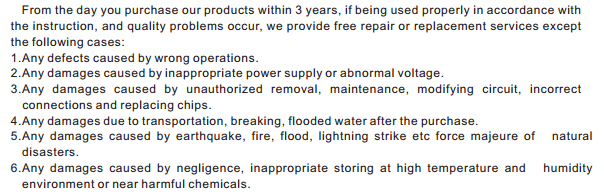

After-sales:
Kindly reminder:
