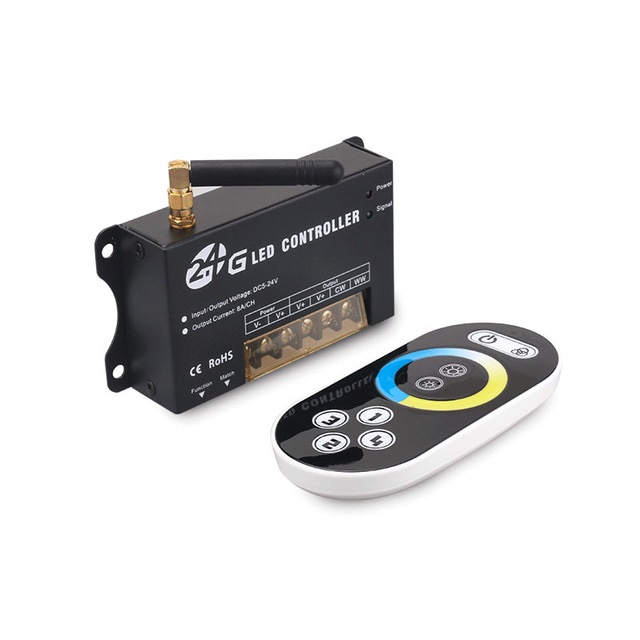

RF202 2.4G RF wireless LED Color Temperature Touch Remote Controller DC5-24V CCT Controller

Specifications:

RF Remote Control

• Power supply mode: AAA battery*3pcs(not oncluding)

• Working temperature: -20-60 degreen

• Supply voltage: 1.5V*3

• Transmission frequency: 2.4Ghz

• Standby power consumption: 0.015mW

• Standby current: 60uA

• Working current: 200uA

• Emission current: 10mA

• Remote distance: about 30m

• Standby time: 6 months

• Remote control weight: 94g

Color-temperature controller

• Working temperature: -20-60 degreen

• Supply voltage: DC5V-24V

• Output: 2 channels

• Connection mode: common anode

• External dimension: L120ΧW62ΧH24mm

• Packing size: L185ΧW145ΧH52 mm

• Net weight: 220g

• Gross weight: 314g

• Static power consumption: <1W

• Output current: <8A (each channel)

• Output power: 12V:<192W, 24V:<384W

Function: 2.4 G controller is our newly wireless high power LED controller. Equipped with touch remote ,touchremote with high precision capacitive touch control technology, combined with the use of touch color ring, can choise color you need with one key, convenient and quick. Each controller only one address code, in order to prevent to control chaos caused by repeated code control. Each controller can also equipped with four remote control, can realize many controller synchronous control. Used to control with various kinds of led lights for the light source lamps and lanterns, such as: the point light source, soft light, wash the wall lamp, glass curtain wall lamp, etc.; connection is convenient, simple to use etc. Can realize single control and group control convenient user use.

Package included:

• 1 x 2.4G led color-temperature controller

• 1 x remote control
