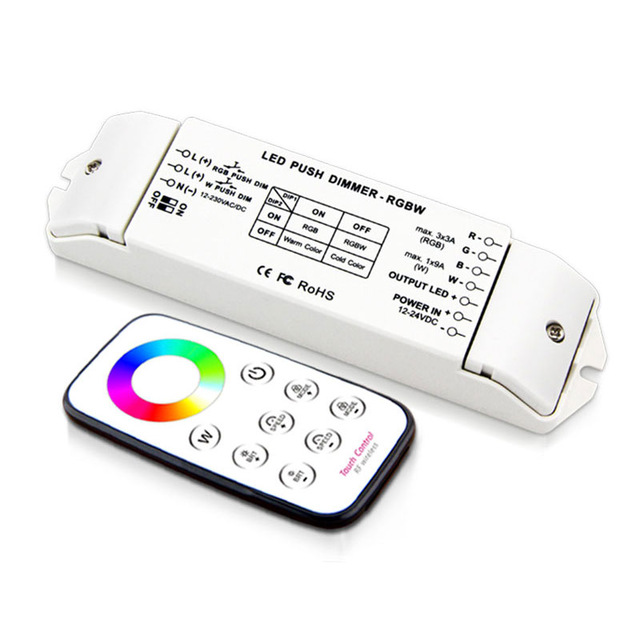

DC12-24V 4 Channels DIP Switch Wireless Constant Voltage RGBW LED Controller with RF Touch Remote

Features:

• Automatically adapts to DC12V-24V.

• 4 output channels, each channel 4096 grey scale, Lamplight soft and stable, without flicker

• 4 dynamic color tune selectable.

• Save parameter automaticauy.

• Over current protection, short circuit protection.

Product parameter:

 Model: 420

•  Working voltage: DC12V-24V

•  Max output current: RGB: 3A×3CH W: 9A×1CH

•  Max output power: RGB:36W×3CH W:108W(12V) / RGB:72W×3CH W:216W(24V)

•  Grey scale: 4096 levels×4

•  Work temp: -20-55℃

•  Dimension: L176×W46×H30(mm)

•  Weight (G.W): 145g

 Model: T4

•  Working voltage: DC12V-24V

•  Working frequency: 433.92MHz

•  Remote distance: 40m-50m

•   Work temp: -20-55℃

•   Dimension: L106×W56×H9(mm)

•   Weight (G.W): 40g

Operating instructions:

Conjunction Diagram:

Safety Warnings:

Please don’t install this controller in lightening, intense magnetic and high-voltage fields.

• To reduce the risk of component damage and fire caused by short circuit, make sure correct connection

• Always be sure to mount this unit in an area that will allow proper ventilation to ensure a fitting temperature.

• Check if the voltage and power adapter suit the controller (please select DC12-24V power supply with constant voltage)

• Don’t connect cables with power on; make sure a correct connection and no short circuit checked with instrument before power on.

• Please don’t open controller cover and operate if problems occur.The manual is only suitable for this model; any update is subject to change without prior notice.
