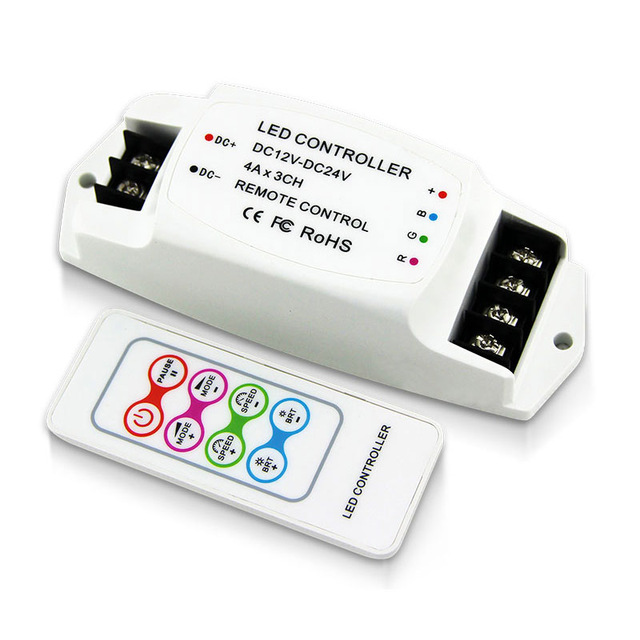

Constant Voltage 4A/CH*3 Wireless RF Remote LED RGB Controller
Categories :
RF ControllerSKU :
1820058
100% original guarantee
Return within 30days
Worldwide Fast delivery
Summary:
This constant voltage multi-function RGB Controller is a universal RGB controller for entire color changing, which adopted high-performance microchip and the most advanced PWM (pulse-width modulation) controlling technology at present. It can control all 4-pin 3-loop LED RGB full color lights. This series with RF remote cotnroller and it is available only within the valid range.
Specifications:
Max voltage & current: | DC12-24V, 4A/CH*3 |
Power | 144W(12V), 288W(24V) |
Scale levels | 4096 scale/CHx3 |
Remote Control Distance | 60m without obstacles, 30m with obstacles |
Control type | Common anode |
Product size | L125*W45*H36mm |
Weight | 110g |
Details:
Basic Features:

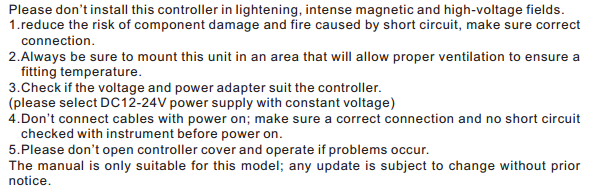

Safety Warnings:
Dimension:

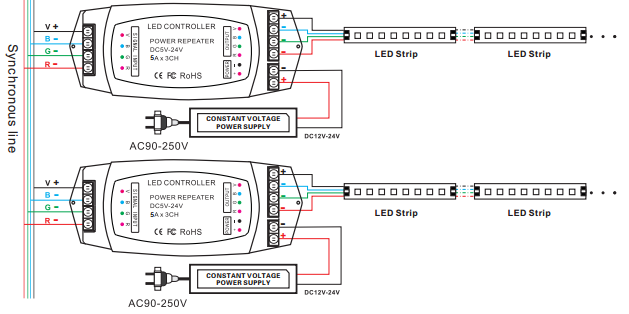

Conjunction Diagram:

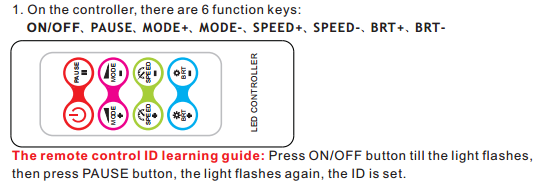

Operating instruction:
After-sales:
Kindly reminder:
No Specifications
