DC12-24V 6A/CH*3 LED RGB IR Remote Controller for LED Lights
Categories :
IR ControllerSKU :
1820056
100% original guarantee
Return within 30days
Worldwide Fast delivery
Summary:

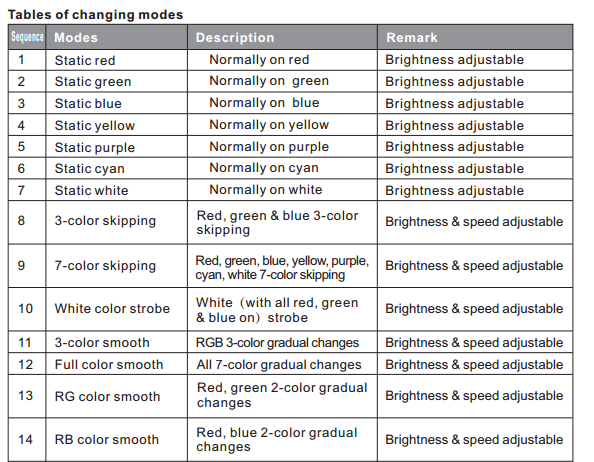

RGB controller is a unique DIY version as well as a powerful combination that can control color changes of LED lights with 4-pin 3-loop cables (common anode), built-in 18 modes with touch functional buttons, provided with IR wireless remote control panel, users can control color changes of LED light by pressing the button on the controller or on the remote control panel, used friendly.
Specifications:
Max voltage & current: | DC12-24V, 6A/CH*3 |
Power | 220W(12V), 450W(24V) |
Scale levels | 256 steps per RGB |
Staic dimming | Mixing up 4096 colors |
Remote Control Distance | 10m without obstacles |
Control type | Common anode |
Product size | L142*W73*H30mm |
Weight | 350g |
Details:
Basic Features:

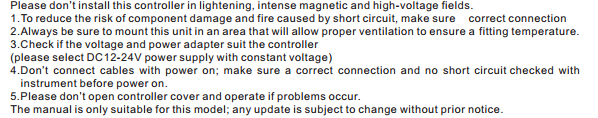

Safety Warnings:

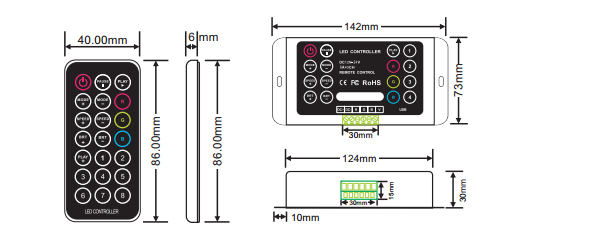

Dimension:

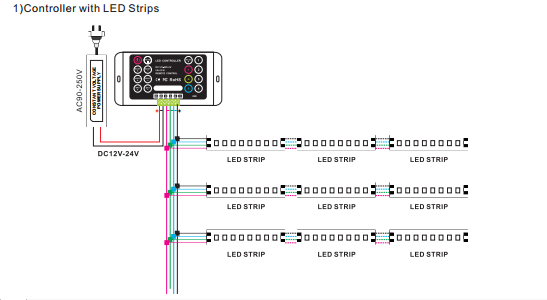

Conjunction Diagram:

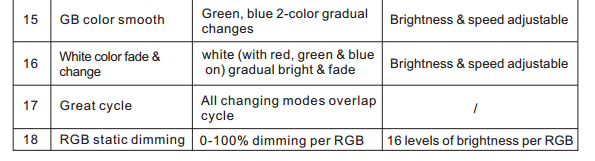

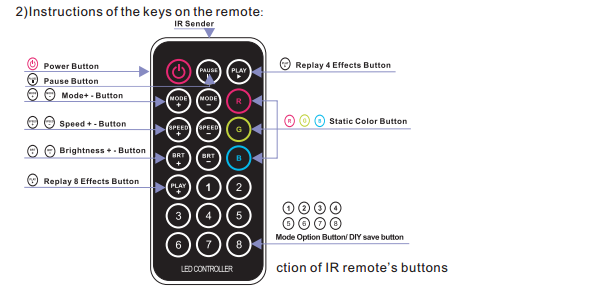

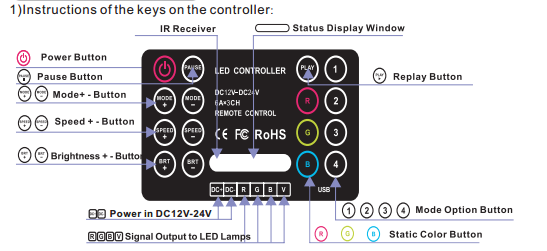

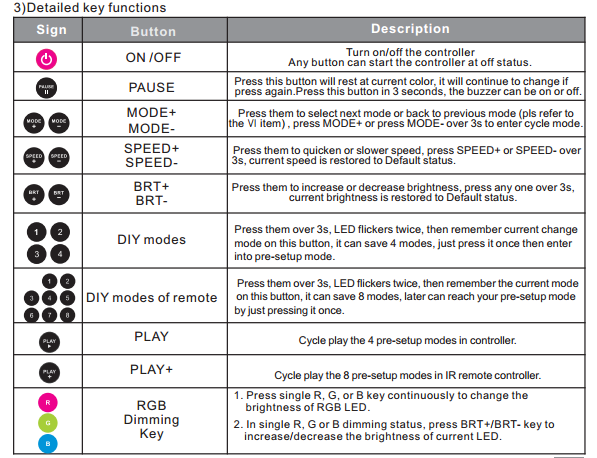

Operating instruction:

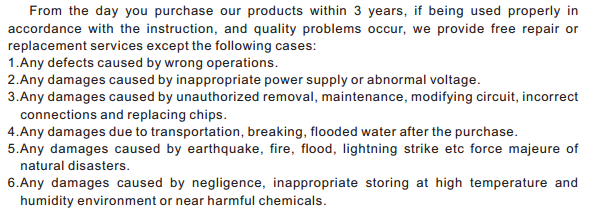

After-sales:
Kindly reminder:

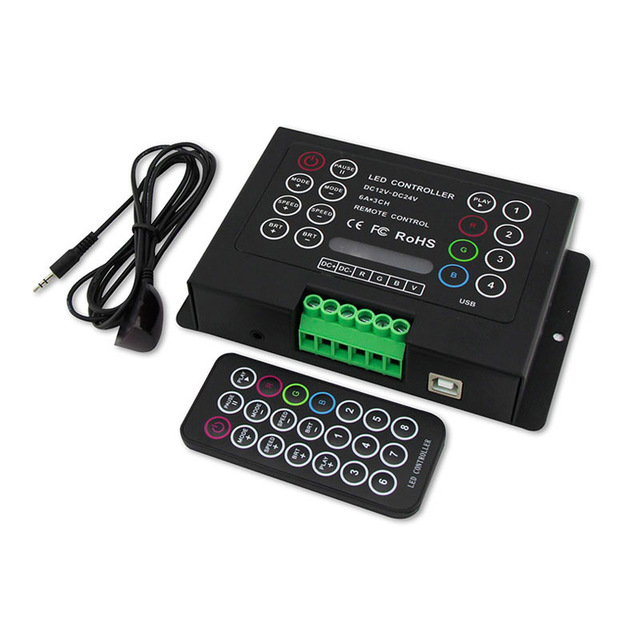

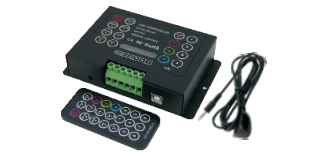

Photo for Product:
You may also like

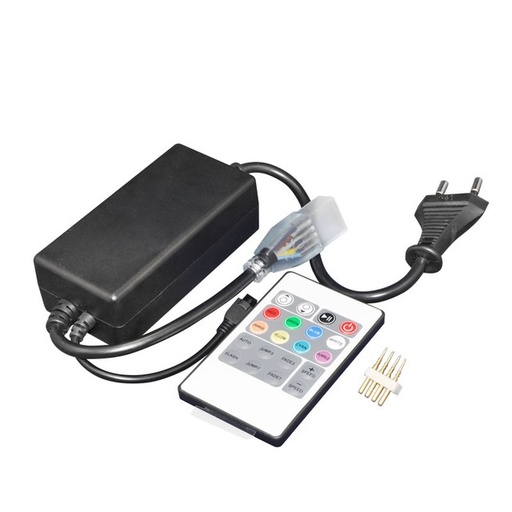

24Key IR High voltage RGB Controller (Metal Case)
