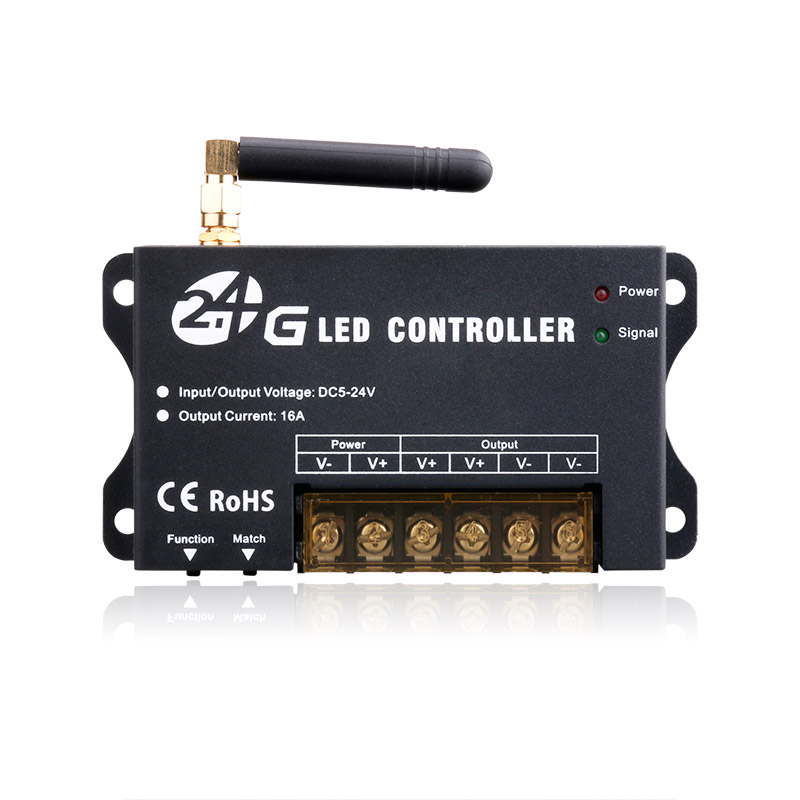

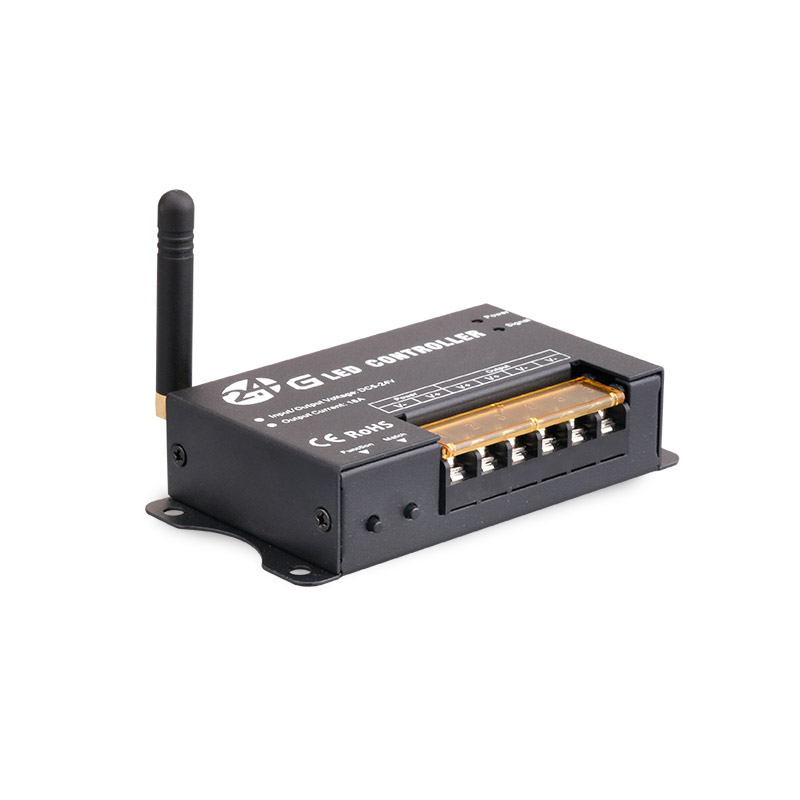

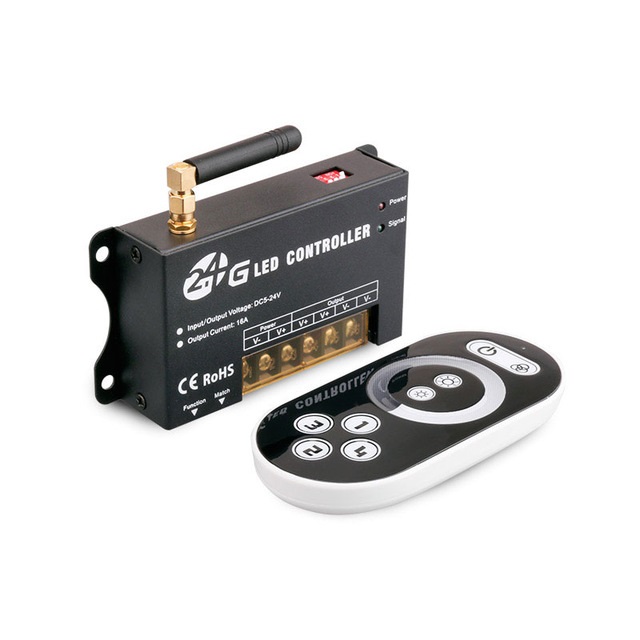

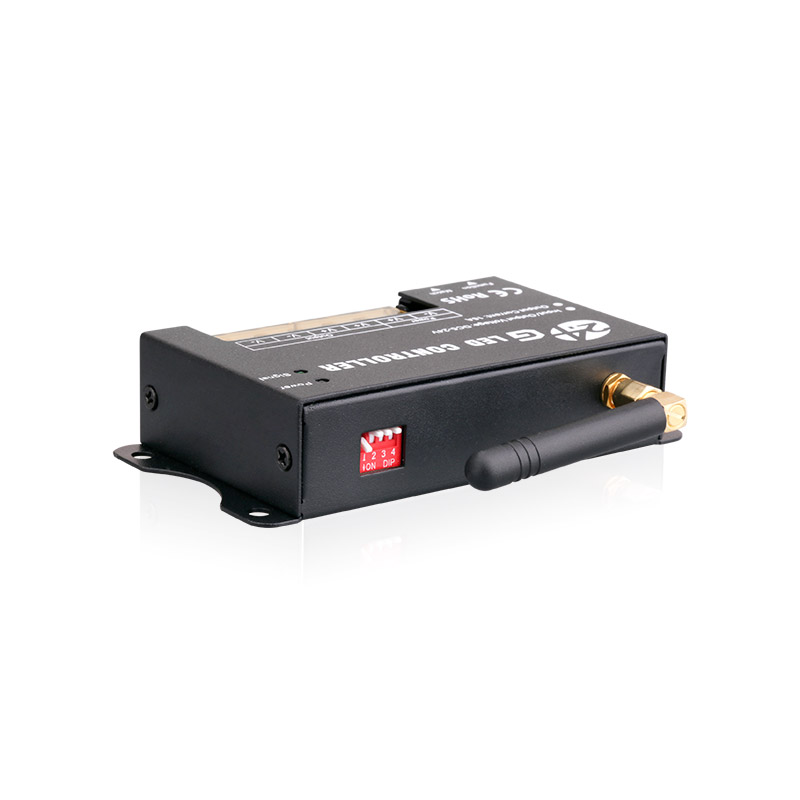

DC5~24V 2.4G division group LED Light Single Color Dimmer Controller With Touch Remote

Summarization

2.4G controller is newly introduced wireless high-power LED controller of our company. It equips with touch remote control, touch remote control adopts high precision capacitance touch control technology, you can select the color you need by one button. It is convenient and easy. Each controller has a globally unique address code, in order to prevent confusion caused by controlling repeated address code. Each controller can be equipped with four remote controls, can achieve multiple controllers synchronization control. It is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass wall light etc. It has many advantages such as convenient to connect, easy to use and others. According to the actual need of customers, it can carry out jumpy changing, gradual changing, stroboflash and other effects of change. It can achieve single control and group control, easy for user to use.

Technical Parameters

Controller

• Working temperature: -20-60℃


• Supply voltage: DC5V-24V


• Output: 1 channels


• Connection mode: common anode


• External dimension: L120ΧW62ΧH24mm


• Packing size: L185ΧW145ΧH52 mm


• Net weight: 220g


• Gross weight: 314g


• Static power consumption: <1w<><1w<>


• Output current: <16A


• Output power: 12V:<192W, 24V:<384w<><384w<>

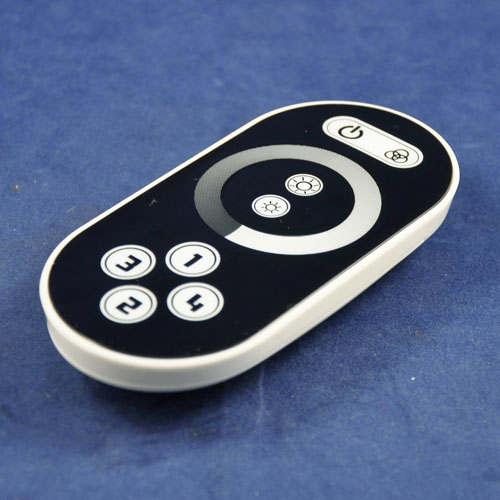

Touch Remote Control

• Working temperature: -20-60℃


• Power supply mode: AAA * 3


• Supply voltage: 1.5V * 3


• Transmission frequency: 2.4Ghz


• Standby power consumption: 0.015mW


• Standby current: 60uA


• Working current: 200uA


• Emission current: 10mA


• Remote distance: about 30m


• Standby time: 6 months


• Remote control weight: 94g


Total packing included:

• 1 x 2.4G led dimmer controller

• 1 x remote control (batteries not included)
