Summary:
LED intelligent dimmer is specially designed for LED lighting, it adopted the most advanced PWM (Pulse-width modulation) digital brightness-adjusting technology that enables you to adjust the brightness with the infinite knob and also can adjust the brightness far away with the IR wireless controller. It’s suitable for installation of commercial and household 86-style socket, you can install it visibly outside the wall or invisibly inside the wall, it can meet different brightness requirements at different time with the dimmer, also it can extend the LED service life and save energy, suitable to dim low-power and hi-power LED lamps.
Specifications:
Max voltage & current | DC12V~DC48V, 6A |
Output signal | Constant voltage PWM |
Max power | 72W(12V), 144W(24V), 216W(36V), 288W(48V） |
Dimming ragne | 0%—100% |
Grey step | 4096 level |
Remote control distance | 10m without obstacles |
Product size | L87*W87*H60mm |
Details:
Basic Features:

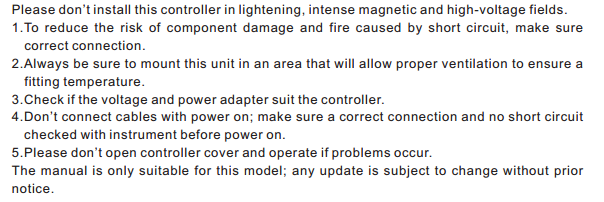

Safety Warnings:

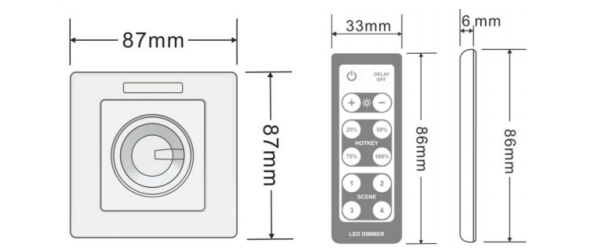

Dimension:

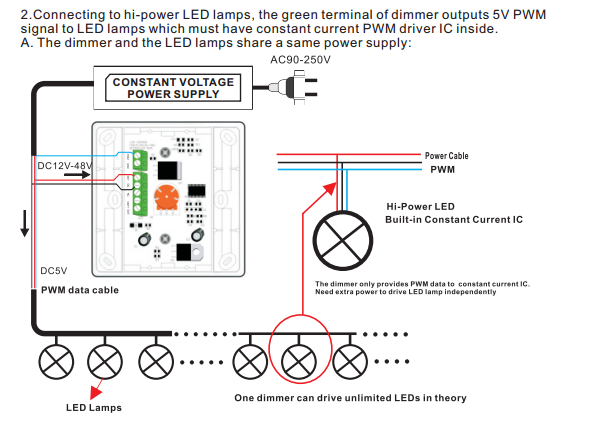

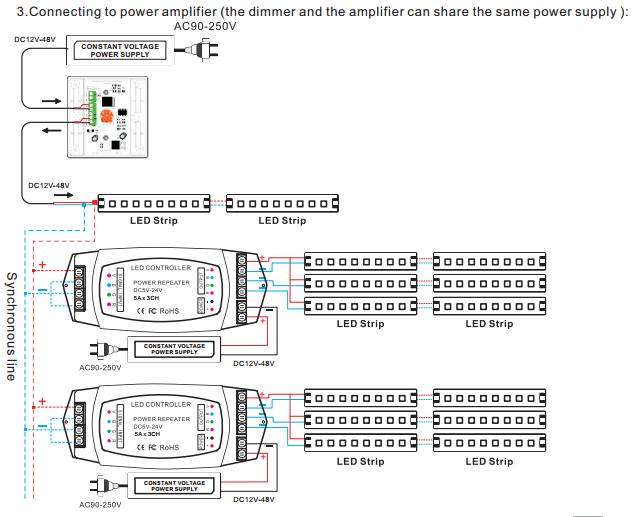

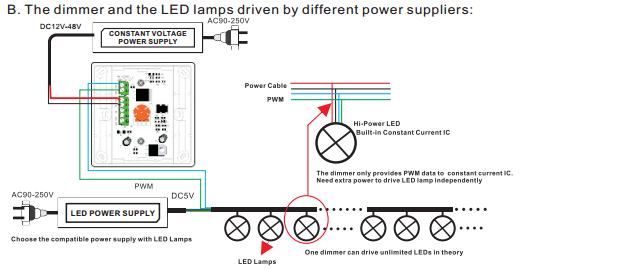

Conjunction Diagram:

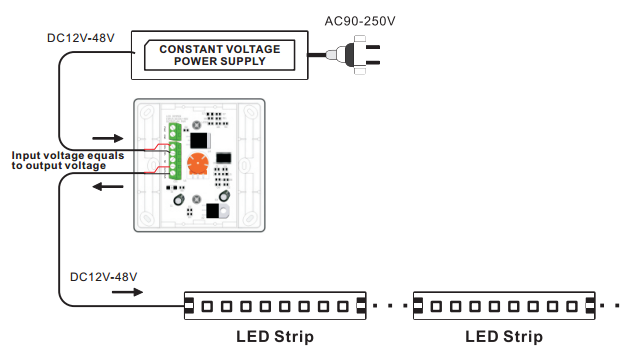

1 Connecting to LED Strip:

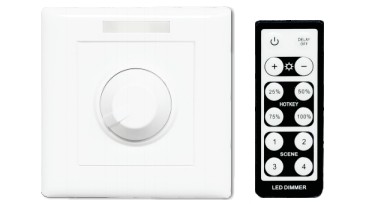

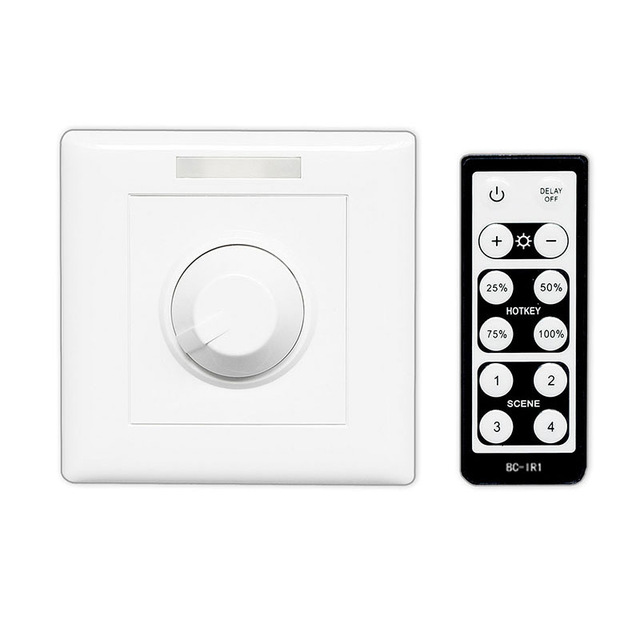

Photo for Product:
