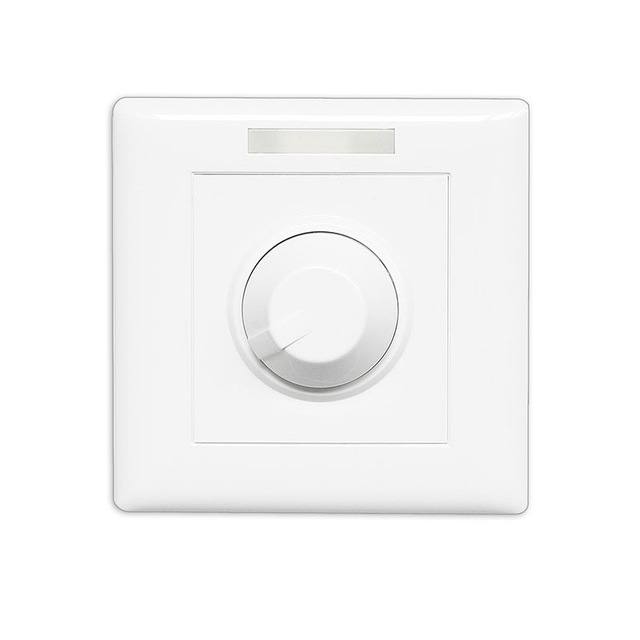

Features:
Standard 86-style socket, easy to install.
Infinite knob style dimming, easy to operate.
Real 0~100% brightness adjust, 4096 scale levels.
Comfort to human eye visual characteristic.
Lamplight soft and stable, without flickers, welcome to compare.
Automatically adapt to 12-24V working voltage.
Can be equipped with power repeater to expand power.
Power loss memory function.
Product parameter:
Input power: DC12V~DC24V
Output signal: Constant voltage PWM
Max load current: 10A
Output power: 120W/240W(12V/24V)
Dimming range: 0-100%
Grey step: 4096 levels
Switch size: L87×W87(mm)
Package size: L96×W91×H61(mm)
Gross weight: 150g
Conjuncton Diagram:
Operating instructions:
Safety Warnings:
Please don’t install this controller in lightening, intense magnetic and high-voltage fields.
To reduce the risk of component damage and fire caused by short circuit, make sure correct connection
Always be sure to mount this unit in an area that will allow proper ventilation to ensure a fitting temperature.
Check if the voltage and power adapter suit the controller (please select DC12-24V power supply with constant voltage)
Don’t connect cables with power on; make sure a correct connection and no short circuit checked with instrument before power on.
Please don’t open controller cover and operate if problems occur.
