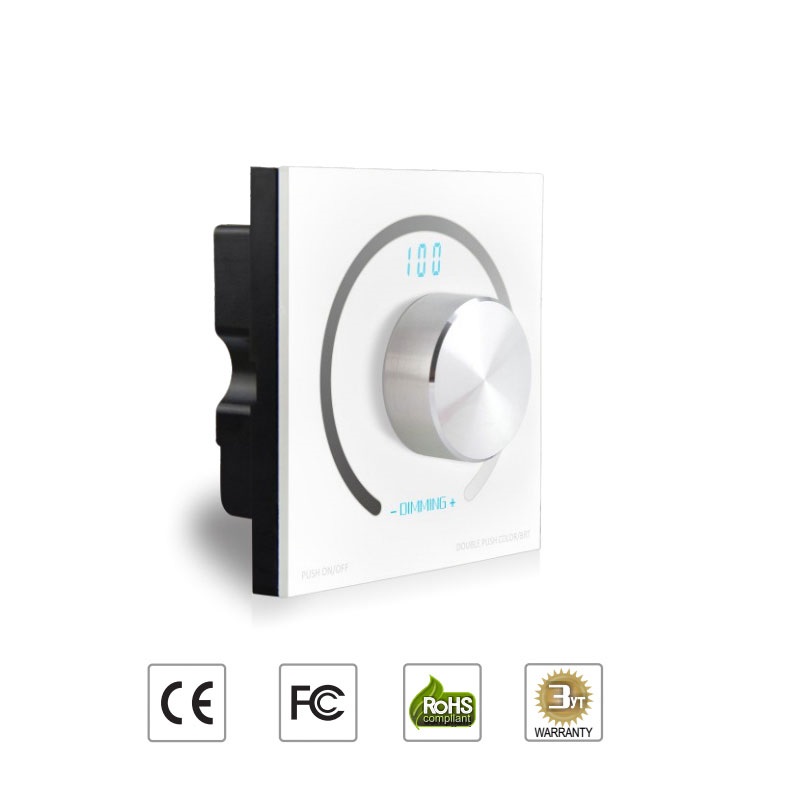

DC12-24V Glass Rotary Panel LED Dimmer Switch LED Controller for LED Strip Light
Feature function:
1. Automatically adapt to LED light which works from DC12V-24V.
2. Fashionable appearance, simple operation, standard 86 style socket, easy to install and disassemble.
3. 2048 grey scales per channel, led lamp is more rich and vivid without flash.
4. Optional output frequency: 0.5K, 1K, 2K, 4K, 8K
5.Three-digital-display indicates the current setting value, easy operation , the default parameter can be restored by manual.
6. Can compatible with T series wireless remote control in long distance.
7. Using Encoder rotary knob, instead of potentiometer , more durable.
Specifications:
Input Voltage | DC12-24V |
Load Current | 4Ax3CH Max 12A |
Optional output frequency | 0.5K, 1K, 2K, 4K, 8K |
Grey Scale Level | 2048×3 |
Dimming Range | 1%-100% |
Max Output Power | 144W(12V)/288W(24V) |
Working Temperature | -20°C~55°C |
Dimensions | L86xW86xH36(mm) |
Weight(N.W) | 300g |
Details:
Installation:
Wiring diagram:
Photo for Product:
