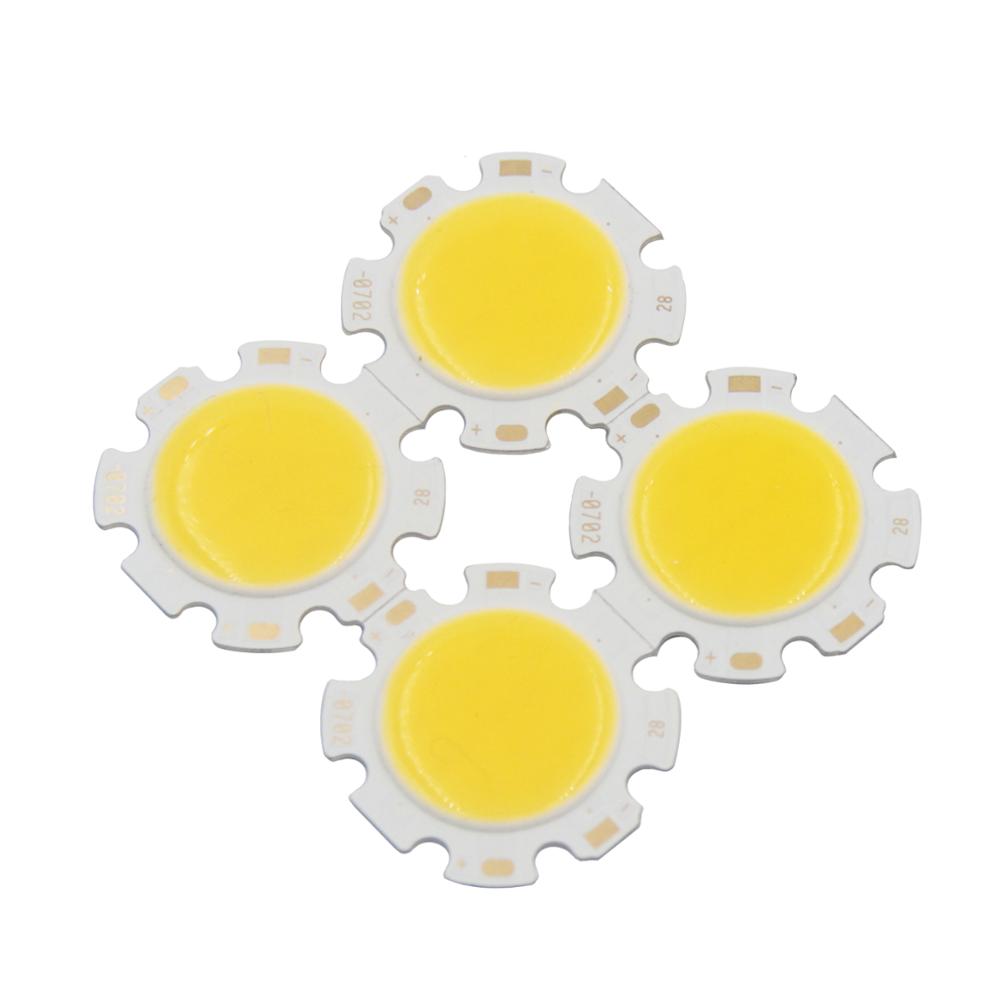

3W 5W 7W10W LED COB Module LED COB Round Panel 300mA 28mm PCB 20mm Emitting Area
Categories :
Round COB ModulesSKU :
1816516
100% original guarantee
Return within 30days
Worldwide Fast delivery
Description:

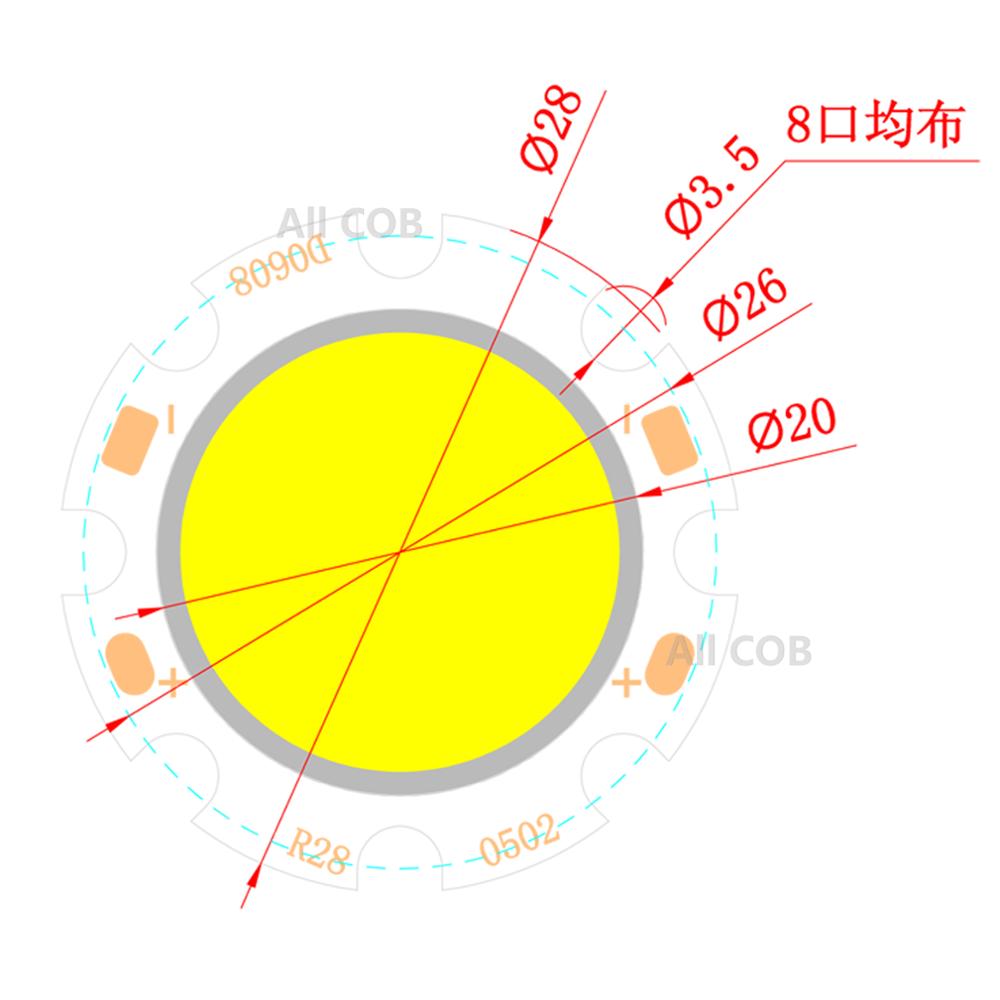

Product Size : 28*28mm
Light area: 20*20mm
Power : 3W, 5W,7W,10W
Forward Voltage : 30V-34V
Max Forward Current : 300mA

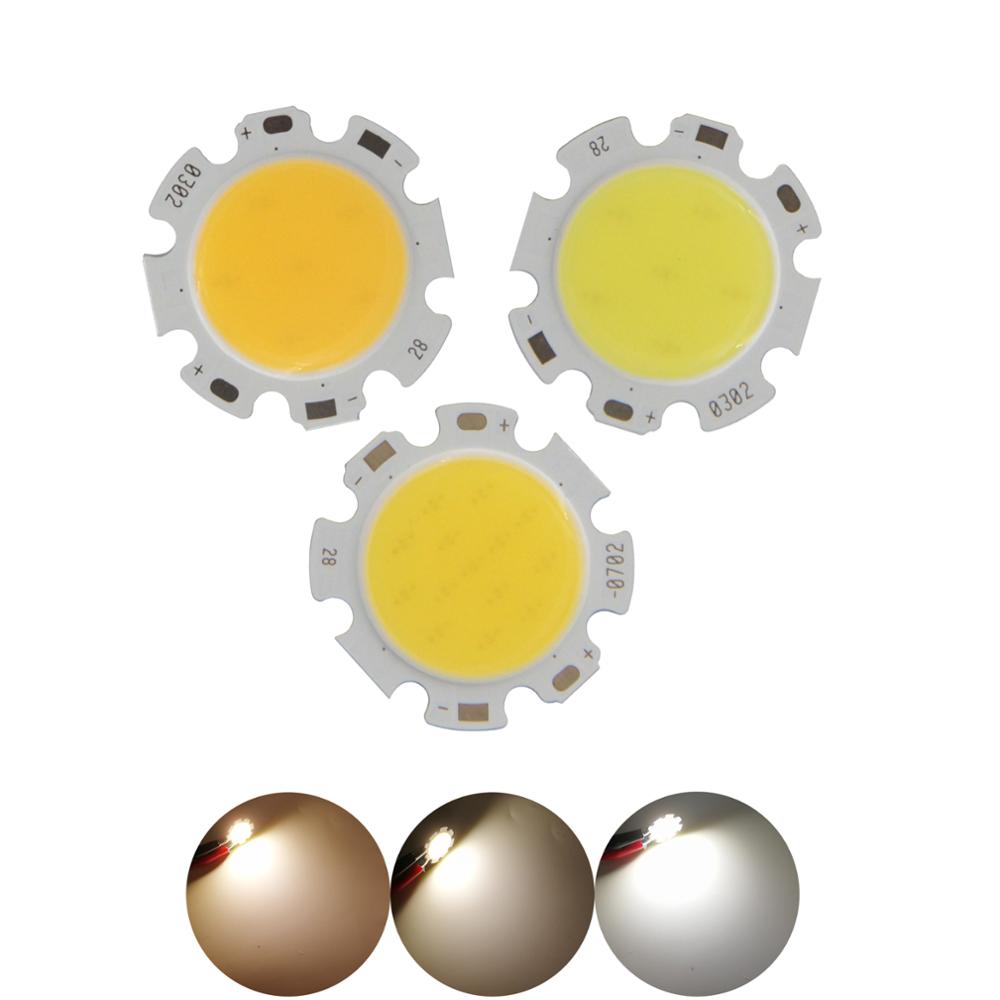

Emitting color : White, Warm White, Natural White
Luminous Flux : 100lm/1w
OEM/ODM : We accept customization
3w 5W 7w 10W COB LED light-emitting area 12mm white led light lamp bead
Model Color/CCT(K) Power(W) Φ(LM) IF(mA) VF(V) CRI luminous
efficiency
COB-28M12M3W* 2700-7000K
3 260-400 260mA 9-12 >80 >=90 COB-28M12M5W* 5 400-600 260mA 14-16 >80 >=90 COB-28M12M7W* 7 550-850 260mA 20-22 >80 >=90
COB-28M12M10W* 10 810-1250 260mA 37-40 >80 >=90
Color temperture:warm white:2700-3500k, Pure white:5500-6500k
| Model | Color/CCT(K) | Power(W) | Φ(LM) | IF(mA) | VF(V) | CRI | luminous efficiency | |
| COB-28M12M3W* | 2700-7000K | 3 | 260-400 | 260mA | 9-12 | >80 | >=90 | |
| COB-28M12M5W* | 5 | 400-600 | 260mA | 14-16 | >80 | >=90 | ||
| COB-28M12M7W* | 7 | 550-850 | 260mA | 20-22 | >80 | >=90 | ||
| COB-28M12M10W* | 10 | 810-1250 | 260mA | 37-40 | >80 | >=90 | ||
| Wattage | 3W or 5W or 7W or 10W |
| Emitting Color | Warm White 3000K or White 6500K or Natural White 4000K |
