20mm Honeycomb Lens with Bracket 30/45/60/120 Degree lot(200 pcs)
Categories :
Dia 20/22.5/23mm SeriesSKU :
2043308
100% original guarantee
Return within 30days
Worldwide Fast delivery
Please choose the holder type and holder colors in the above dropdown list:

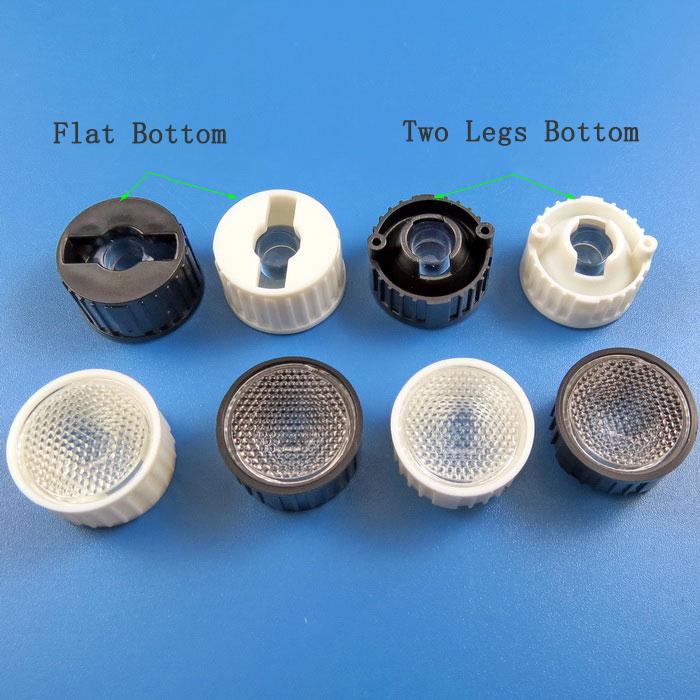

Currently we have two suitable types of holder for 20mm Lens in stock. First one is flat bottom(First and second one in the following picture). It suitable for LEDs solder in multi LED PCBs which do not need extra wires. Apply a little silicon glue on the bottom, you can fix the Lens firmly on the PCB boards. And If your LEDs are with single star PCBs, you should buy the one with two legs in bottom which need extra spaces for wires connection. In most cases, you do not really fix the lens with screws since the holder can clip into the star LED tightly. And the two legs are mainly designed to rest firmly on the sides of the PCB star. Of course you still can apply some silicon glue on the leg bottom to get the lens fixed or use little screws to fix on your fixture very firmly.
Parameters:
Product name: LED lens
Model No .: SS-20-x(Honeycomb)
Temperature resistance: -30 +90 degrees
Aspheric design
Lens diameter: 20mm
Height: 10.9mm
Inner diameter: 5.8mm
With bracket diameter: 22mm
With two legs bracket height 13.9mm
With flat bottom bracket height: 13.5mm
Inner diameter: 8.0mm
Light angle: 60 degrees
Light transmittance up to 93%
Widely used in: LED lamps, projection lights, wall washes, spot lights, garden lights, etc.
The Lens is packed in 200pcs box showing bellow:
| Finish | White or Black |
| Beam Angle | 30 Degree or 60 Degree or 45 Degree or 120 Degree |
| Holder Type | Strip Holder with Flat bottom or Strip Holder with two Legs or Smooth Holder with Flat bottom |
