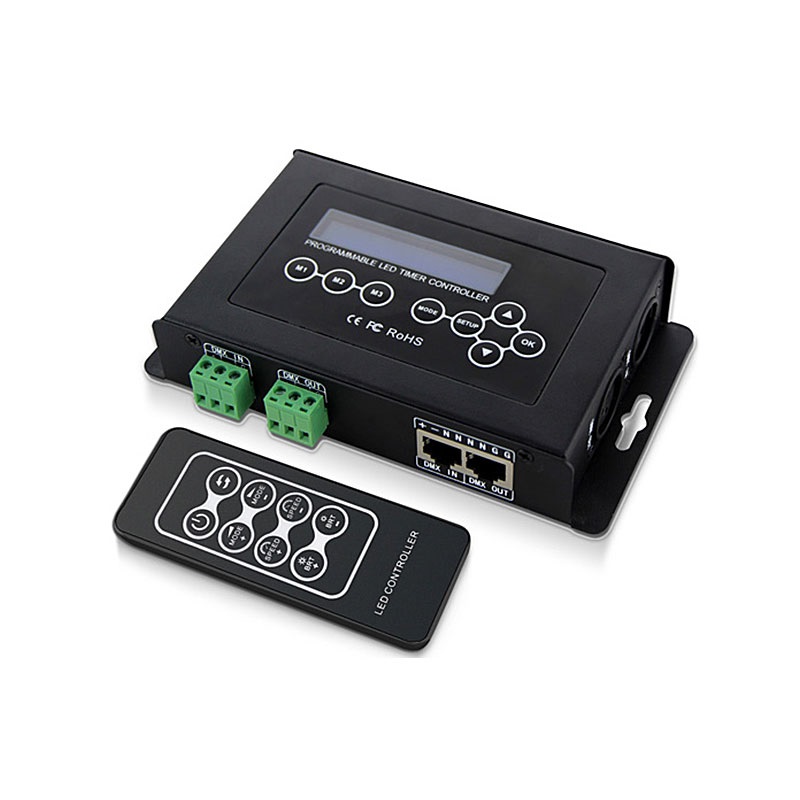

BC-100 DMX512/1990 Digital Addressable Pixel Light Control Master with Time Control Auto On/OFF

Summary:

Welcome to use our DMX512 contoller.it outputs international standard DMX512/1990 signal, it not only can control all the LED lights in the market as long as it receives standard DMX signal, but also can work with DMX Decoder to control general led ligths which do not accept DMX512 signal. this DMX512 Controller has a LCD screen, easy to operate with RF wireless remote control. Built-in real time clock system and a strong DIY & combination function can achieve abundant light color effect, and can meet your various control requirements.

Specifications:

• Working Voltage ： DC9V(With adapter)

• Output Signal ： DMX512

• DMX Interface ： XLR-3,RJ45, Terminal Block

• Working Temp ： -20°C-55°C

• Dimension ： 161mmx100mmx30mm

• Weight(G.W.) ： 460g

Featue function

• With LCD screen, easy to operate.

• Built-in real time clock system, your program can be set to played in any ti e.

• 40 built-in patterns, 4 DIY recording modes and 4 combined modes, it can combine hundreds of control patterns.

• Multilevel changing speed, brightness and RGB sequence adjustment for yout choices .

• Output standard DMX512/1990 signal, can control 170 Pixels.

• Support multiple DMX512 connector like XLR-3, RJ45, terminals, easy to use.

• With RF wireless remote control, can choose changing modes and control speed and brightness.

Package content:

1x   DMX512 master controller

Introduction:

Changing Patterns

Parameter setting

Remote operation

wireless remote control only support the switch of the first 48 modes. when set the 49th timer mode on the controller, no need remote control .

The learnign ID Methood of Remote Control

Hold the " UP" and " DOWN" keys at the same time, and press any key on the remote control, when the LCD displays' SAVE ID SUCCESS' , it indicates that ID setting success.

Connction Diagram
