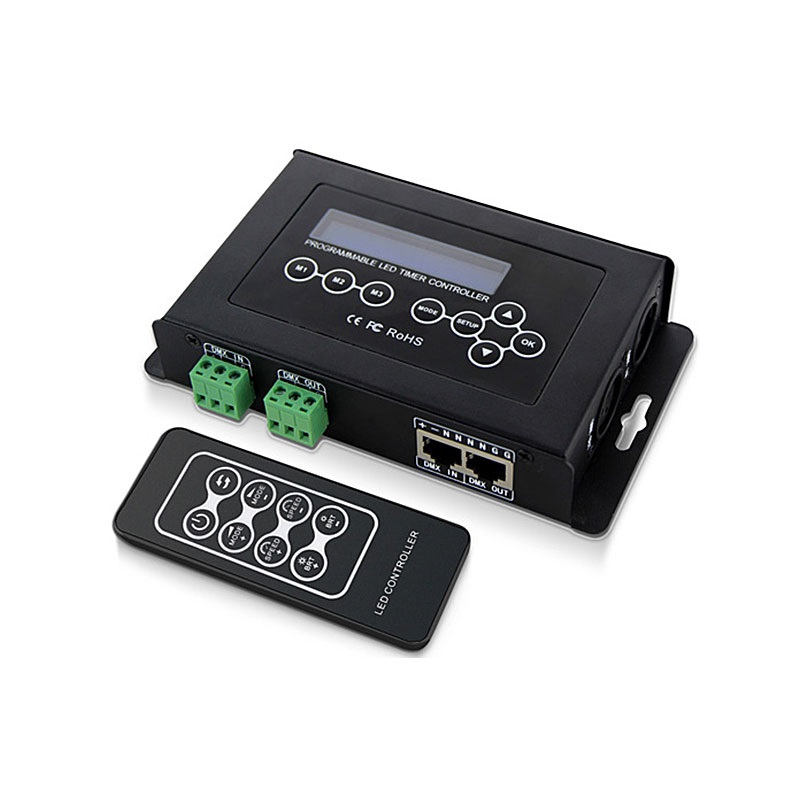

BC-100 DMX512/1990 Digital Addressable Pixel Light Control Master with Time Control Auto On/OFF

Price:

128.11


5W CREE XTE S3 High Power LED 8-20mm PCB Emitter Warm Neutral White Blue
5W CREE XTE S3 High Power LED 8-20mm PCB Emitter Warm Neutral White Blue
1.07
1.07
30W 40W 50W Driverless LED Light COB Chip Spotlight Size 110x58mm Emitting 60x30mm
30W 40W 50W Driverless LED Light COB Chip Spotlight Size 110x58mm Emitting 60x30mm
5.19
5.19

BC-100 DMX512/1990 Digital Addressable Pixel Light Control Master with Time Control Auto On/OFF

https://www.satisled.com/web/image/product.template/1745/image_1920?unique=9cde222
(0 review)

97.42 97.42 USD 97.42

¥ 698.50

Not Available For Sale


    This combination does not exist.


    Categories :
    DMX controller
    SKU :
    1920245
    Share :
    100% original guarantee
    Return within 30days
    Worldwide Fast delivery

    Summary:

    Welcome to use our DMX512 contoller.it outputs international standard DMX512/1990 signal, it not only can control all the LED lights in the market as long as it receives standard DMX signal, but also can work with DMX Decoder to control general led ligths which do not accept DMX512 signal. this DMX512 Controller has a LCD screen, easy to operate with RF wireless remote control. Built-in real time clock system and a strong DIY & combination function can achieve abundant light color effect, and can meet your various control requirements.

    Specifications:

    • Working Voltage : DC9V(With adapter)

    • Output Signal : DMX512

    • DMX Interface : XLR-3,RJ45, Terminal Block

    • Working Temp : -20°C-55°C

    • Dimension : 161mmx100mmx30mm

    • Weight(G.W.) : 460g

    Featue function

    • With LCD screen, easy to operate.

    • Built-in real time clock system, your program can be set to played in any ti e.

    • 40 built-in patterns, 4 DIY recording modes and 4 combined modes, it can combine hundreds of control patterns.

    • Multilevel changing speed, brightness and RGB sequence adjustment for yout choices .

    • Output standard DMX512/1990 signal, can control 170 Pixels.

    • Support multiple DMX512 connector like XLR-3, RJ45, terminals, easy to use.

    • With RF wireless remote control, can choose changing modes and control speed and brightness.

    Package content:

    1x   DMX512 master controller

    Introduction:

    QQ20180531191949QQ20180531191854

    Changing Patterns

    123

    Parameter setting

    444

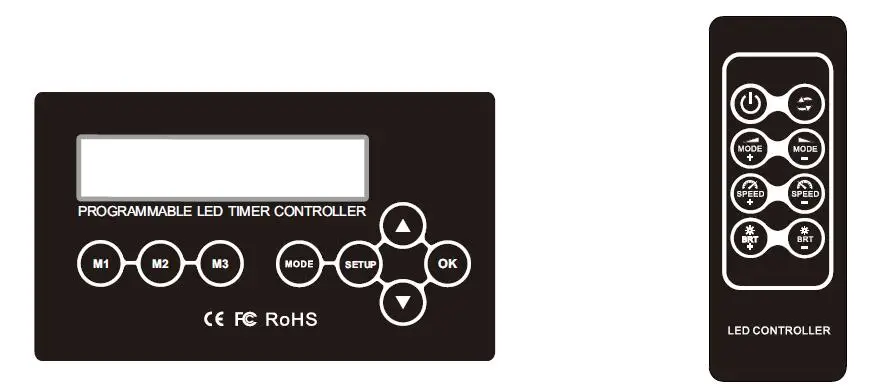

    Remote operation

    QQ20180531193105

    wireless remote control only support the switch of the first 48 modes. when set the 49th timer mode on the controller, no need remote control .
    The learnign ID Methood of Remote Control
    Hold the " UP" and " DOWN" keys at the same time, and press any key on the remote control, when the LCD displays' SAVE ID SUCCESS' , it indicates that ID setting success.

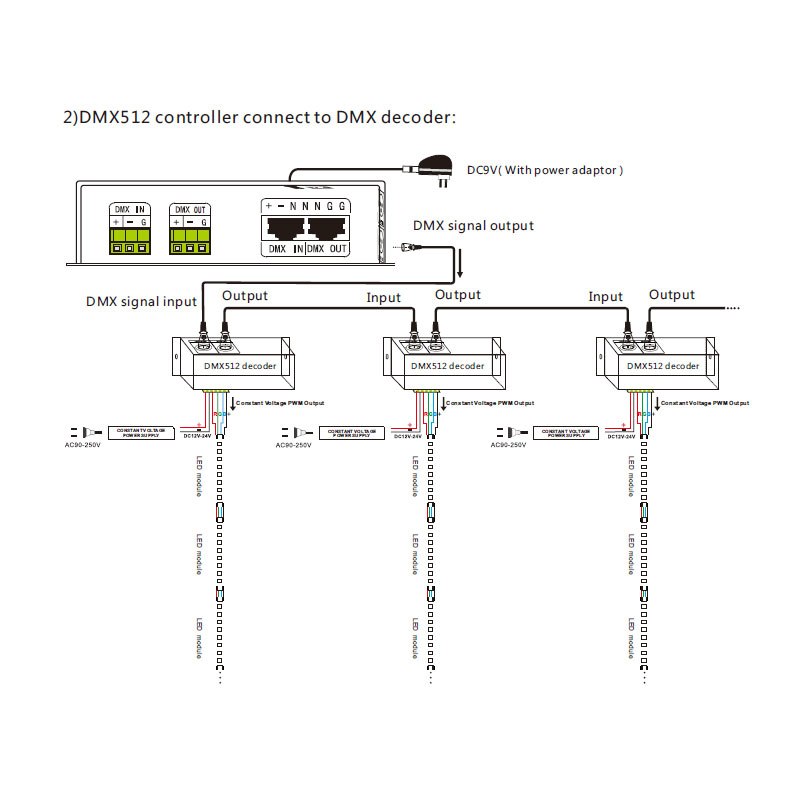

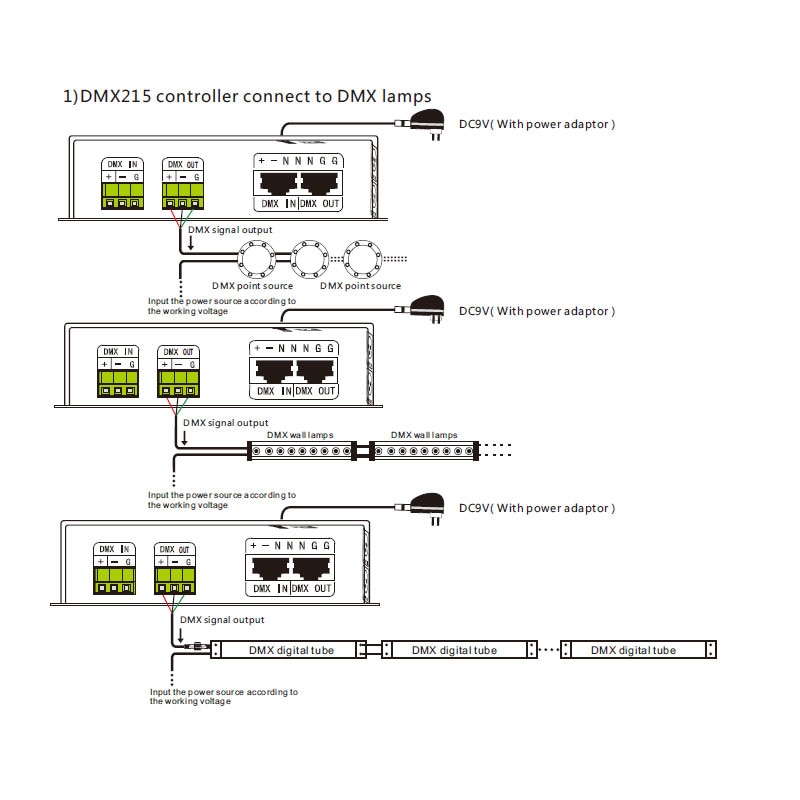

    Connction Diagram

    124125
