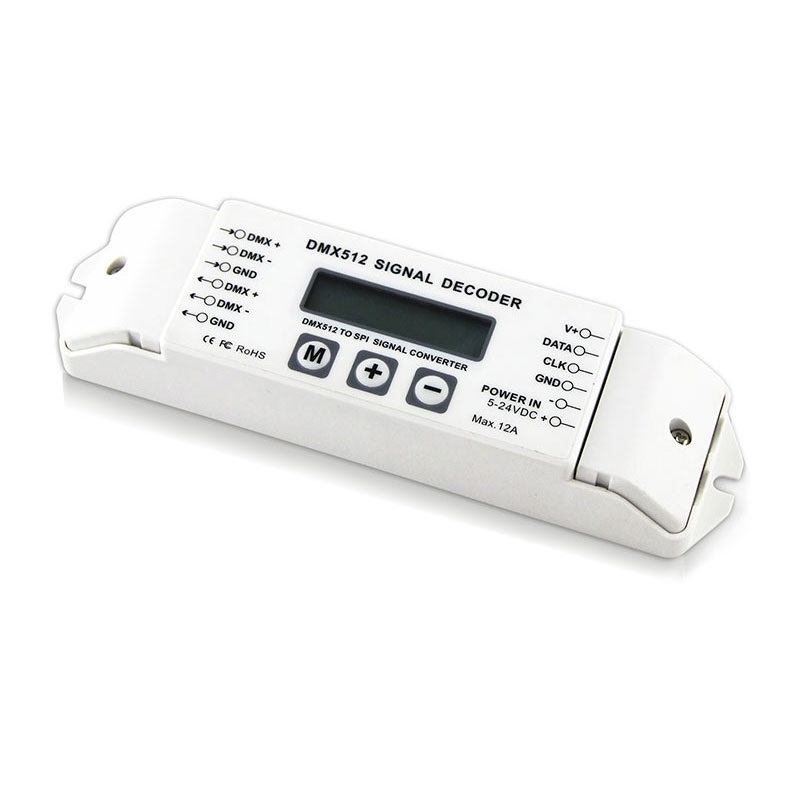

DC5V-24V Dream Color IC DMX512 Data Decoder Controller for LED Lamps

Features:

• Automatically adapts input voltage DC5V-24V.

• Input standard DMX512 protocol.

• Adapts LCD display, user friendly

• Support various LED dream color driving ICs.

• Support DMX master mode or slave mode

• Over current fuse protection at output port, Wrong wiring protection at DMX input port.

Product Parameter:

• Mode : DMX512 DATA Decoder

• Input power : DC5V-DC24V

• Input signal : DMX512/1990

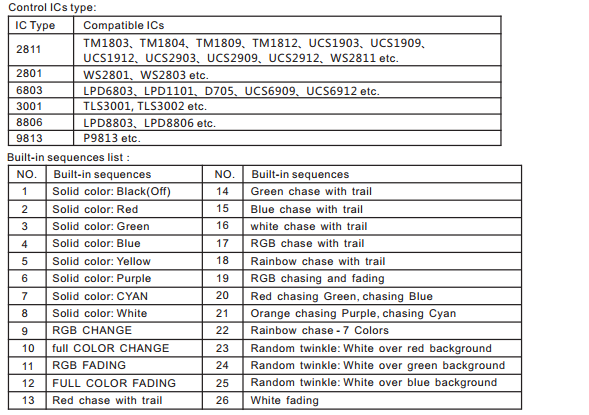

• Output signal : 6803/8806/2811/2801/3001/9813 selectable

• Driving channel : 510 Channels

• Control Pixel : 170

• Weight (G.W) : 180g

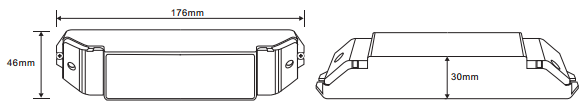

Dimension:

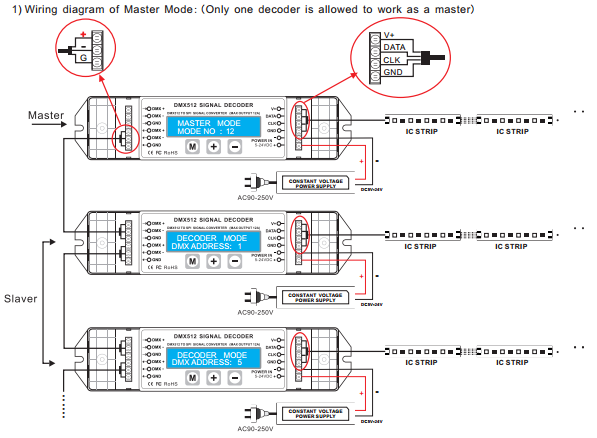

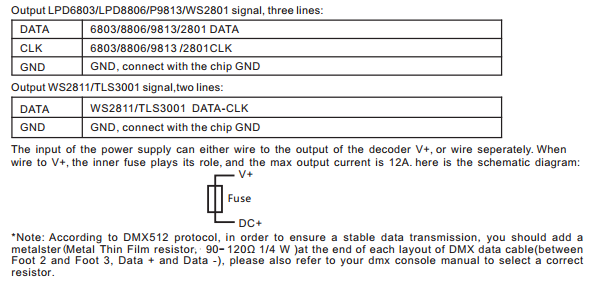

Conjunction Diagram:

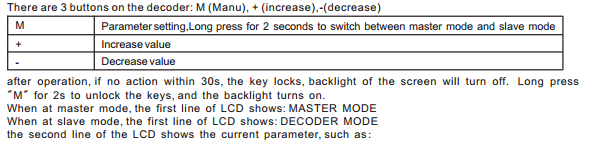

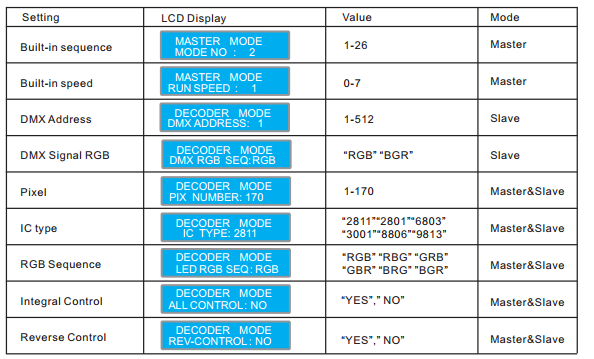

Operating instruction:
