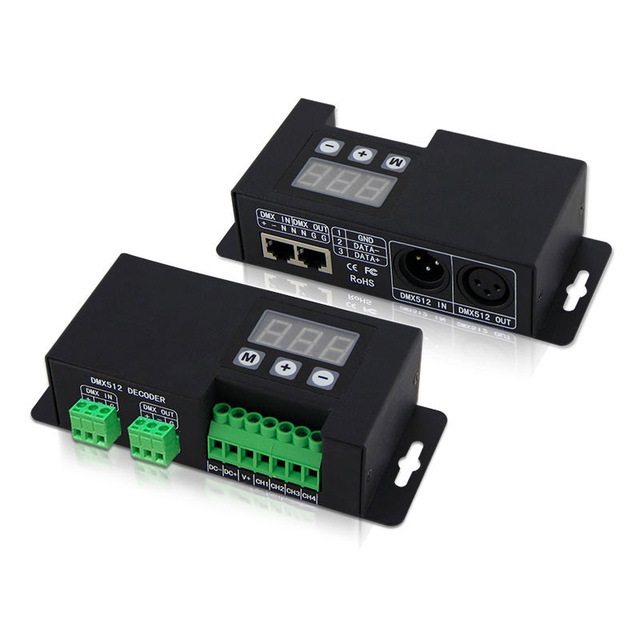

DC12V-24V 4 Channel RGB LED Controller DMX512 Decoder&Driver for LED Strip Module
Categories :
DMX controllerSKU :
1920193Summary:
Constant voltage DMX512 decoder which is developed only for constant voltage LED lamps. It adopted advanced micro-computer control technology to transfer standard DMX512/1990 signal to PWM signal. User can choose 1-4 output channels, 4096 grey scales, multiple DMX512 signal interface.
Specifications:
Input voltage | DC12V~DC24V |
Max load current | RGB:4Ax3CH/W:12Ax1CH |
Max output power | RGB:48Wx3CH/W:144W(12V), RGB:96Wx3CH/W:288W(24V) |
Input signal | DMX512/1990 |
Output signal | Constant Voltage PWMx4 |
Grey scale | 4096 levelsx4 |
Decode channel | 4CH |
DMX512 socket | XLR-3R port/RJ45 port/Terminal block |
Product size | L157*W65*H40mm |
Details:
Basic Features:

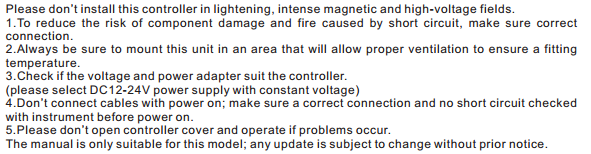

Safety Warnings:

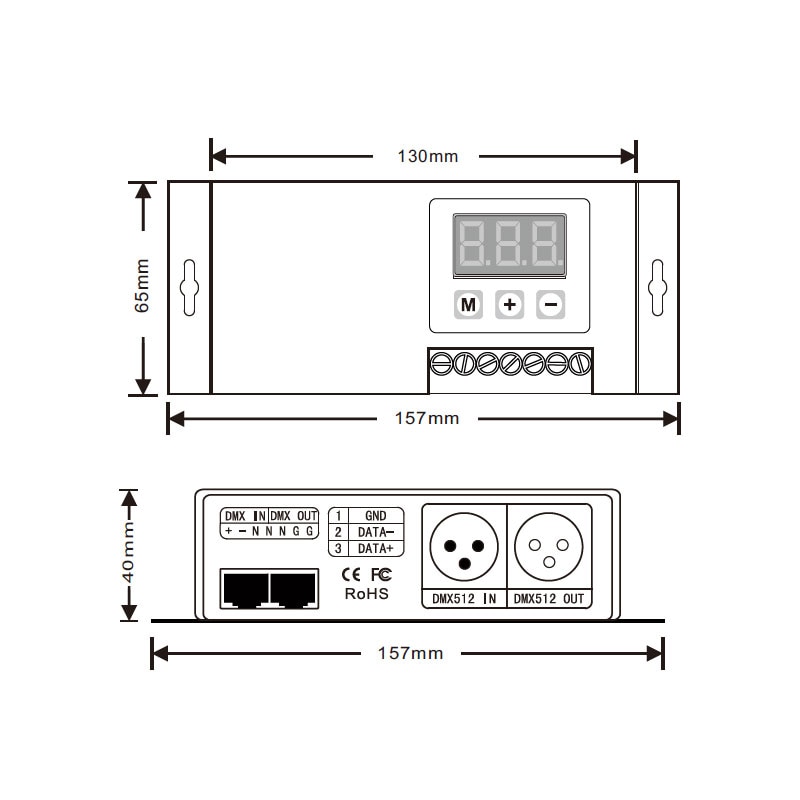

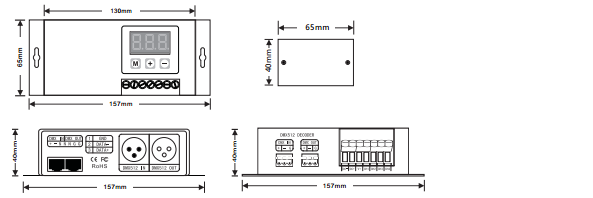

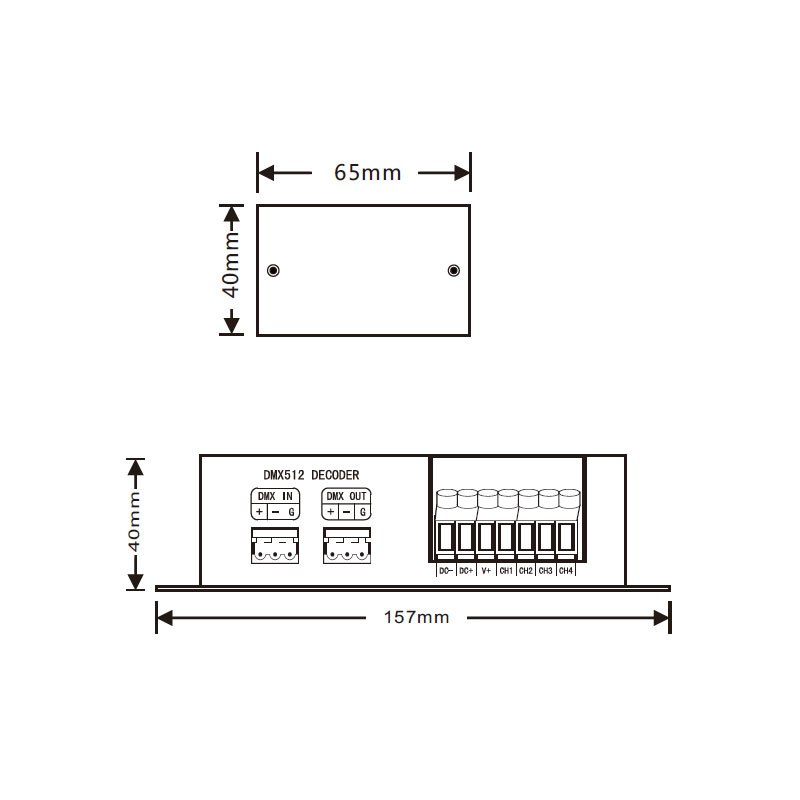

Dimension:

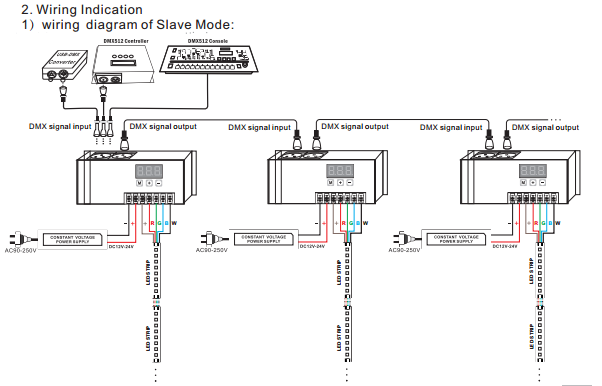

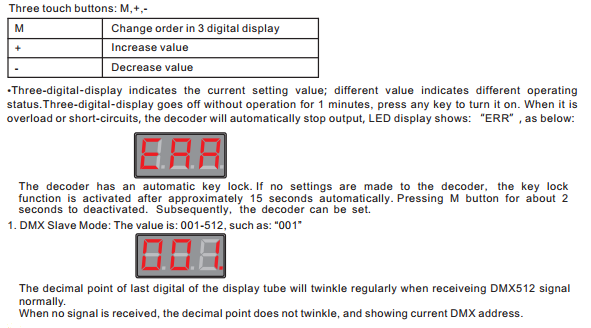

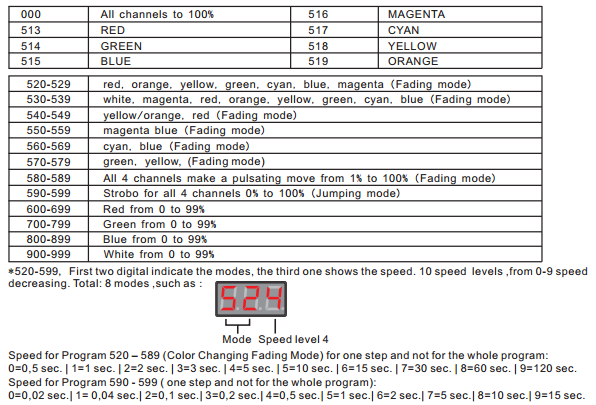

Operating instruction:

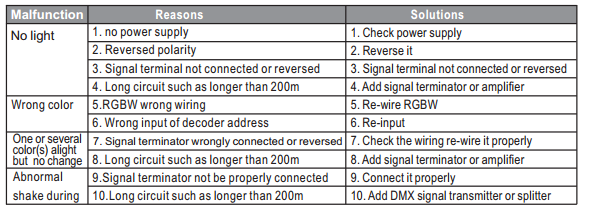

Exception handles:

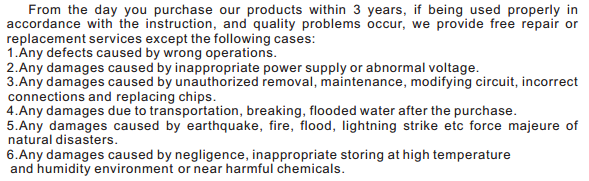

After-sales:
