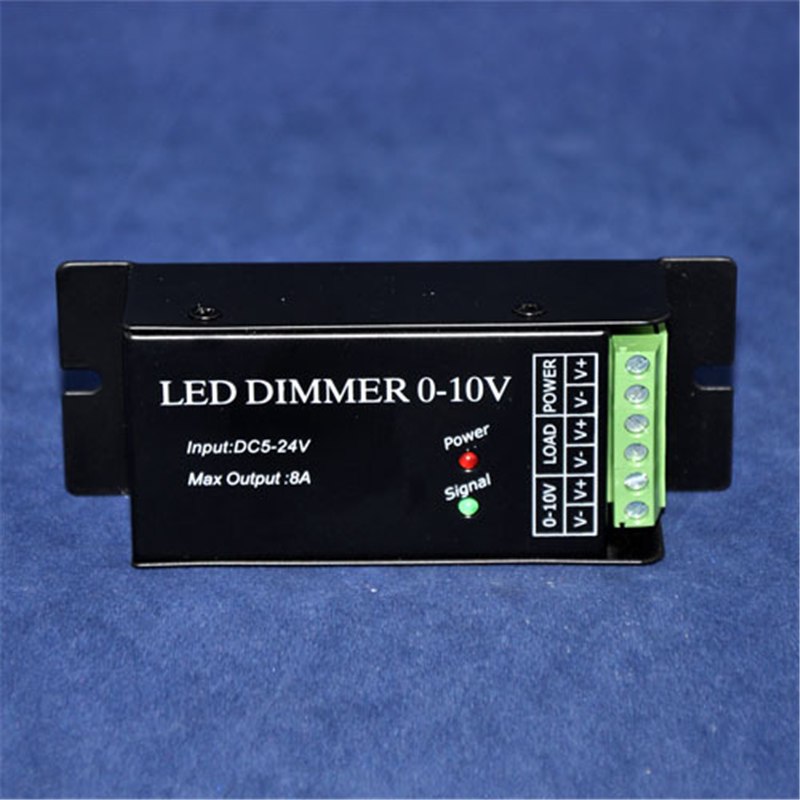

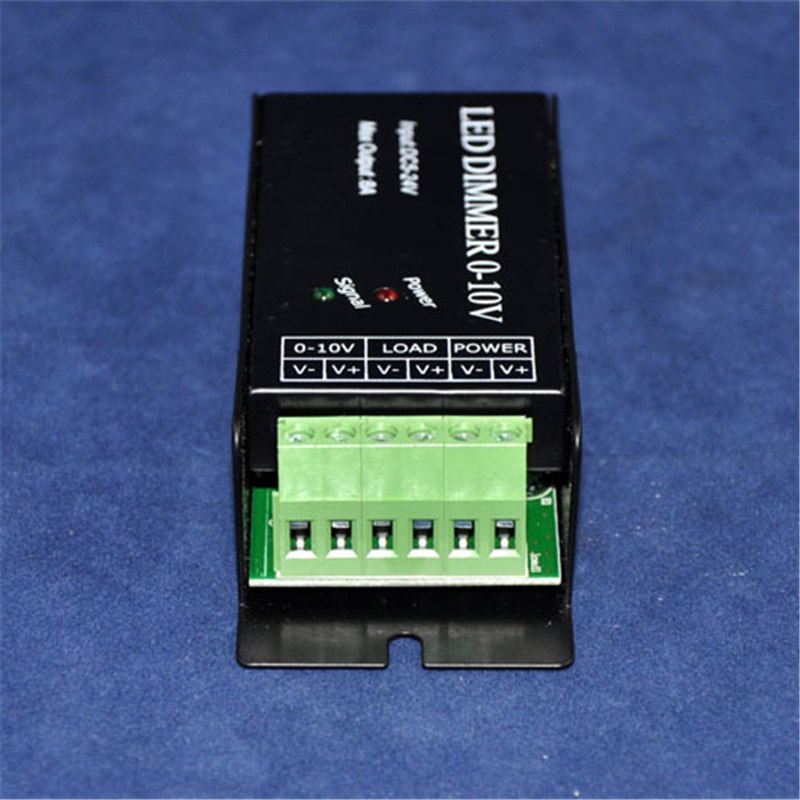

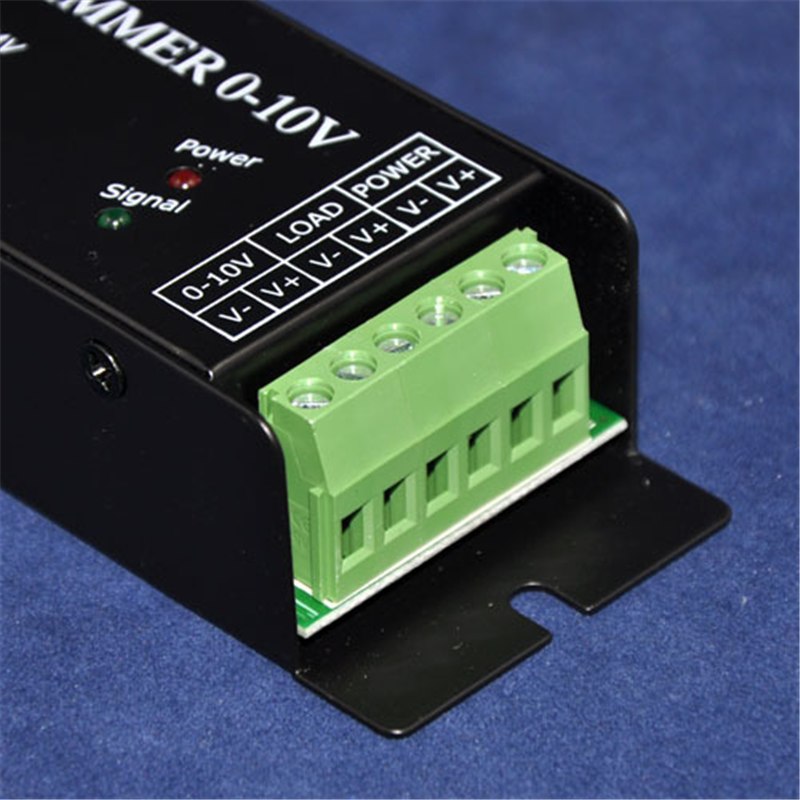

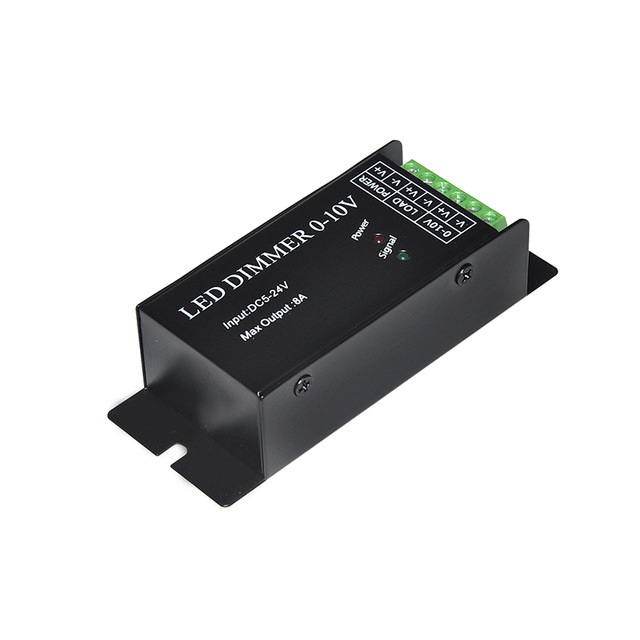

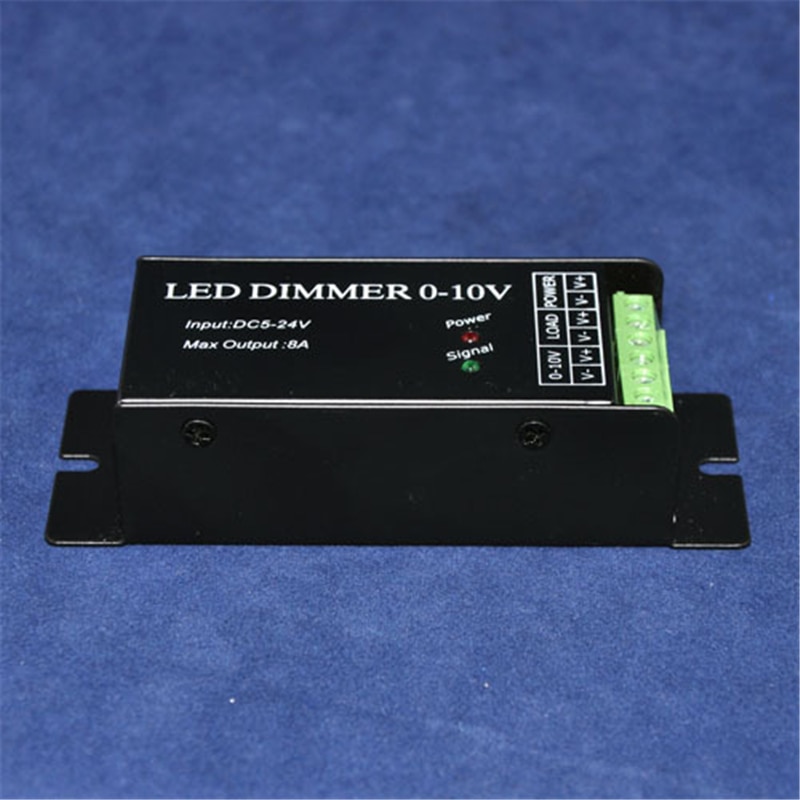

0-10V Voltage Adjust Dimmer input 5-24V 8A Max Output

Technical parameters

• Working temperature:-20-60 degreen

• Supply voltage: DC5-24V

• Input:0-10v dimmer signal

• Output current : ≤8A

• Static power: : <1W

• Output power:  12V<96W,  24V<192 W

• Output: 1 channel

• Connect mode: common anode

• Net weight: 112g    Gross weight: 135g

• Size: 108*42*27mm

• Package size: 110*50*40mm

Function

• This dimmer have small sharp, through input 0-10V analog singnal to control load output, dimmer provide 0-10V port, it can external input 0-10V dimming, and also can connect potentiometer to dimming; The dimmer output signal adopt most advanced PWM digital brightness adjustment technology, can control a variety of lamp whose sourse of light is LED. For instance, point sourse of light, flexible led strip, wall washer lamp, glass curtain wall light and so on.

Package included:

• 1 * Led Dimemr(input 0-10V)
