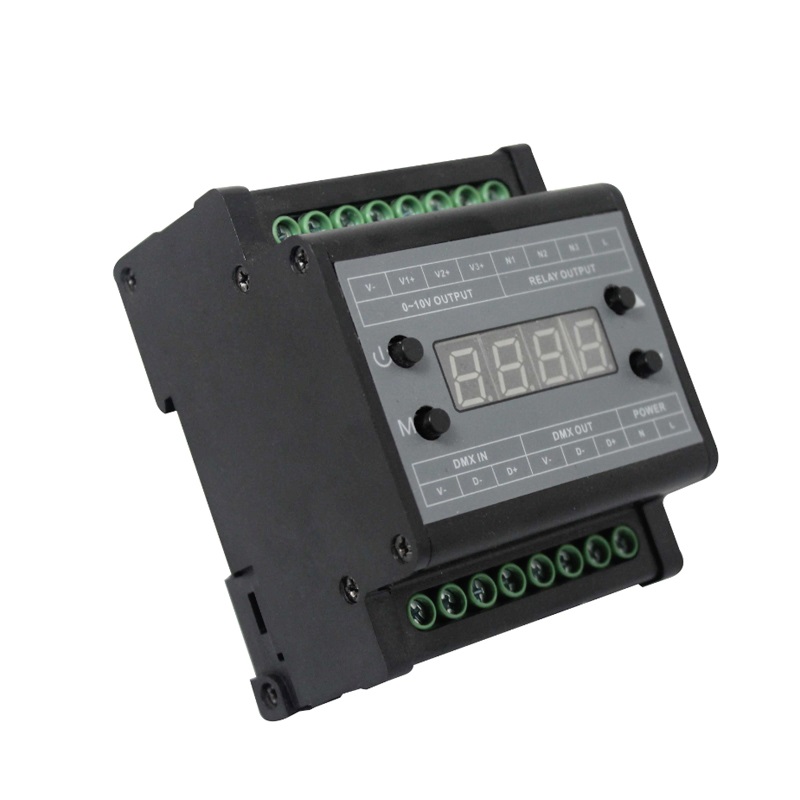

High Voltage AC90-240V 3 Channel LED DMX Output 0-10V Dimmer
Categories :
0-10V LED ControllerSKU :
1820139
100% original guarantee
Return within 30days
Worldwide Fast delivery
Summary:
DMX 0-10V dimmer adopt industrial grade advanced computer control chip, the shell adopt guide rail type, suitable for industrial environment; Increase 3 channel relay power supply output, as 3 channel 0-10V power supply input, the dimming effect is better. Used to control the lamps and lanterns which connect with 0-10V power supply, have convenient wiring, easy to use such advantages; According to customer's actual demand can realize the dimming function.
Specifications:
Supply voltage | AC90-240V(50Hz/60Hz) |
Input | 0-10V |
Output | 3 channels |
Standby power consumption | <3<<<W |
0-10V output current | <15mA(each channel) |
Relay maximum output power | <200W(each channel) |
External dimension | L87 * W71.7 * H53.7 mm |
Package size | L110 * W80 * H65 mm |
Net weight & Gross weight | 155g &210g |
External dimension:
Interface instruction:
0-10V OUTPUT: 3 channel 0-10V dimming signal output interface, each channel maximum current is15mA.
RELAY OUTPUT: 3 channel relay output interface, output voltage range is 90-240VAC, as power supply input of 0-10V dimming power supply.
DMXIN: DMX signal input interface.
DMXOUT: DMX signal output interface.
POWER: Power supply input interface, input voltage range is 90-240VAC.
Typical Application:
