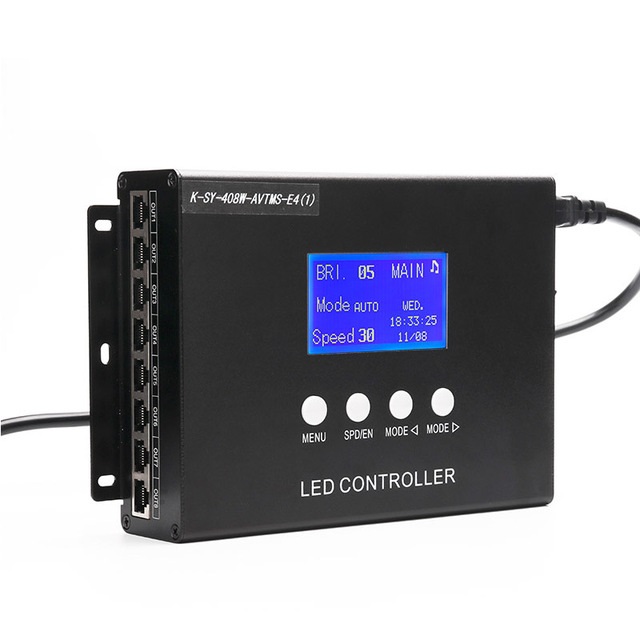

K-SY-408 Support LED Pixel Light Time Tunnel Controller with Voice and Music Control Function

Specifications:

• Input Voltage:AC100-240v

• Data input: SD card(16G)

• Power: <=5W

• Size: 220*142*45 mm

• Weight: 1.4kg

Application:

• Big pixel light project, like KTV light, building light, Christmas decoration, add wall, etc.

• Can display pics, video, text, PC desktop syndronize, time tunnel ...

Support IC：

• 1 wire IC ：TM1803、TM1804、TM1809、TM1812、UCS1903、UCS1909、UCS1912、UCS2912、WS2811、BS0901 etc.

• 3 wire IC: DMX512、UCS512、LPD6803、LPD8803、LPD8806、D705A、UCS6909、UCS6912、P9813 etc.

• 4 wire IC: DM134/135、IBM5024/5026、3130、TT6016、595 etc.

Package included:

1 x main K-SY-408 controller

1 x power cable

1 x AUX cable

1 x SD card (8G or 16G will be shipped randomly)

5 x RJ45 cable

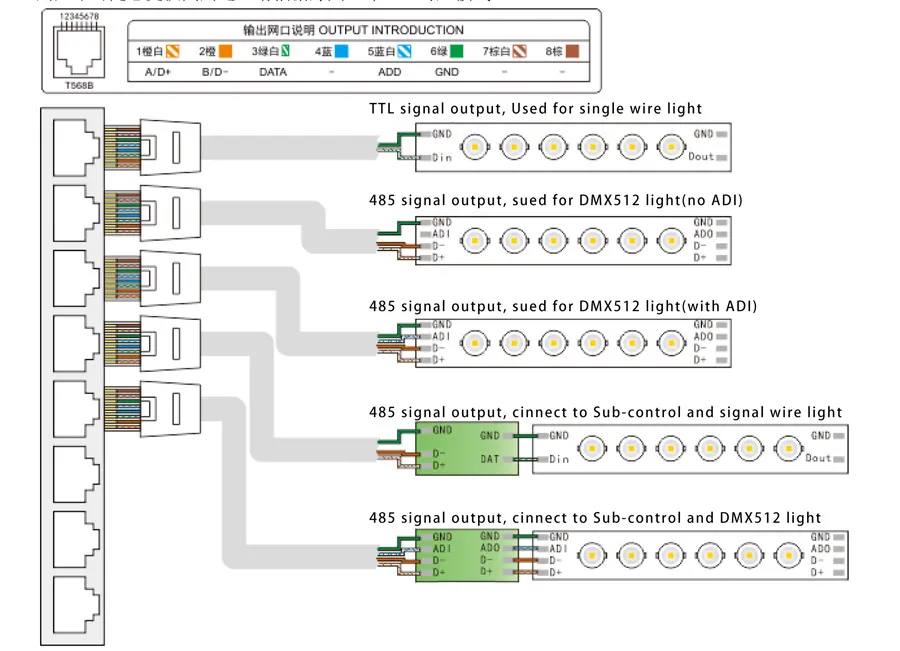

Connection：
