3 Channel 8A/CH LED Dimming Controller for Single Color LED Strip Light
Categories :
LED DimmersSKU :
1820064
100% original guarantee
Return within 30days
Worldwide Fast delivery
Summary:
LED intelligent dimming controller is dedicated to control single color changes (common anode), adopted the most advanced PWM (Pulse-width modulation) digital brightness-adjusting technology at present. Extensively used in all kinds of LED lighting decoration. It can be used together with our power repeater to achieve unlimited output power repeating. With RF remote, it can be controlled in 30-60 meters.
Specifications:
Model | No RF remote | With RF remote |
Input voltage | DC5V-DC24V | DC12V~DC24V |
Max load current | 8A/CH*3 | 8A/CH*3 |
Max output power | 120W(5V), 290W(12V), 560W(24V) | 290W(12V), 560W(24V) |
Scale levels | 4096 levelsx3 | 4096 levelsx3 |
Remote control distance | None | RF, 60m without obstacles, 30m with obstacles |
Product size | L211*W40*H30mm | L211*W40*H30mm |
Details:
Basic Features:

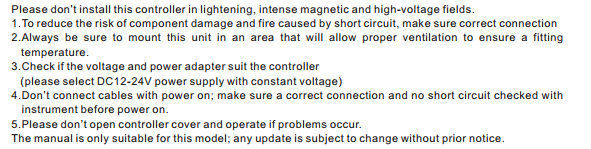

Safety Warnings:

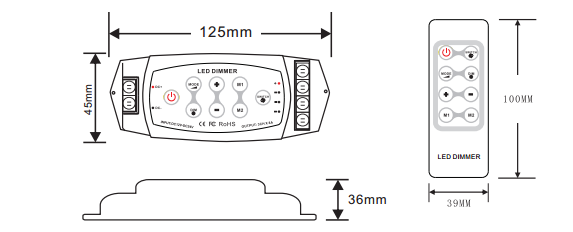

Dimension:

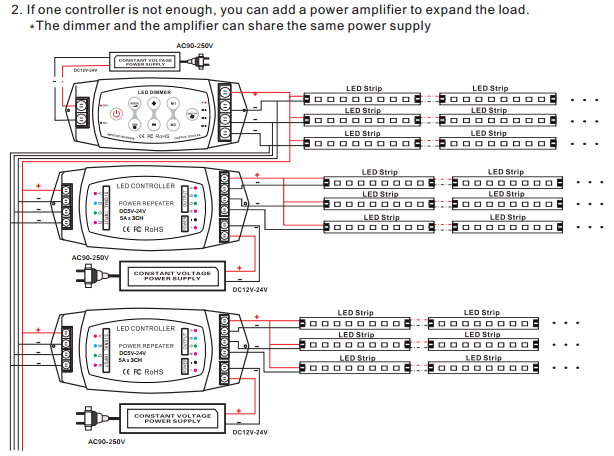

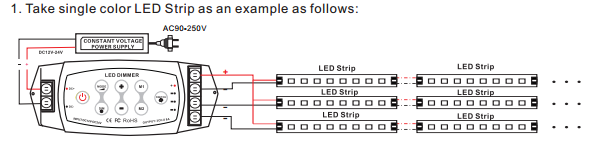

Conjunction Diagram:

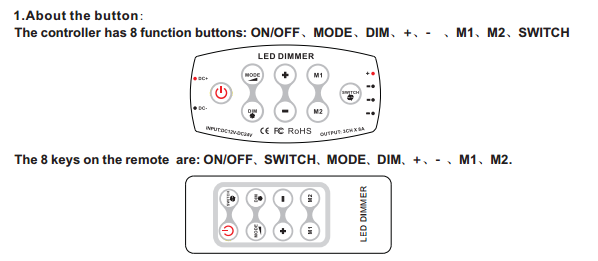

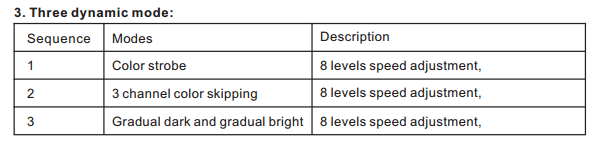

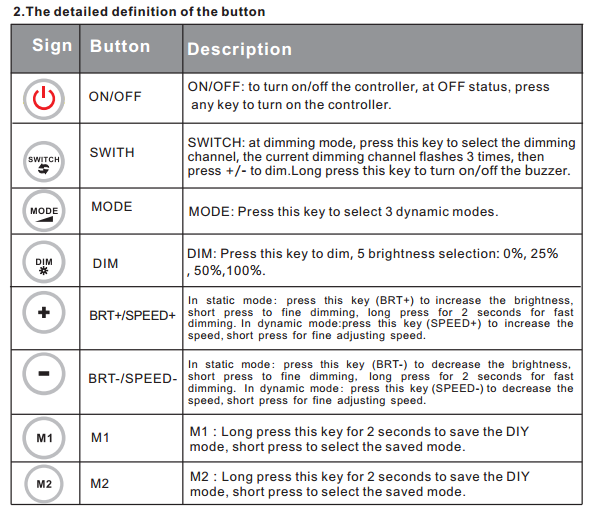

Operating instruction:

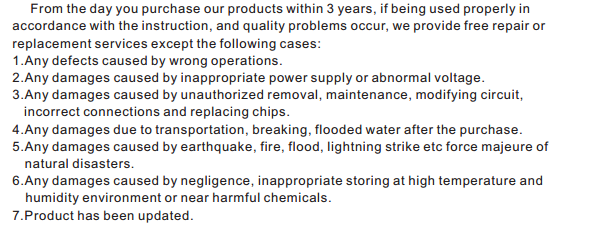

After-sales:
Kindly reminder:

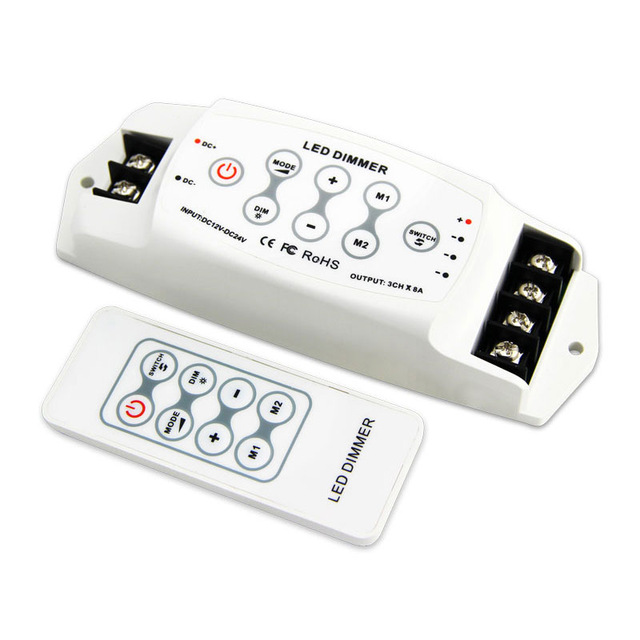

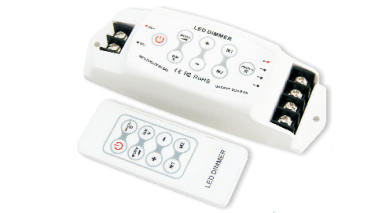

Photo for Product:
