DC12-24V LED Lamp Dimmer / LED Strip Light Dimmer / Brightness Adjustable

https://www.qskj.cc/web/image/product.template/2085/image_1920?unique=fb4d6cf
(0 review)

5.02 5.0200000000000005 USD 5.02

¥ 36.30

Not Available For Sale


    This combination does not exist.


    SKU :
    1819937
    Share :
    100% original guarantee
    Return within 30days
    Worldwide Fast delivery

    Overview :

    This product is the accessory product for the LED lighting controlling, used to control a variety of LED lighting as the light source brightness, such as: LED soft light strip, LED rigid light strip, ,Dim Led lamp,LED modules and so on. With manual adjustment knob to adjust the lighting brightness, wiring convenient, simple and intuitive.

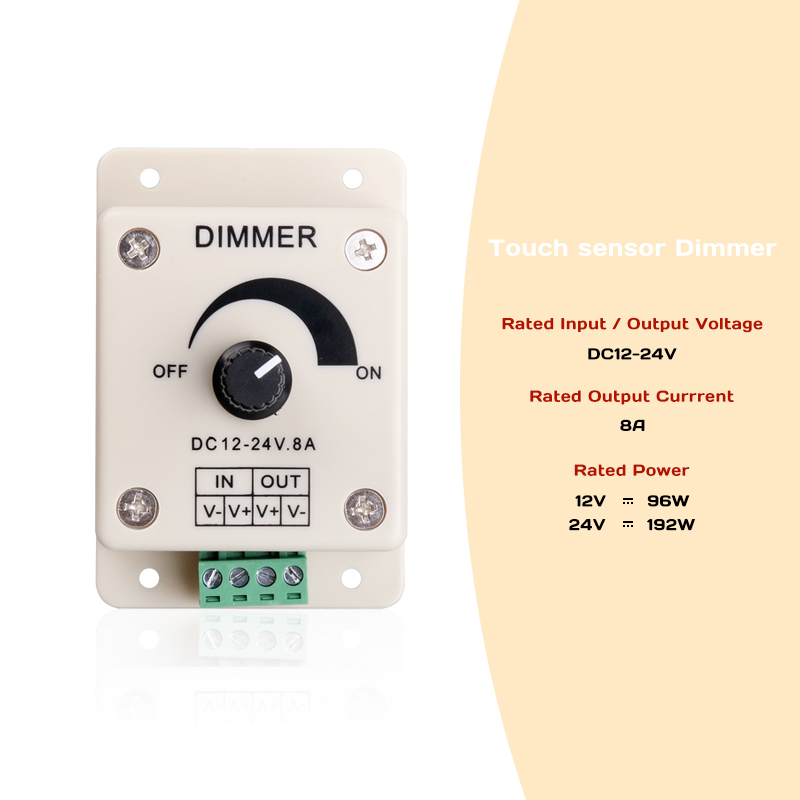

    Specifications:

    • Voltage:DC12V-24V

    • Current:8A *1CH

    • Power Dissipation:<0.5W

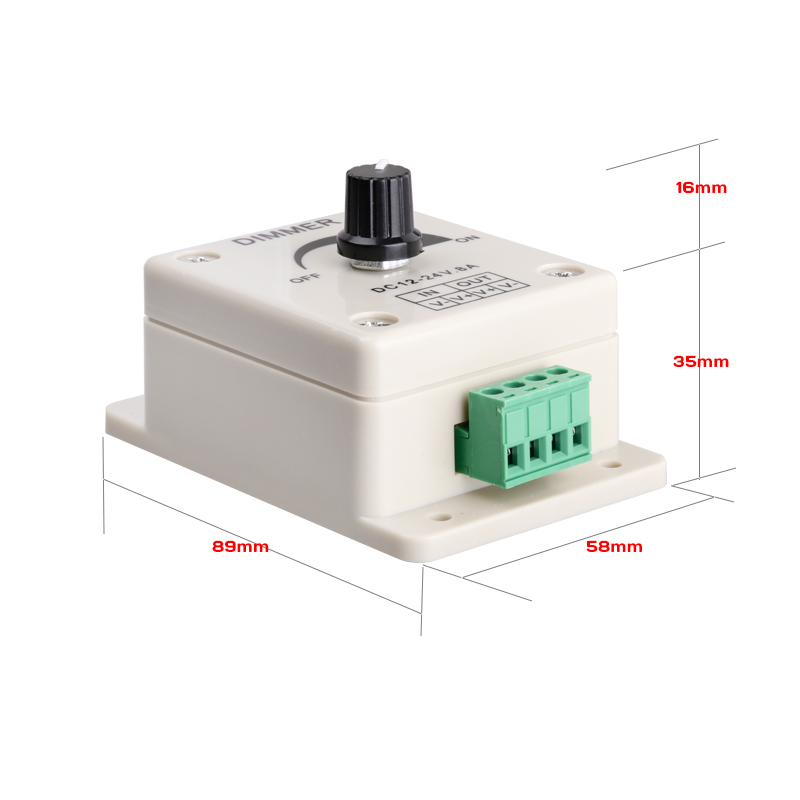

    • Size: 95*60*5.5 mm

    • Work Temperature:-20~+60degree

    • Power output: 12V-96 W,24V-192W

    Application:

    • The input voltage of this controller should be follow the specifications, other high voltage would most probably destroy it

    • The 4wires coming out of the controller can’t be incorrectly interconnected or short circuit could occur

    • Connect the wires of the controller and LED fittings as per the instruction

    • Don’t peel off the label on the controller in case any indication information will be missed

    • The standard warranty is one yeas Our company won’t be responsible for any damage of the Controller due to any wrong operation.

    Package included:

    1 x Led Dimmer Controller

    No Specifications
