Introduction:

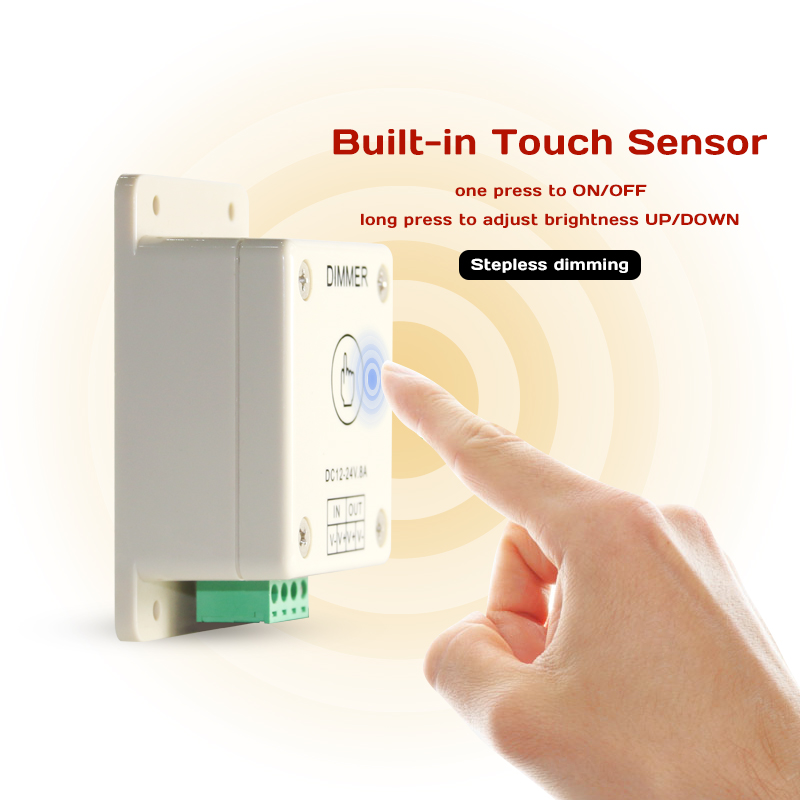

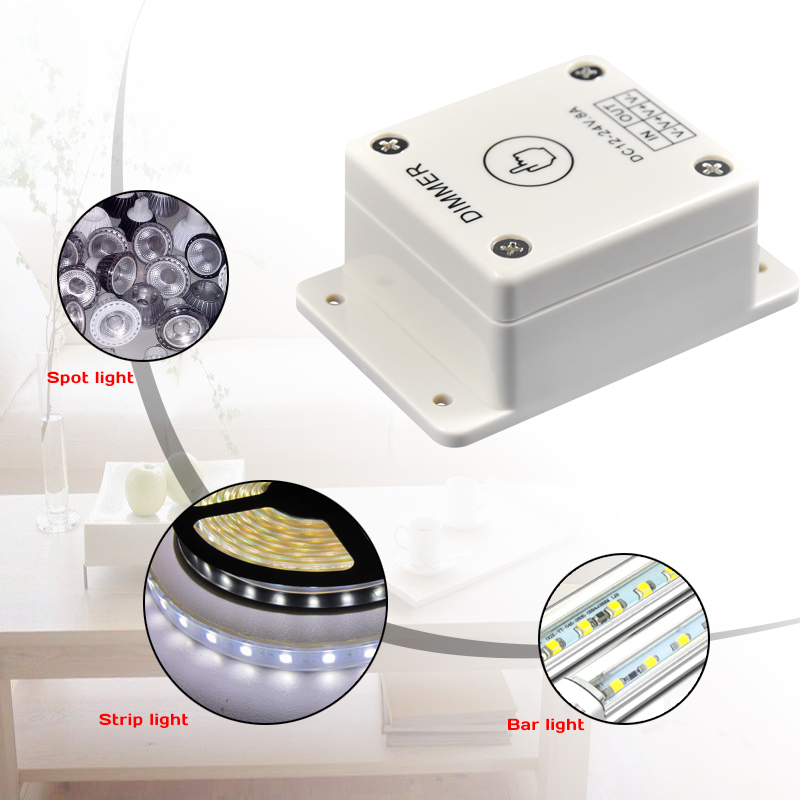

This product is a novel LED controller developed by our company which can realize multistage touch dimmer. Adopting advanced touch design, through the panel controller combined with touch remote way, realize flexible control. Touch remote has good performance, beautiful, fashion, easy to use. This product suit for every occasions, such as: point light source, flexible strip, wall washer lamp, glass curtain wall light and such lighting controller.

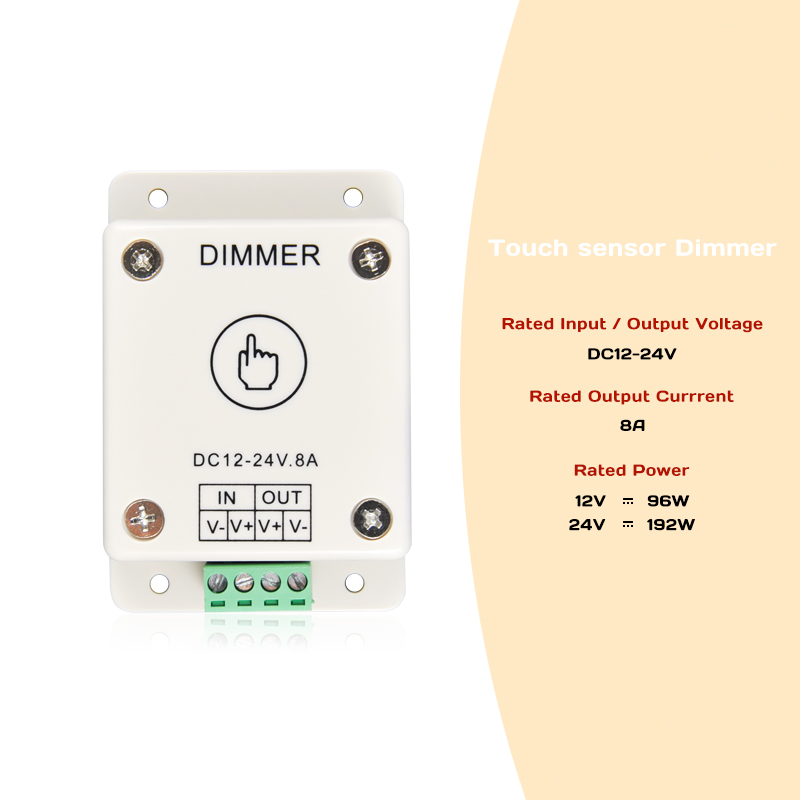

Specifications:
Supply voltage: DC12V, DC24V（order Indicate required voltage）

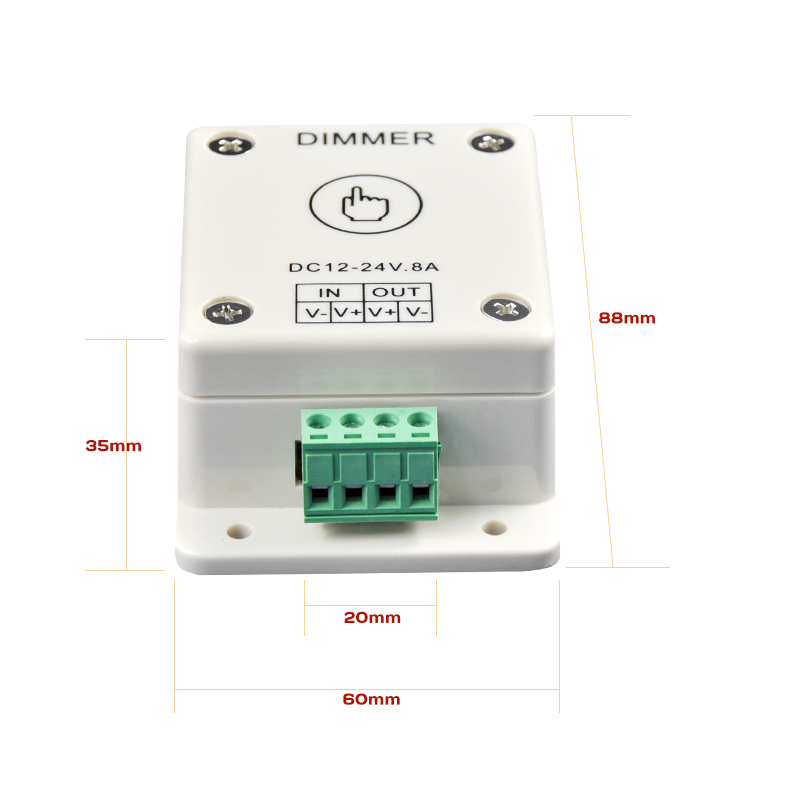

Size: 89*59*35 mm
Package size: 96*64*65mm
Net weight: 55g; Gross weight: 80g
Output: 1 channel
Output current : <8A
Static power: : <1W
Output power: 12V< 96W, 24V<192 W
Function: can realize stepless dimming
Application:
The input voltage of this controller should be follow the specifications, other high voltage would most probably destroy it
The 4wires coming out of the controller can’t be incorrectly interconnected or short circuit could occur
Connect the wires of the controller and LED fittings as per the instruction
Don’t peel off the label on the controller in case any indication information will be missed
The standard warranty is one yeas Our company won’t be responsible for any damage of the Controller due to any wrong operation.
Package content:
1x single color LED touch dimmer controller
